E L A N H O M E S Y S T E M S
Page 30 © ELAN Home Systems 2009 • All rights reserved.
D12 INSTALLATION MANUAL
ALL
ON
+12VDC
TRIGGER OUT
3.5mm Interconnect
Cable
ALL
ON
+12VDC
TRIGGER OUT

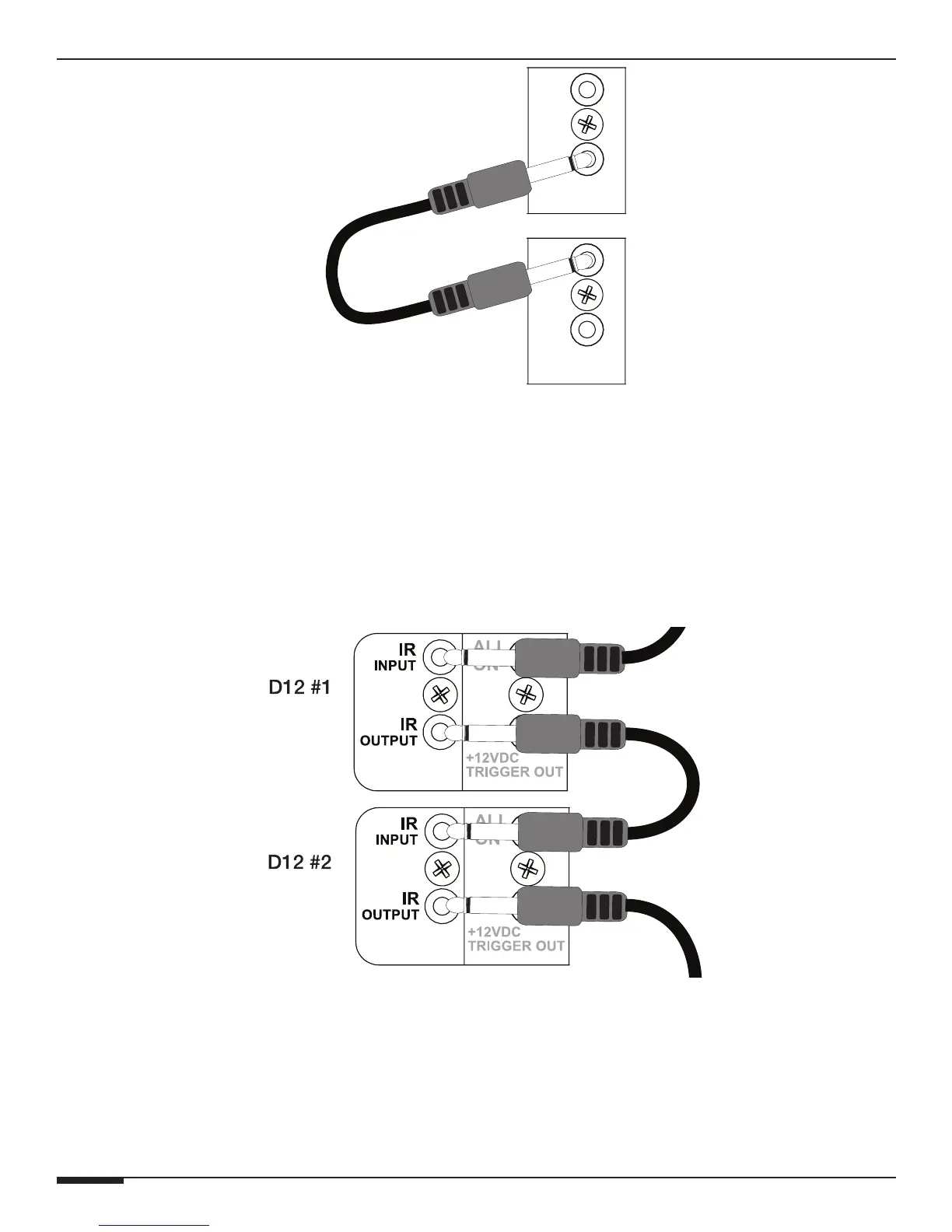

Output Trigger Connection
IR LOOP INPUT/OUTPUT Connections
The 3.5mm mono IR Loop is located beside the ALL ON trigger. This loop allows IR commands to be sent to each
D12 amplifier that is connected. Before the amplifier will respond to IR Commands, the D12 amplifier must be set to
ELAN Mode.
See "Operating Mode" on page 13.
IR Loop Connection
