ELAN HC6/HC12 INSTALLATION MANUAL
© ELAN 2010 | All rights reserved.
Page 24

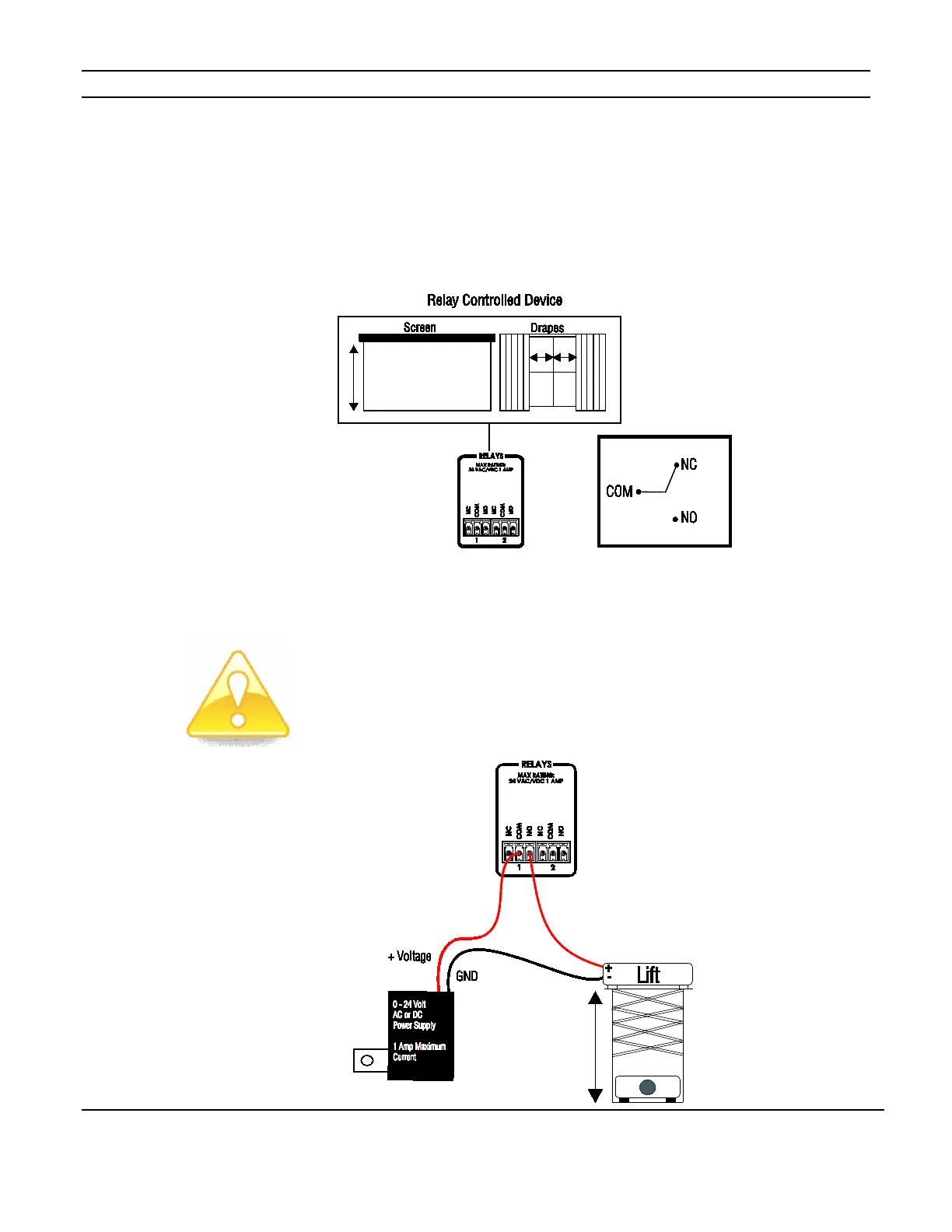

Relay Connections
The HC6’s 2 relays and the HC12’s 4 relays can be programmed to provide automated
events such as lift operation, screen operation, and drapery control. Connections include
COMMON, NORMALLY CLOSED and NORMALLY OPEN. See Figure 3-5.
Figure 3-5: Relay Connections
If a voltage trigger is required, an external power supply can be connected to the
HC6/HC12’s relays as shown in Figure 3-6.
The relays are rated for a maximum of 24 Volts, AC or DC and a maximum of one amp of
current. Do not connect to 120 VAC or 240 VAC house line wiring!
Figure 3-6: Relay Connections with Power Supply
