Rear Panel LEDs (Continued)
Ethernet Port
The Ethernet port has a green LED on the left and amber LED on the right. When the green
LED is illuminated it indicates that the System Controller is “Linked” (physically connected)
to the switch or router. The amber LED indicates Ethernet activity on the port. (Fig. 4-5)

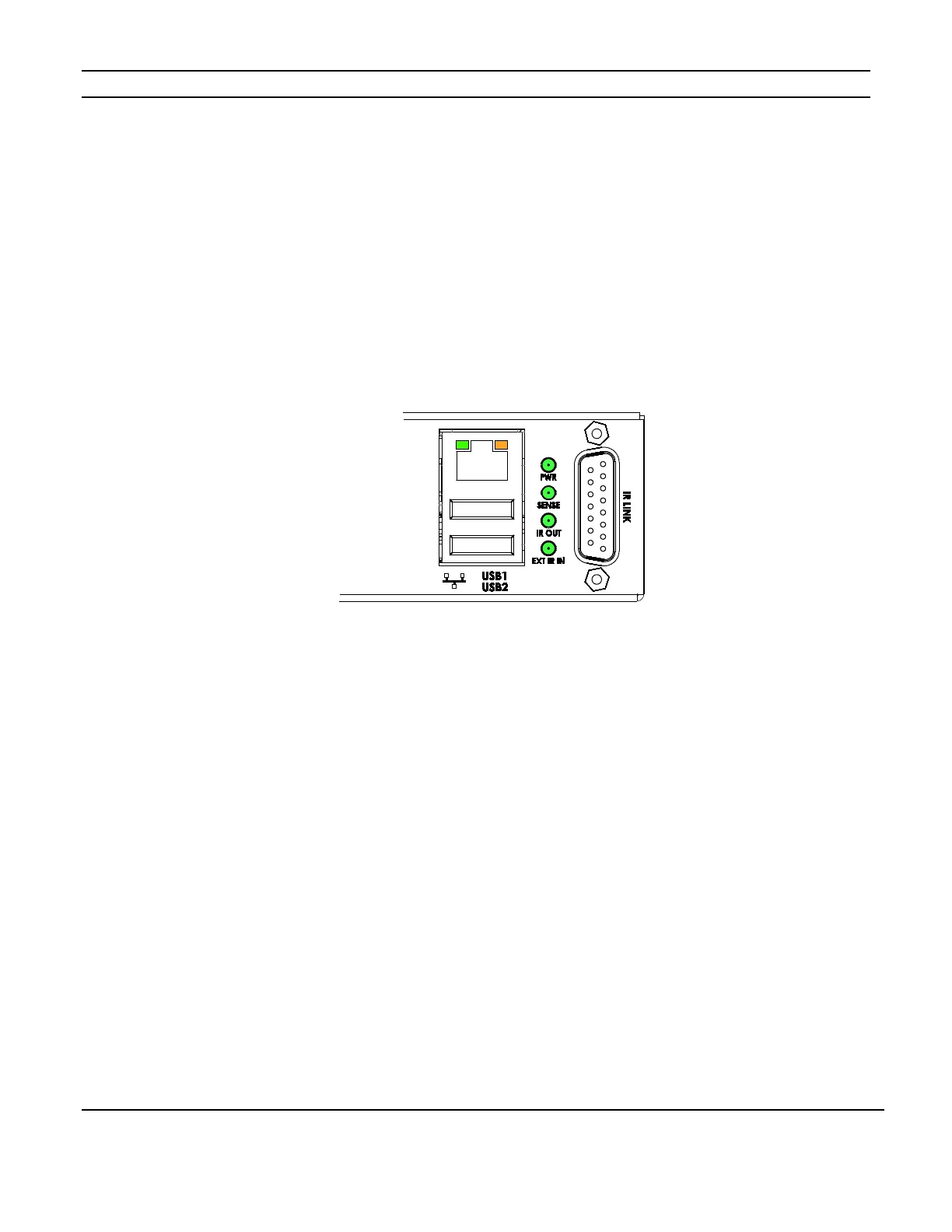

Figure 4-5: Ethernet Port Status LEDs
