Audio Output Connections
The Internal Player’s Audio Outputs connect to the Source Audio Inputs of the multi-room
controller or Home Theater System just like any analog audio source.
The two outputs are independent of each other and can be treated as two sources.

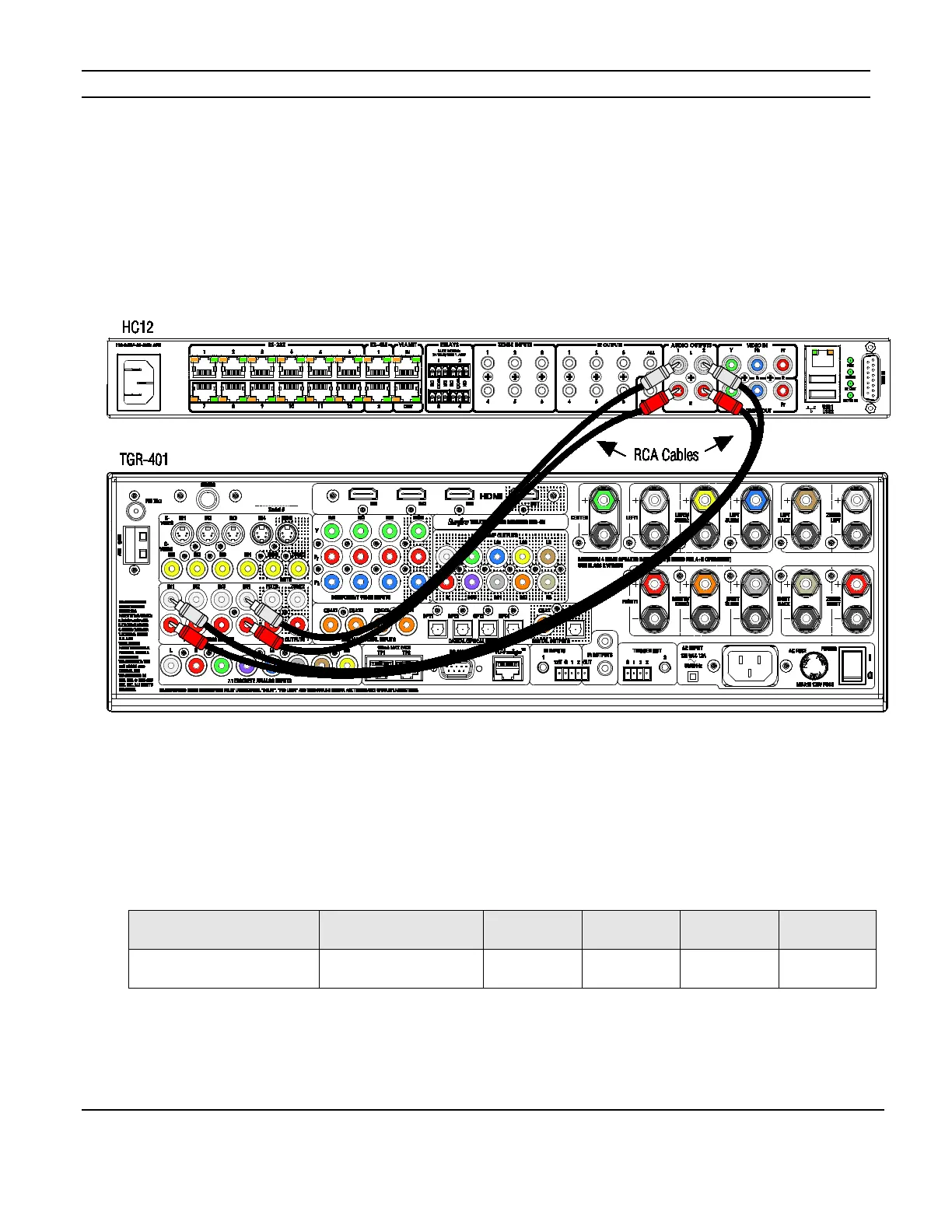

Connect using standard RCA cables as shown in Figure 3-11.
Figure 3-11: Audio Outputs
Internal Player Capacity
The 250GB internal hard-drive (HC12 only) can be used to store WAV and MP3 audio files
for playback using the Internal Player. Depending on the compression rate of the audio
files, the total storage capacity will vary. The table below provides a general guideline for
storage calculation.
Note: If images used for the picture viewer are also stored on this drive they will impact
the total storage capacity.
Both the HC6 and HC12 can use external NAS drives for file storage.
File Format WAV (Uncompressed) 320kbps 256kbps 192kbps 128kbps
Capacity in Hours 378 780 2085 2779 4169
