IR Link Connection
The IR Link is a DB15 connection that accommodates up to 12 IR outputs. The DB15
connection parallels the six 3.5mm mono IR ports and provides an additional six routable
IR outputs.
Do not connect IR emitters to the DB15 outputs. The DB15 IR signal output is 3VDC,
which will not drive an emitter.
When used with an ELAN Multi-Room Controller like the M86A or the S128P, the DB15 IR
Output connection from the HC6 or HC12 should be connected to the IR LINK connection
of the Multi-Room Controller as shown in Figure 3-15.
This connection allows source IR commands to be routed from the System Controller to
the Multi-Room Controller and then to IR emitters or 3.5mm cables connected to the
Source IR Outputs of the Multi-Room Controller.

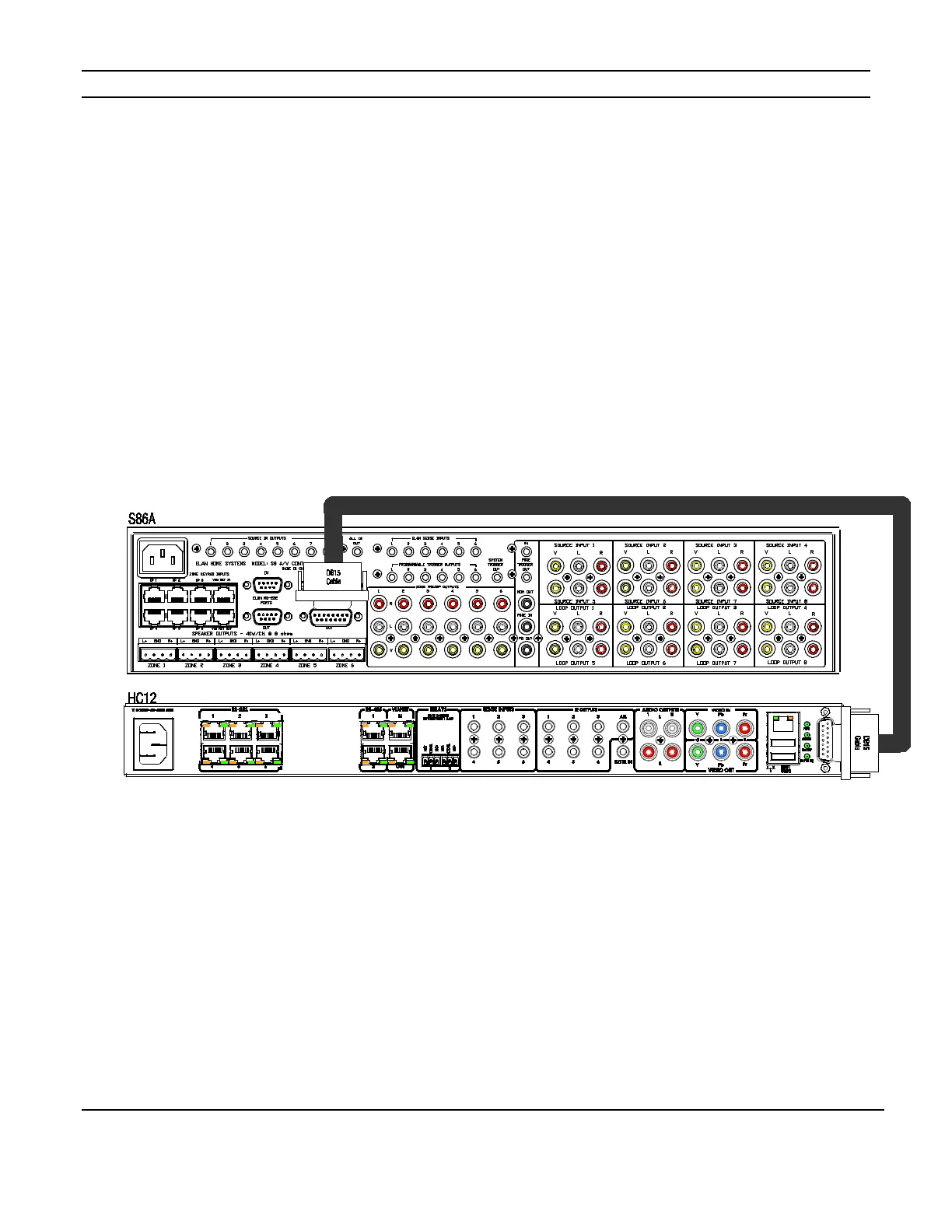

Figure 3-15: IR Link Connection
