Remove the pushbutton support from its seat
23.2.5 Analogue pressure switch
Remove the worktop (see relevant paragraph).

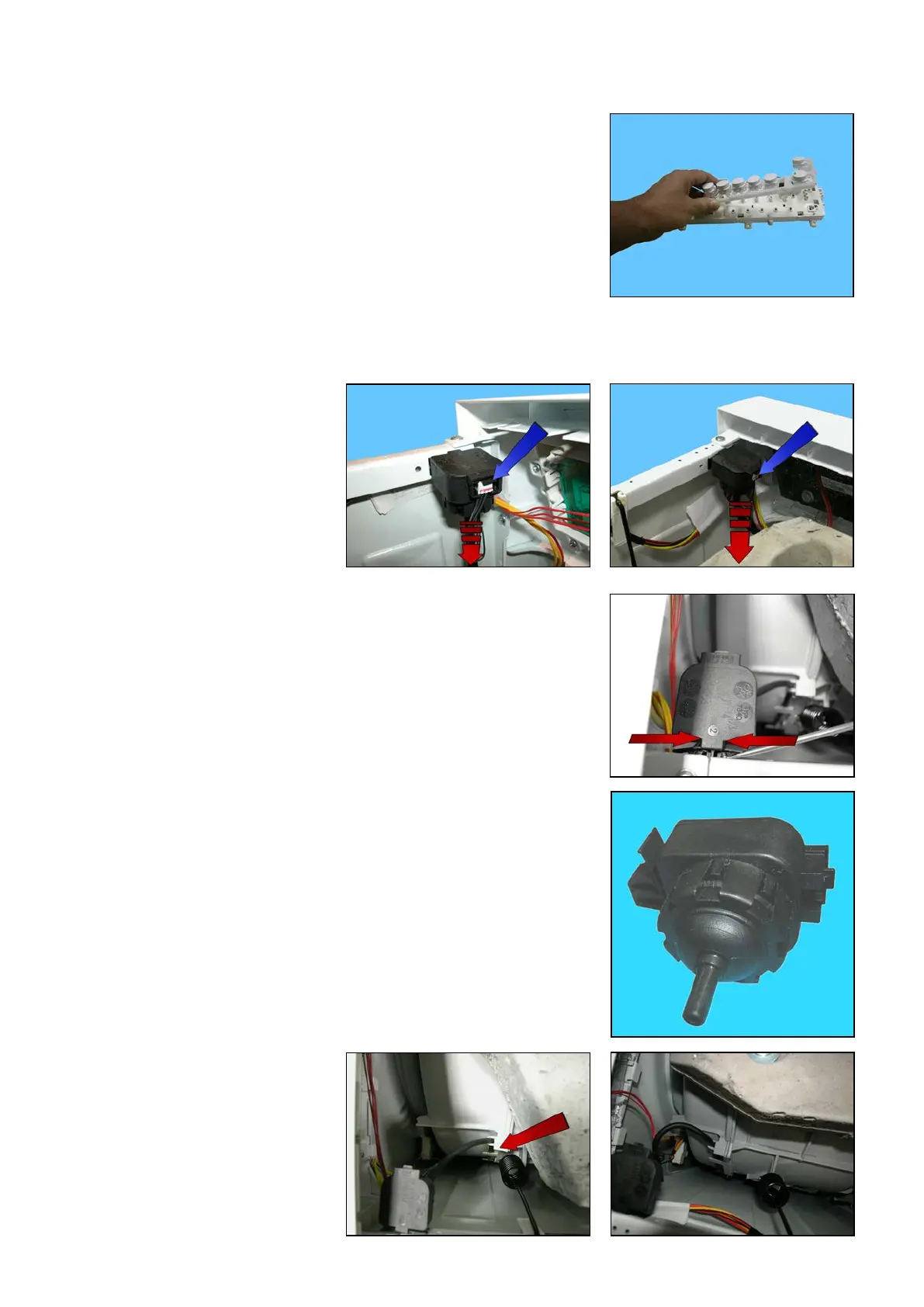

Remove the connector (blue
arrow).
Pull out the small pipe which
connects it to the pressure
chamber (red arrow).
Tighten the two tabs which secure it to the cabinet and remove it.
Analogue pressure.
When re-assembling the pressure
switch, position the pipe in the
appropriate stops around the tub
as shown in the figure to the side.
