5.2 Control panels
5.2.1 Styling
• Max. 9 touch push buttons
• 15 position programme selector
• 27 yellow LEDs + 1 red LED
• Digits made up of 22 LEDs
5.2.2 Display board

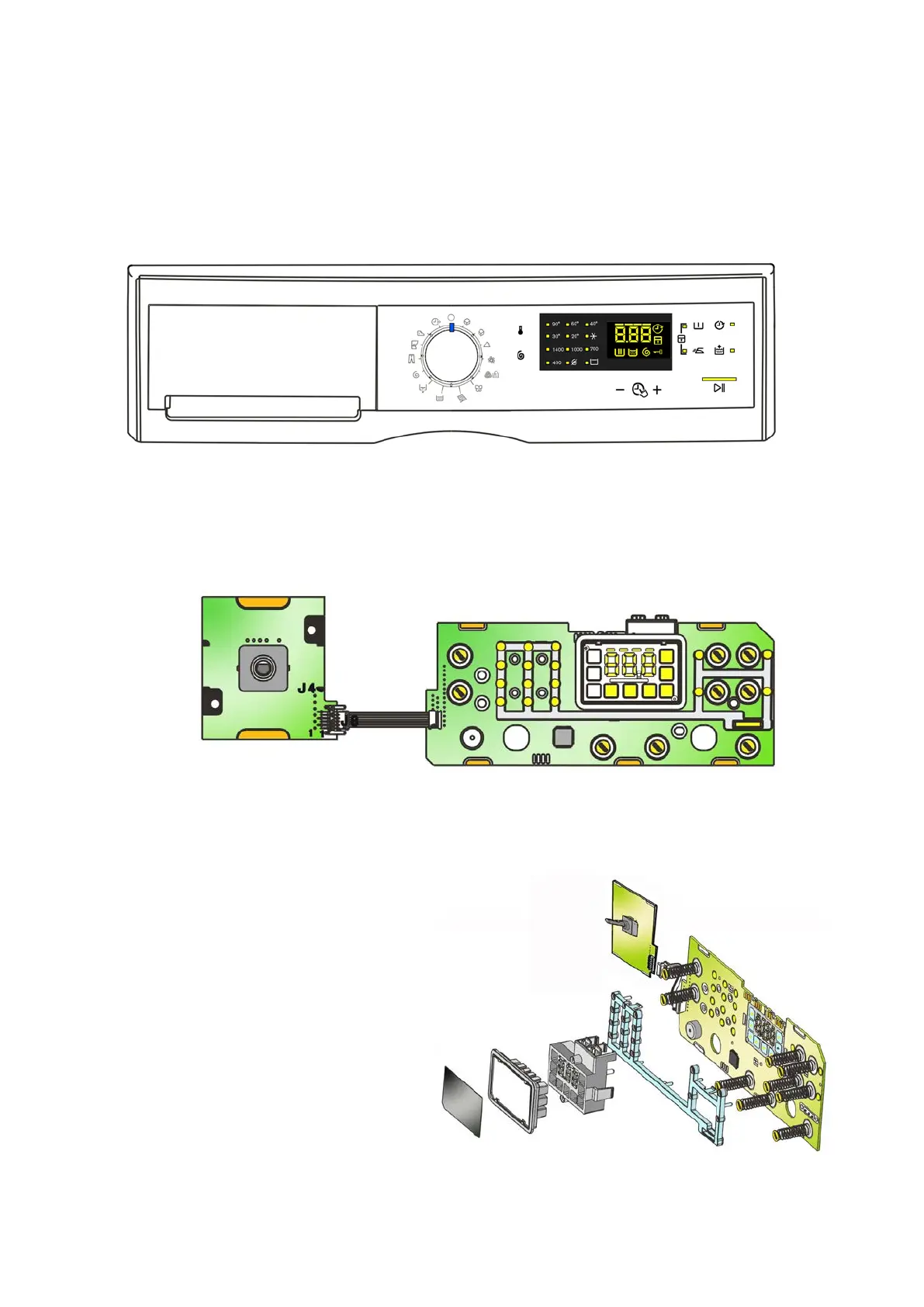

• Display board assembly, exploded view
1. Display board
2. Selector card with knob
3. Light divider
4. Digits light conveyor
5. Digits light diffuser
6. Silk-screen printed digital filter
1
2
3
4
5
6
