21 ELECTRICAL COMPONENTS
• When replacing any of the components, please refer to the code shown
in the list of spare parts relating to the appliance.

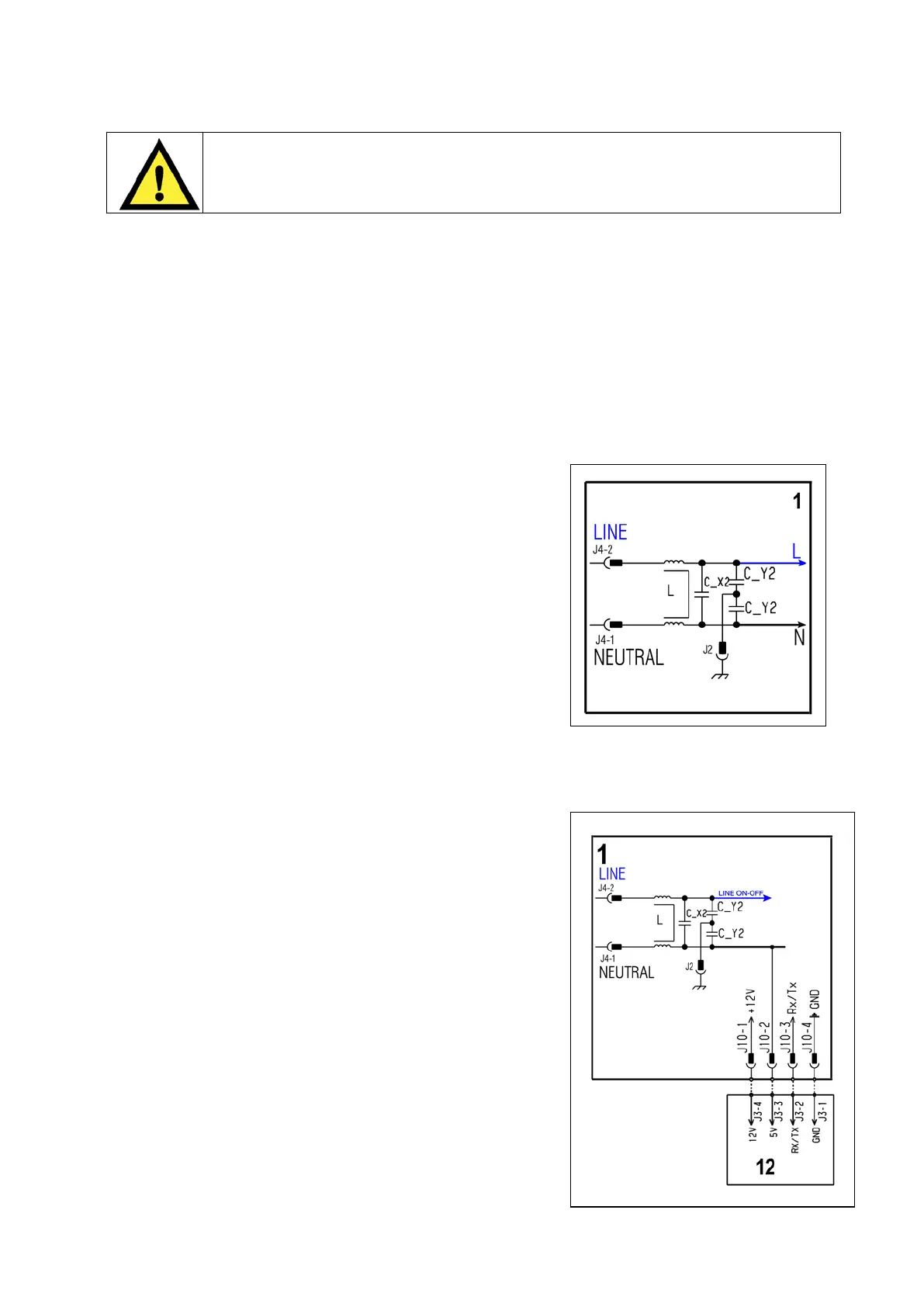

21.1 Noise filter
General characteristics
This is a device that is connected to the electricity power line input of the appliance and prevents the emission
of radio frequency noise. It is incorporated into the main board.
1. Main circuit board
21.2 Display board
The main circuit board (1) supplies the power supply voltage to
the control and display board (12).
The selector dial is used to select programmes.
Selection of the options or start/pause is achieved using the
buttons on the board (12).
The buzzer - where featured - is powered by the display board.
1. Main circuit board
12. Display board
Technical Support - DMM 81/124 599 75 58-67 Rev. 04
