Electrolux EWM09311 - Pulley; Motor; Resistance

If necessary, adjust the position of the belt on the drive pulley, so that
it is correctly positioned.

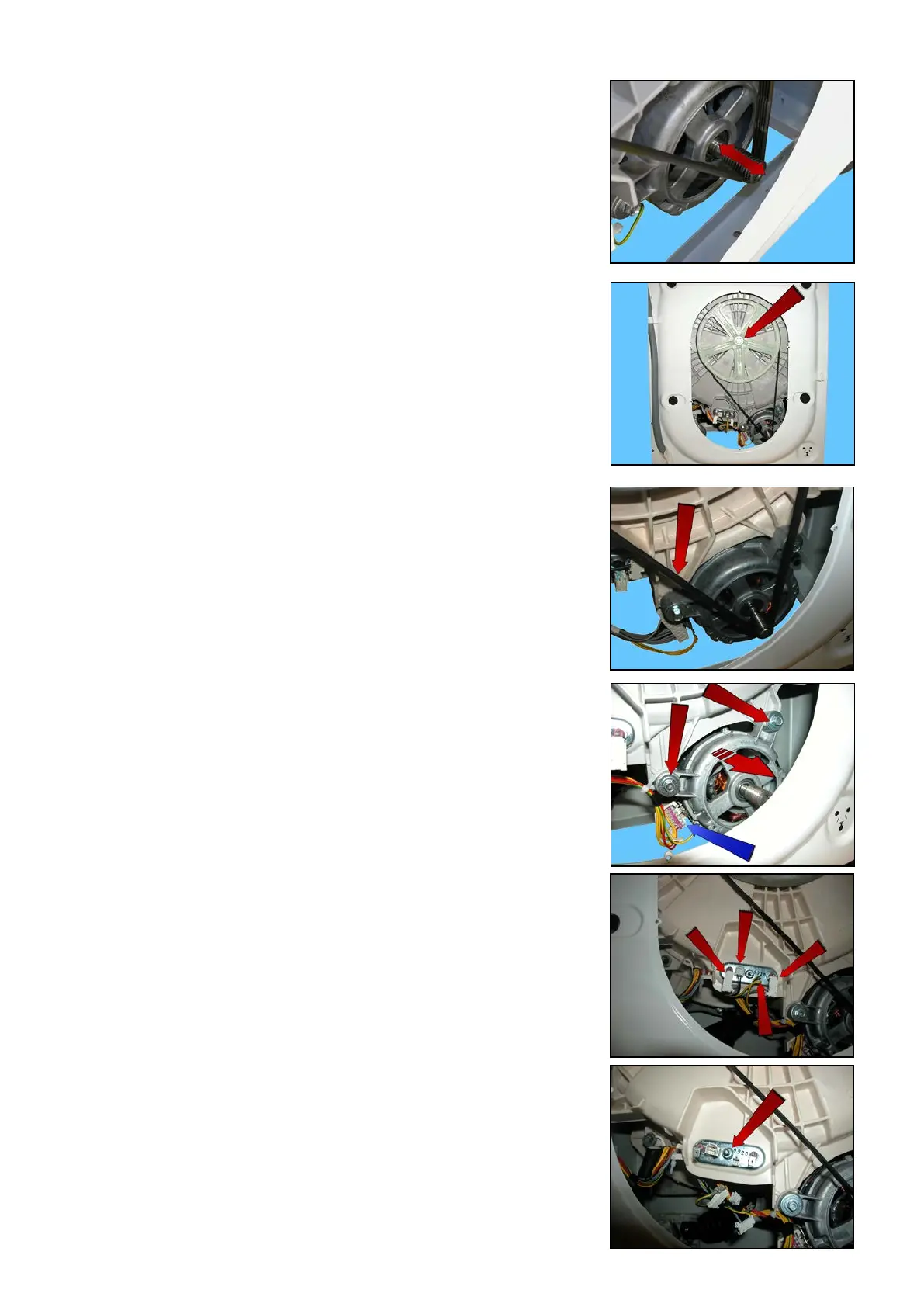

23.4.2 Pulley
Remove the back panel (see relevant chapter).
Remove the belt (see relevant chapter).
Insert a retainer to secure the pulley in place.
Unfasten the screw securing the pulley to the drum shaft.
Tighten the screw at a torque of 25÷30 N.
23.4.3 Motor
Remove the back panel (see relevant chapter).
Remove the belt (see relevant chapter).
Disconnect the connectors (1): for the power supply and earthing.
Loosen the two front fixing screws (2).
Remove the motor in the direction of the traced arrow.
When reassembling, restore the connections.
23.4.4 Resistance
Remove the back panel (see relevant chapter).
Disconnect the connectors of the heating element (1), NTC probe (2)
and earth (3).
Unscrew the bolt to remove the heating element.
1
1
3
2
2
2
1
Technical Support - DMM 111/124 599 75 58-67 Rev.04
