Electrolux EWM09311 - Accessing the rear part; Back panel; From the back panel, you can access; Belt

23.3.5 Accessing the rear part
23.3.6 Back panel

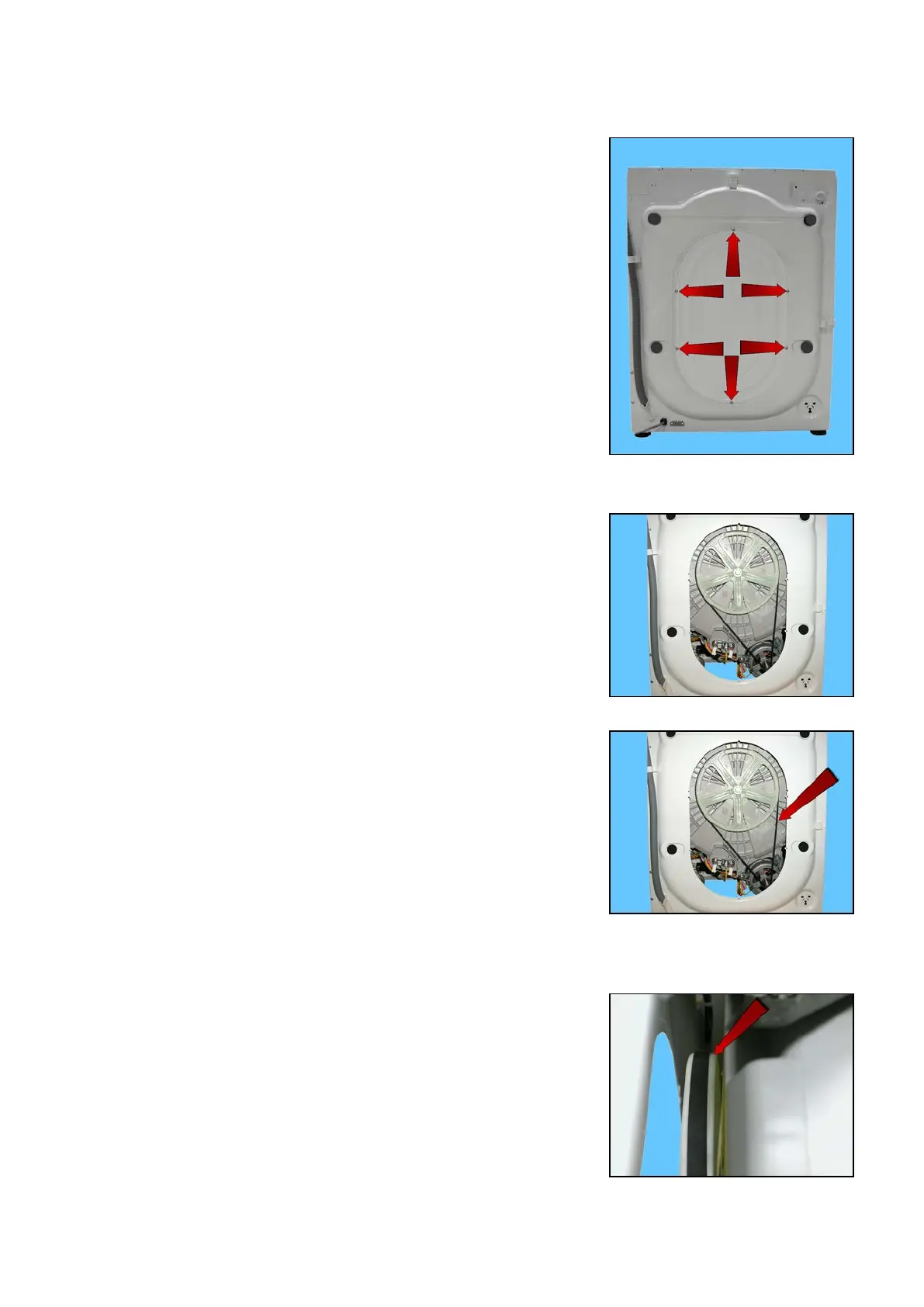

Loosen the screws that fix the back panel to the unit.
23.4 From the back panel, you can access
1. Belt
2. Pulley
3. Motor
4. Resistance
5. Main circuit board
23.4.1 Belt
Remove the back panel (see relevant chapter).
Hold the belt, and by turning the pulley, remove it.
When reassembling:
position the belt and align it with the centre of the pulley as shown
in the figure.
Turning the pulley, check that the belt positions itself and remains
in the central part of the pulley.
1
2
3
4
