Main board.

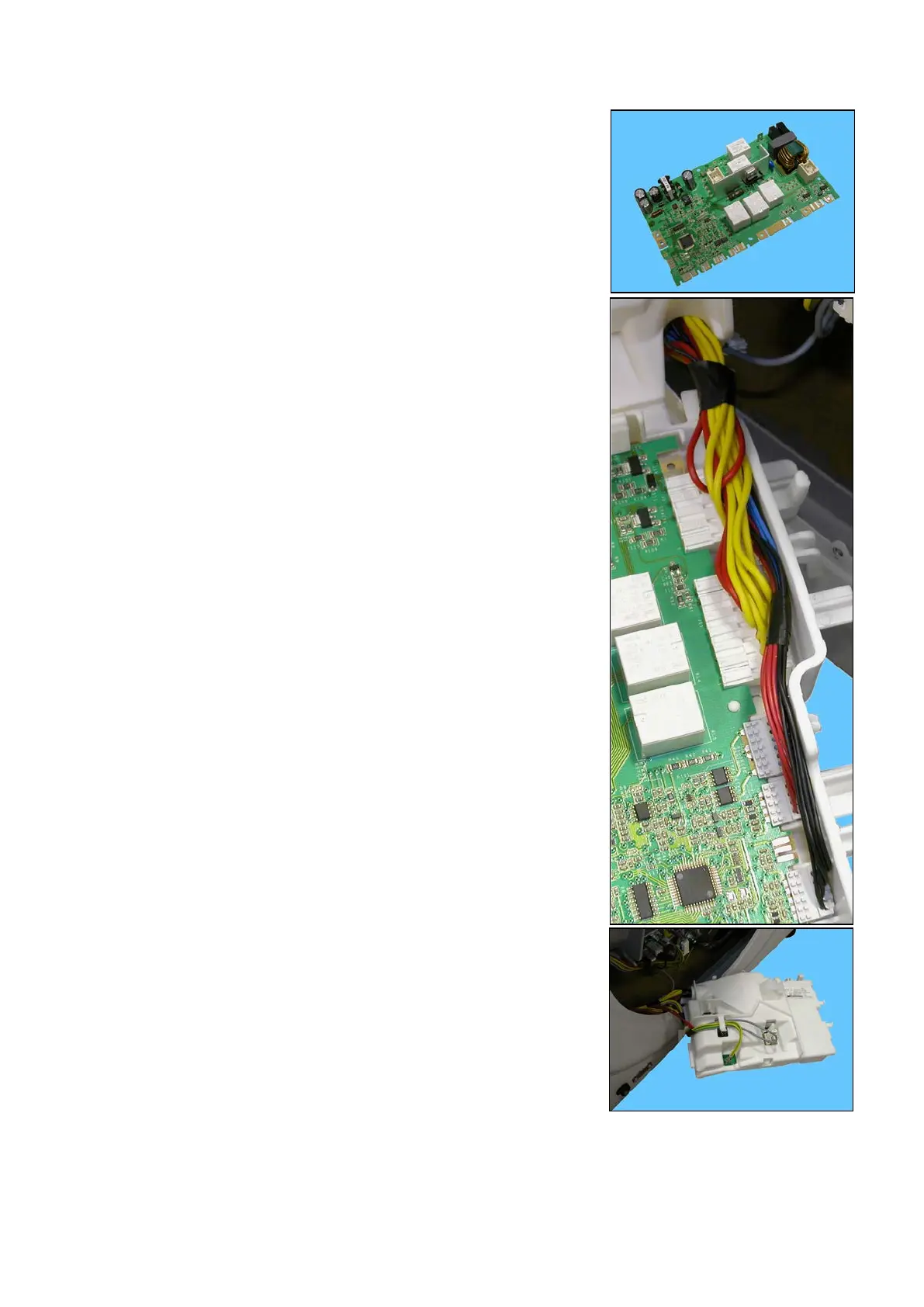

When re-assembling the main board, fit the connectors into their proper
slots and arrange the cabling as shown in the figure ensuring that the
various hooks block the board to the wrapping.
Close the lid.
Reconnect the various connectors, in particular, the drain pump and
heating element ones.
Repeat the previous operations backwards in order to re-position the
board in its place.
Technical Support - DMM 113/124 599 75 58-67 Rev.04
