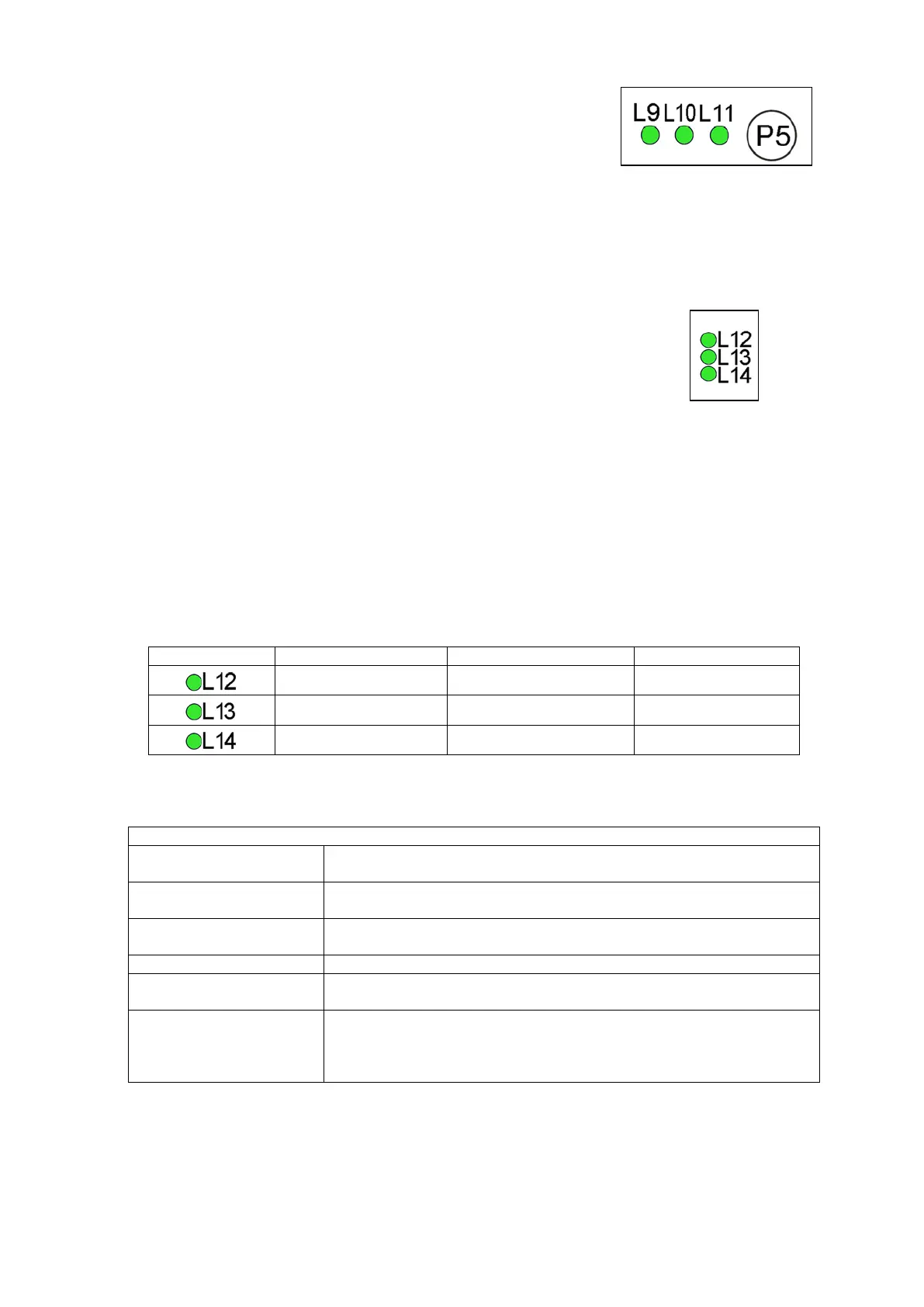

• Button no. 5:
this button is configurable and is related to LEDs (L9÷L11).
It performs the delayed start function.
Press it in sequence to choose from one of the three delayed start
options: 3h-6h-9h with the related LED coming on.
• Wash phase indicator LEDs:
LEDs L12 L13 L14 are configurable and are used as wash phase indicators.
Three combinations are envisaged.
First combination: The phases of the washing cycle are displayed and the “Extra Rinse” option can be selected
by pressing a button;
Second combination: The phases of the washing cycle are displayed along with the status of the “Extra Rinse”
option, when the latter can be selected by a key combination;
Third combination: The washing cycle phases are displayed, along with the status of the door and the “Extra
Rinse” option can be selected by pressing a button.
Summary table of the three combinations
Wash Cycle in Progress Cycle in Progress
Rinses / Spin Extra Rinse Carriage door
End of Cycle End of Cycle End of Cycle
The meaning of each LED function is described in the following table.
Wash
Lights up in selection mode if the programme includes the wash
phase and during the wash cycle.
Rinses / Spin
Lights up in selection mode if the programme includes rinses and
spin and during the execution of these phases.
Extra Rinse
Lights up when this option has been memorised (if included in the
cycle) and during rinses.
Lights up during execution of the cycle.
End of cycle
Lights up when the programme has completed and after the door has
been unlocked.
Door closed
Lights up when the safety device prevents the door opening and
switches off when the door can be opened.
It flashes when the device is about to unlock the door (it is noticed
with PTC delaying devices, which need one or two minutes to open).
Technical Support - DMM 52/124 599 75 58-67 Rev.04
