8. Remove four (4) motor mounting screws and pull Auger Motor free from
Motor Cover.
9. Replace assembly in reverse order.
To Test Auger Motor:
1. Read ohms value of motor windings using Multimeter on resistence scale.
(Put test leads on terminals where purple and white wires were disconnected
from Step 6 of procedure “To Remove Auger Motor”).
2. Resistence reading should be low ohms. If you get anything else, replace
motor.
To Remove Solenoid Assembly:
1. Disconnect refrigerator from electrical supply.
2. Remove Ice Cream Shelf and slide Ice Container forward and off Rail
Assembly.
3. Loosen 2 screws holding Ice Maker to rail assembly. Unplug Molex connector
and lift Ice Maker off of loosened screws and pull free.
4. Remove 2 screws on bottom of Rail Assembly holding it to mounting
brackets. Unplug Molex connector. Lift up on Rail Assembly and pull forward,
freeing it from mounting brackets.
5. Remove 4 screws holding back cover to rail assembly. Remove foam block
over solenoid coil.
6. Remove screw securing green ground wire to Solenoid Assembly on the

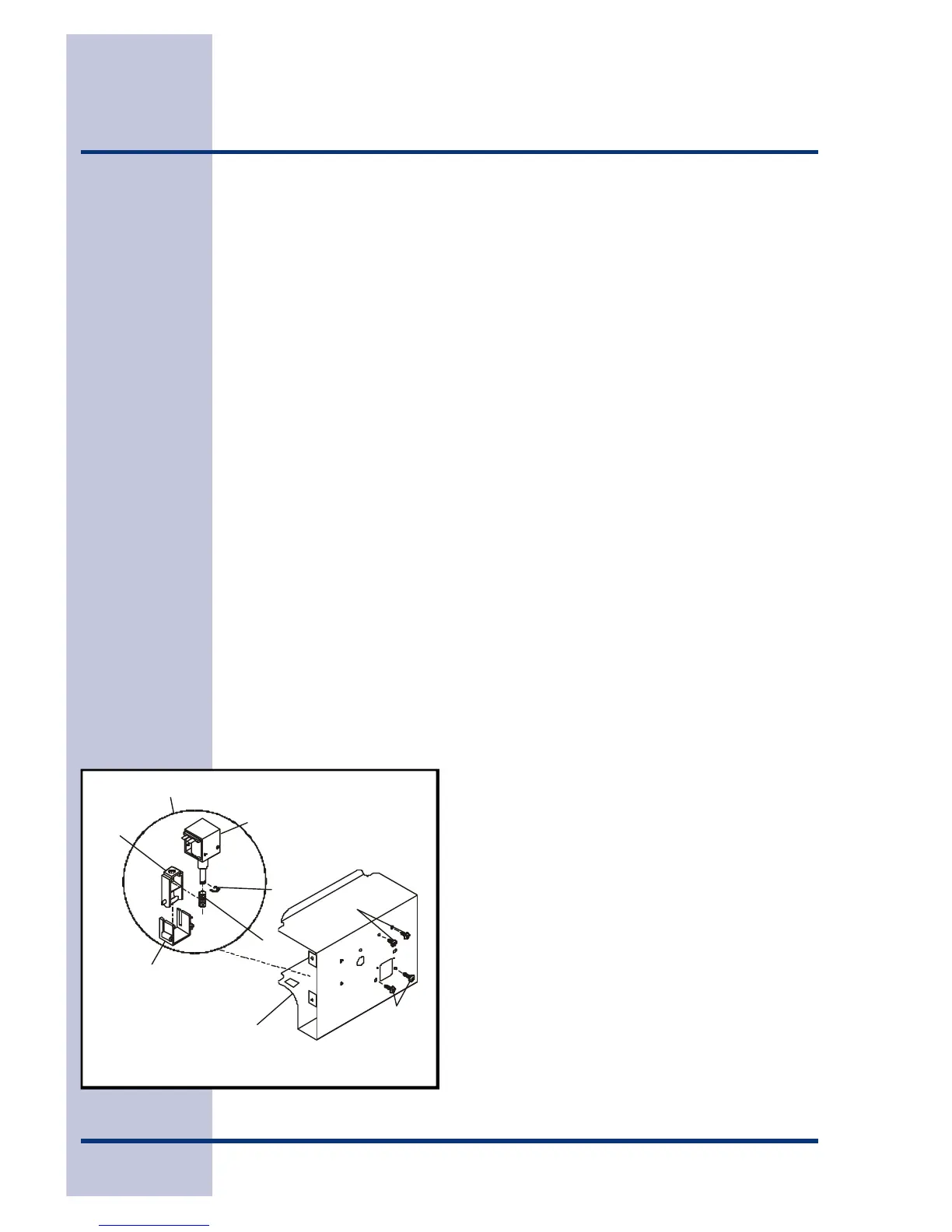

back of Motor Cover. (See Figure G1.)
7. Disconnect two (2) leads hooked to
solenoid coil (Leads are blue with a white
stripe and white - See Figure G1).
8. Remove four (4) mounting screws on front
of Motor Cover and pull Solenoid Assembly
free. (See Figure G3.)
9. Replace assembly in reverse order.
To Test Solenoid Assembly:
1. Read ohms value of solenoid coil using
Multimeter on resistence scale. (Put test
leads on terminals where blue with white
stripe and white wires were disconnected
from Step 6 of procedure “To Remove
Solenoid Assembly”).
