Section F - Ice Maker
Operating Cycle Illustrations - Manual Cycle
To manually cycle Ice Maker, push ON/OFF switch to the ON position and hold
down until the sweep arm advances to the 2 o’clock position. Then let go of switch.
Let the Icemaker advance on it’s own through a cycle.
Operating Cycle Illustrations - Electrical

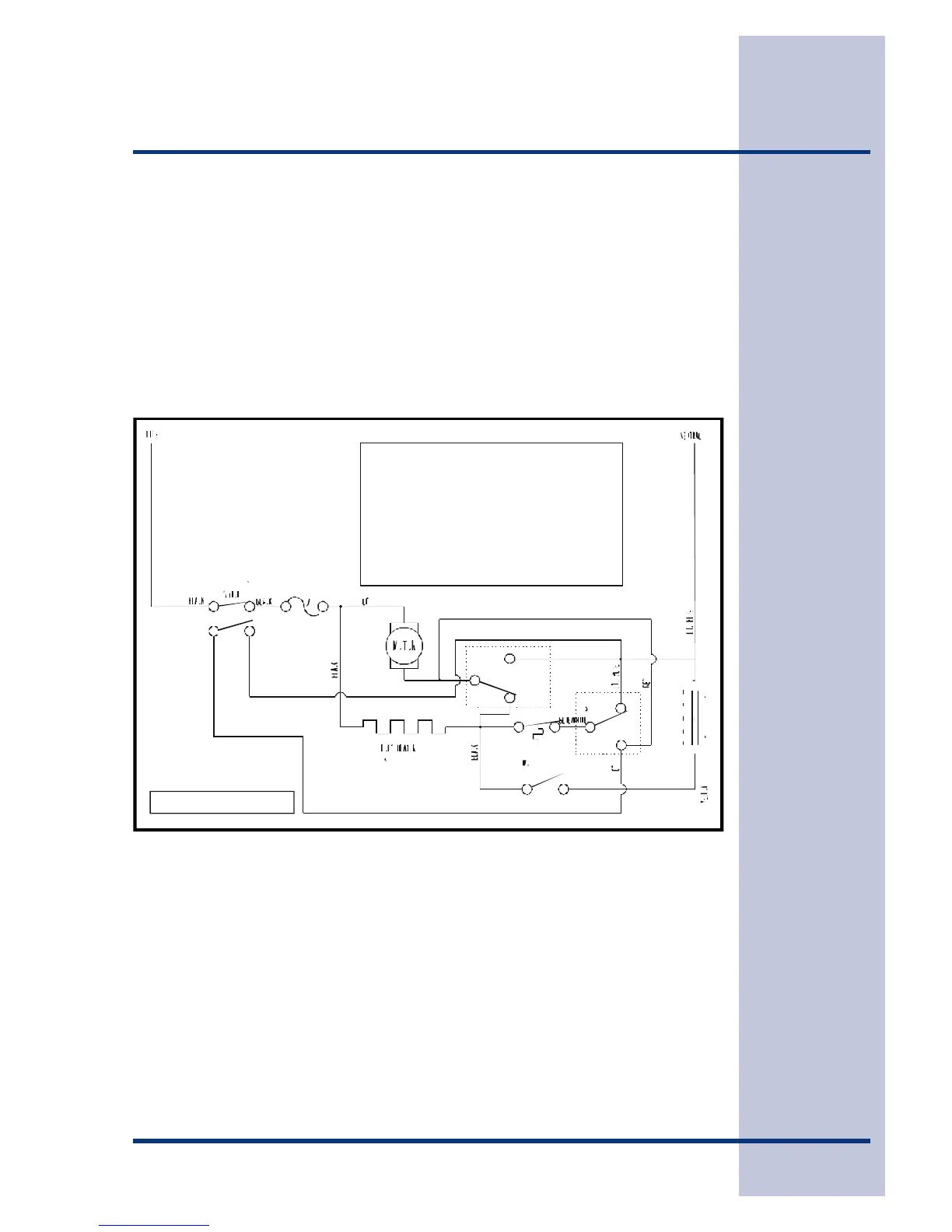

The following wiring diagrams illustrate the electrical operation of an Ice Maker. This
procedure is on the Internet at http://www.frigidaire.com/tip/
Ice Maker - Electric 1
NC
C
NC
C
NO
NO
· Ice Maker connected to electricity.
· Mold temperature above 15° F
·
· Motor not rotating.
· Mold Heater off.
· Control Arm in the down position.
· ON/OFF switch in the ON position.
· Shut-Off Switch closed C to NO.
· Hold Switch closed C to NC.
· Water Fill Switch open.
Thermostat open.
.
