88 Section F - Ice Maker
The correct water fill volume is 78-83 cc. To measure the fill volume, test-cycle the
Ice Maker and collect the water. Measure in a container calibrated in cubic
centimeters (cc) the fill time is 5.4 seconds.
The fill volume is adjusted by increasing or decreasing the length of time the Water
Fill Switch remains closed.
To adjust the Water Fill Switch, first determine how much water is needed. The
adjusting screw is calibrated so that one complete revolution changes the water fill
about 18 cubic centimeters. Turning the screw clockwise decreases the fill, while
turning counterclockwise increases the fill.
EXAMPLE: An Ice Maker is test-cycled and the water fill sample is 93 cubic
centimeters. Subtracting 80 cc from 93, the adjustment needed is 13 cc. Since one
turn of the adjusting screw changes the fill 18 cc, ¾ of a turn clockwise would
reduce the fill about 13 cc, the desired amount. (This example is for manual
models only.)
Parts Replacement
Disconnect electrical supply to refrigerator. If the

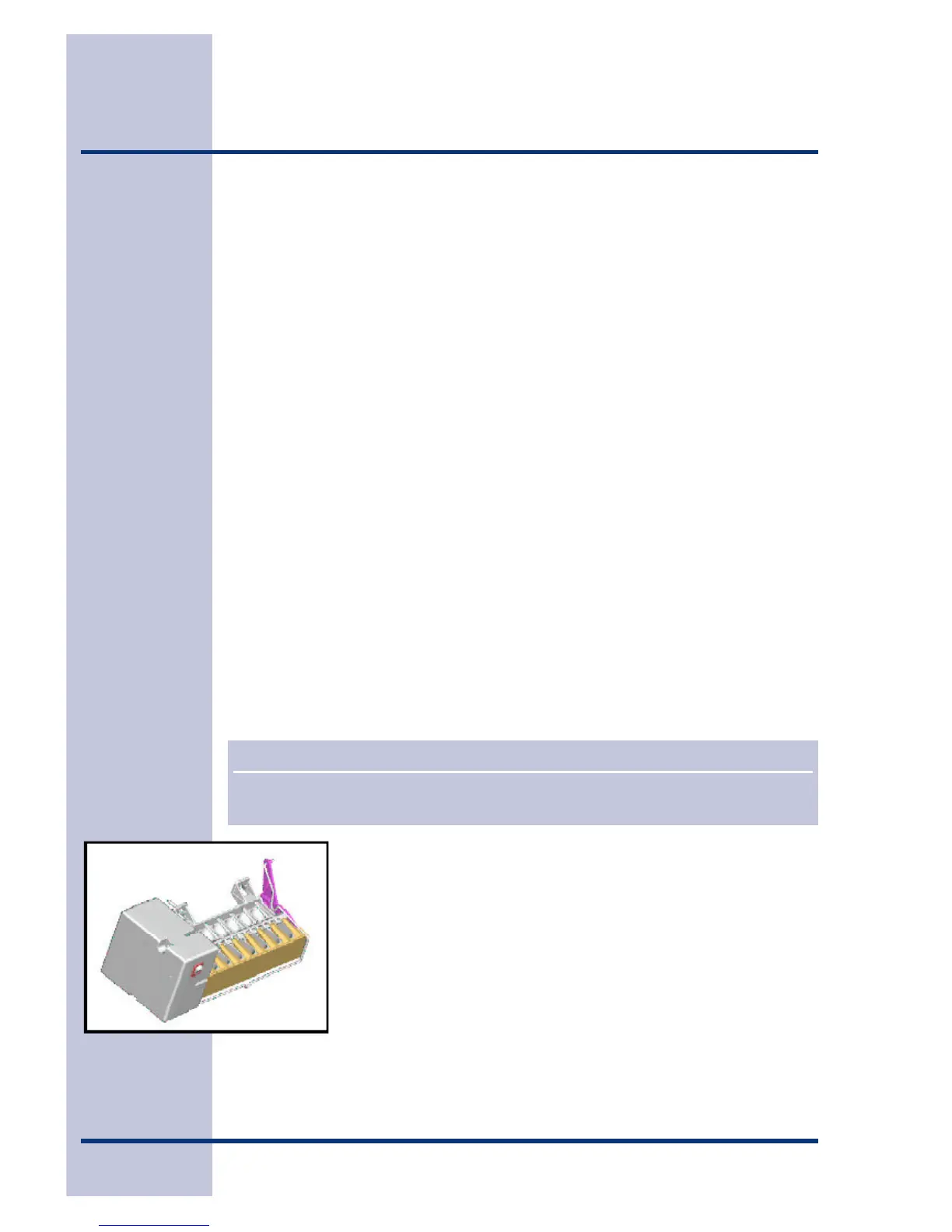

To Replace Front Cover (See Figure F4)
1. Remove ice from freezer.
2. Ensure that Ice Maker is at room temperature before removing Cover.
3. Place straight blade of screwdriver in slot at bottom of Mold Support and pry
Cover loose.
4. Snap Cover in place.
To Replace Fill Trough and Bearings
1. Remove Ice Maker from Freezer.
2. Push Trough retaining tab back away from Mold.
3. Rotate Trough counterclockwise until it is clear.
4. Pull from back to detach from Mold and Ejector Blades.
5. Replace in reverse order.
NOTE
Ensure that the retaining tabs inside the Cover are located on the top and bottom when
installing the Cover.
