Section G - Ice & Water Dispenser
The original heater for the ice chute and housing are
foamed in place with the one piece door. It is connected to
the door wiring (See Figure 27) harness by a plug coming
out of the inner door panel with 2 black wires connected to
it. (See Figure 27) If the heater fails, it will be necessary to
install an external heater on the housing chute opening in
place of the internal heater. The replacement heater will
connect to the same plug as the original heater. (See
Figure 28)
Fast Freeze - Fast Ice
When you select the Fast Freeze (Acceler Freeze), the
control board sends a signal to the main power supply for a
period of 16 hours, to pull the freezer temperature down to -
6°F for faster freezing of food.
When you select Fast Ice (Acceler Ice), the control board
will send a signal to the main power supply for a 12 hour
period to maintain a colder freezer temperature to increase
ice production.

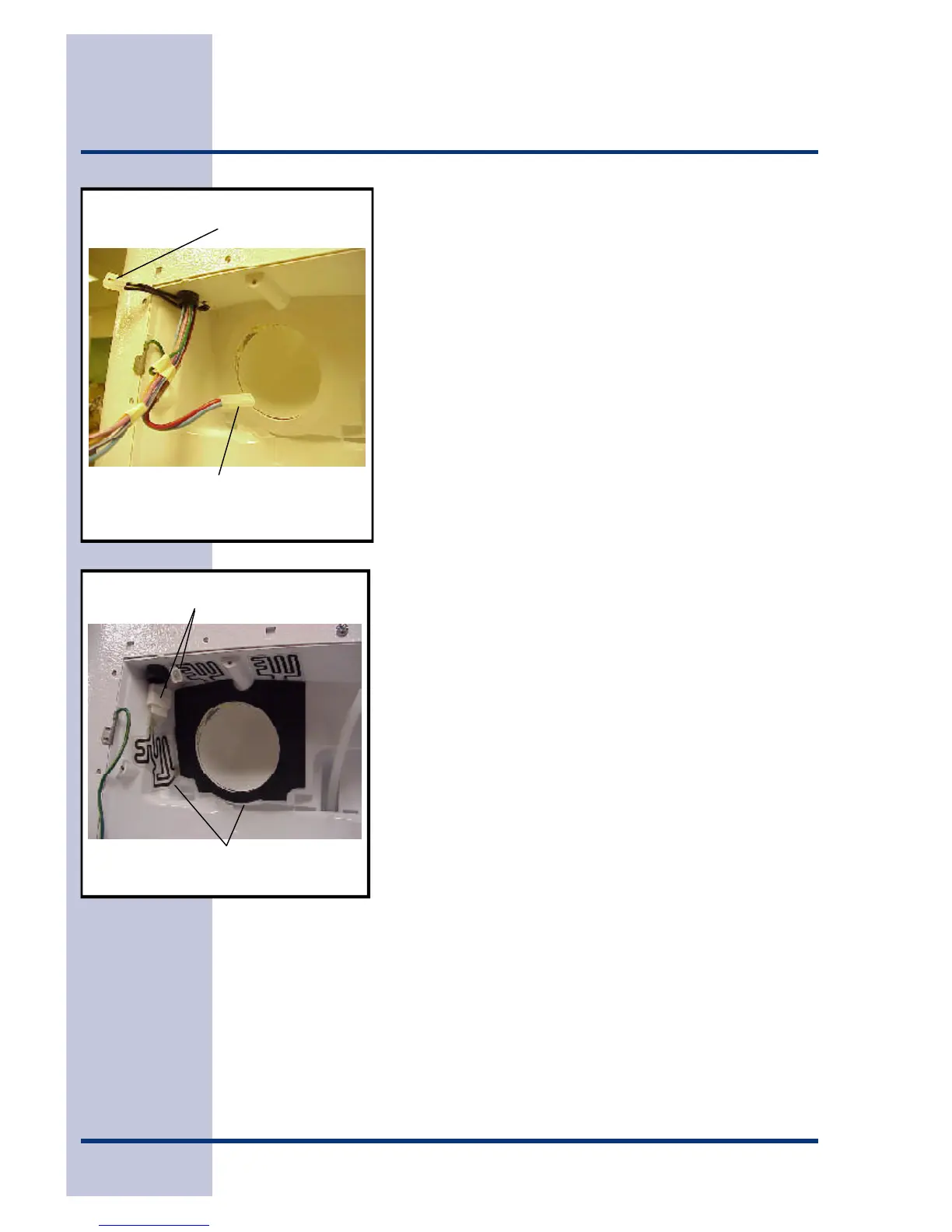

Plug for chute heater
Check across the two black wires
to test the internal chute heater.
Figure 27
Figure 28
Attach service heater in this location
Connect wire adaptor to heater
and plug into door harness
To Next Page
