110 Section G - Ice & Water Dispenser

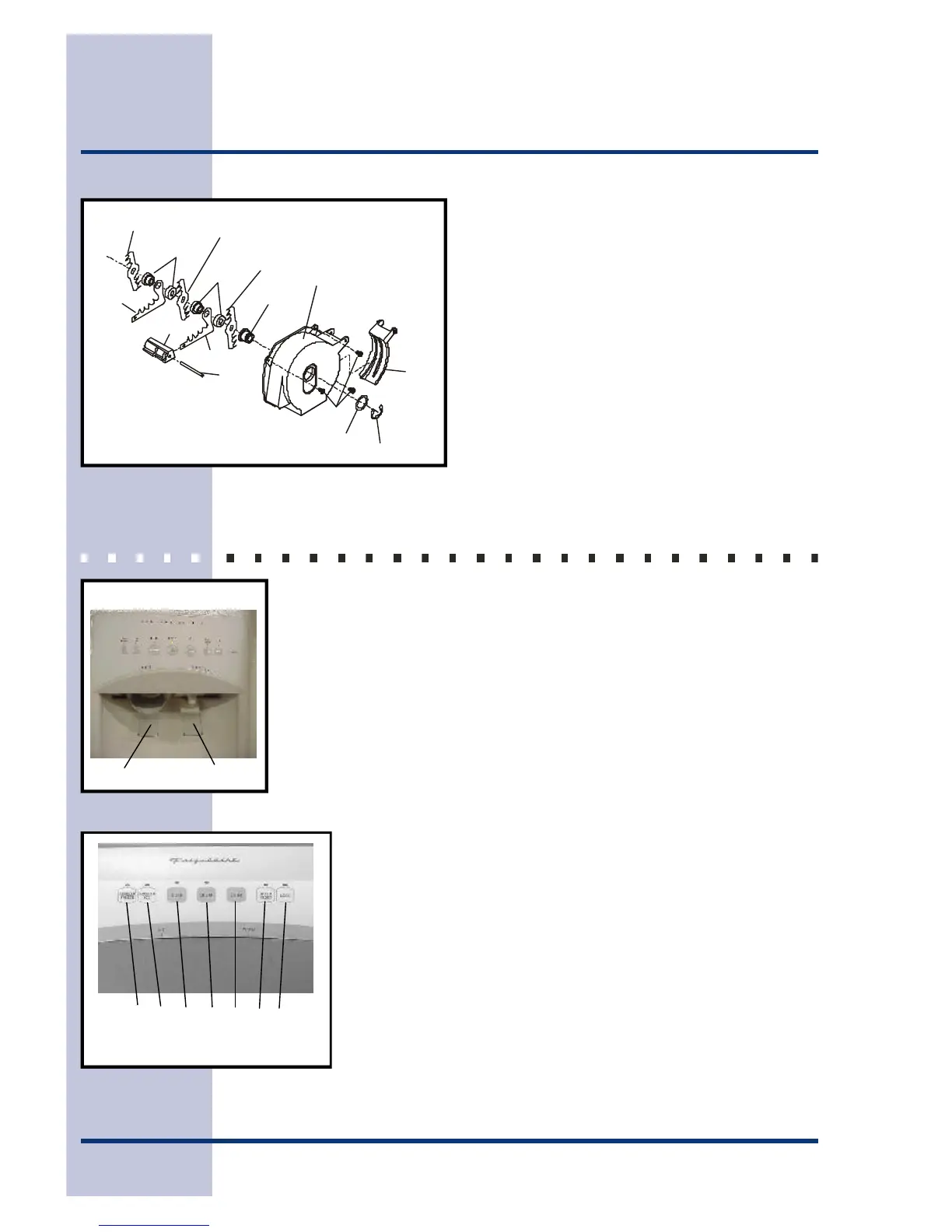

To replace Crusher Blades:
1. Remove Auger Nut to gain access to Crusher
Blades. Each blade is separated by Spacer.
(See Figure G6.)
2. Remove Crusher Blades and Spacers until
you get to one that needs replacement.
3. Replace assembly in reverse order.
ICE AND WATER DISPENSER ASSEMBLY
FEATURE LEVELS
The ice and water dispenser will have two actuators. One for water and a
second for ice. (See Figure 1)
There will be different feature lay outs used on the ice and water side by
sides.
Seven Selection Dispenser: (See Figure 2.)
1. Extreme Freeze, Press to drop freezer temp to -6 F for a
period of 16 hours.
2. Extra Ice, Press to increase ice production for a period of 12
hours.
3. Cube, Press to get cubed ice.
4. Crush, Press to get crushed ice.
5. Light, Press to turn on light in dispenser.
6. Filter RESET, Press and Hold five seconds to reset light.
(This light will tell you when to replace the water filter.)
7. Lock, Press to disable dispenser. (Child Lock)
Spiral
Pin
Spacer
Crusher
Blade #2
Spacers
Spacers
To Next Page
