9
Section B - Refrigerator Cabinet

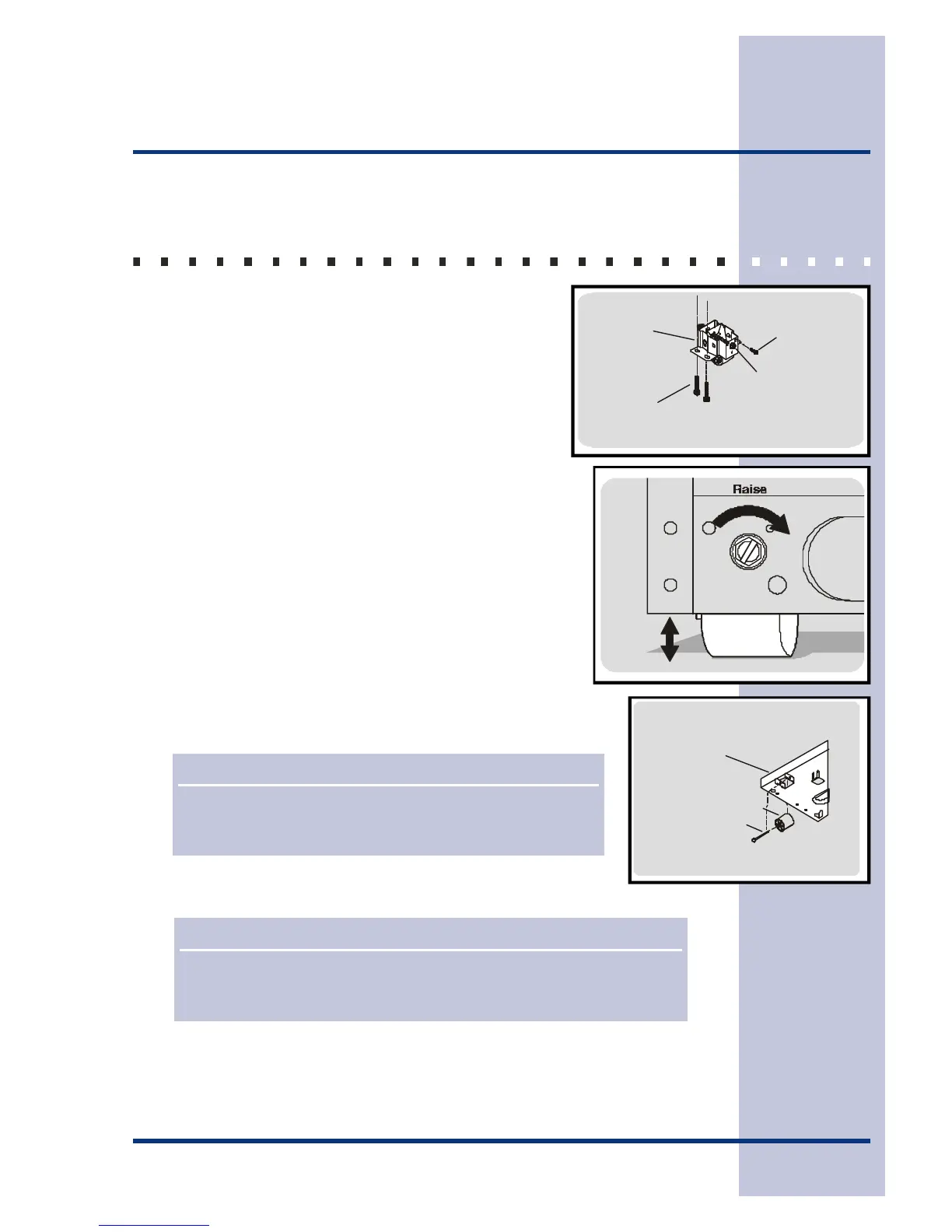

FRONT AND REAR ROLLERS
The front roller is mounted with two screws to the cabinet
base and one screw to the front of the cabinet. (See
Figure B4.) The adjustment screw at the top of the roller is
turned clockwise to raise the cabinet, and
counterclockwise to lower the cabinet. (See Figure B5.)
While making adjustments, slightly raise the cabinet to
reduce the strain on the roller assembly.
To Remove Front Roller Assembly:
1. Disconnect refrigerator from electrical power.
2. Raise and support cabinet.
3. Remove two bolts securing roller to bottom of
refrigerator.
4. Remove one screw securing roller to front of cabinet.
Roller should fall free.
5. Reassemble in reverse order.
To Remove Rear Roller: (See Figure B6)
1. Disconnect refrigerator from electrical power.
2. Raise and support cabinet.
3. Squeeze flared end of roller pin together using pair of pliers
or vise grips.
4. Pull roller pin free of roller and compressor base. Roller should fall free. If not,
you may have to tap roller lightly with hammer to free it from compressor
base.
5. Reassemble in reverse order.
Figure
B5
NOTE
The rear roller assembly is mounted to the bottom of the
compressor base. Raise and support cabinet before removing
rear roller.
NOTE
The end of the roller pin that protrudes through the roller has been flared to
prevent it from slipping out. You will have to squeeze it back together with a
pair of pliers before it will slide out for removal.
