Section F - Ice Maker

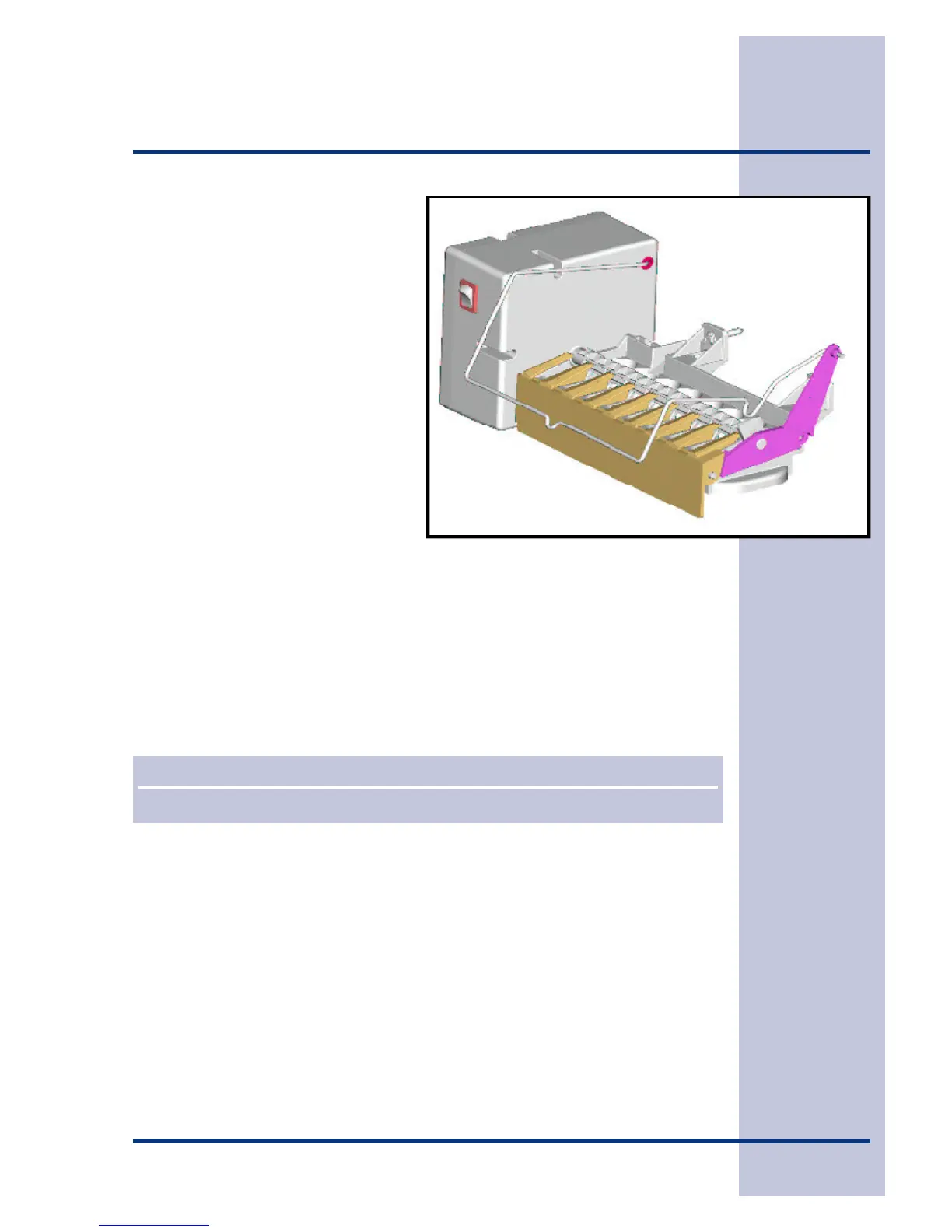

To Replace Ice Stripper
1. Remove Ice Maker from
Freezer.
2. Remove Ice Maker from
refrigerator.
3. Push out on retention tab of
mold.
4. Pull back on Ice Stripper to
disengage it from front of Mold
Support housing.
5. Replace in reverse order.
To Replace Motor and Switch
Mounting Plate
1. Remove Ice Maker from Freezer.
2. Remove front Cover.
3. Remove three screws that attach Mounting Plate to Support Housing.
4. Carefully remove Mounting Plate, disengaging end of Sweep Arm and noting
relative position of Sweep Arm Spring.
5. Transfer Motor, Switches, Cam, Gear, and Water Fill Adjusting Spring and
Arm to replacement Mounting Plate.
6. Attach new Mounting Plate to Support Housing with three screws.
7. Check Water Fill Cycle and adjust as required.
8. Replace front Cover.
To Replace Motor
1. Remove Ice Maker from Freezer.
2. Remove front Cover.
3. Remove three screws that attach Mounting Plate to Support Housing.
4. Disconnect two Motor leads.
5. Remove two Motor mounting screws.
NOTE
Ensure that the wiring harness is properly positioned and the Sweep Arm is in place.
