102
Section F - Ice Maker

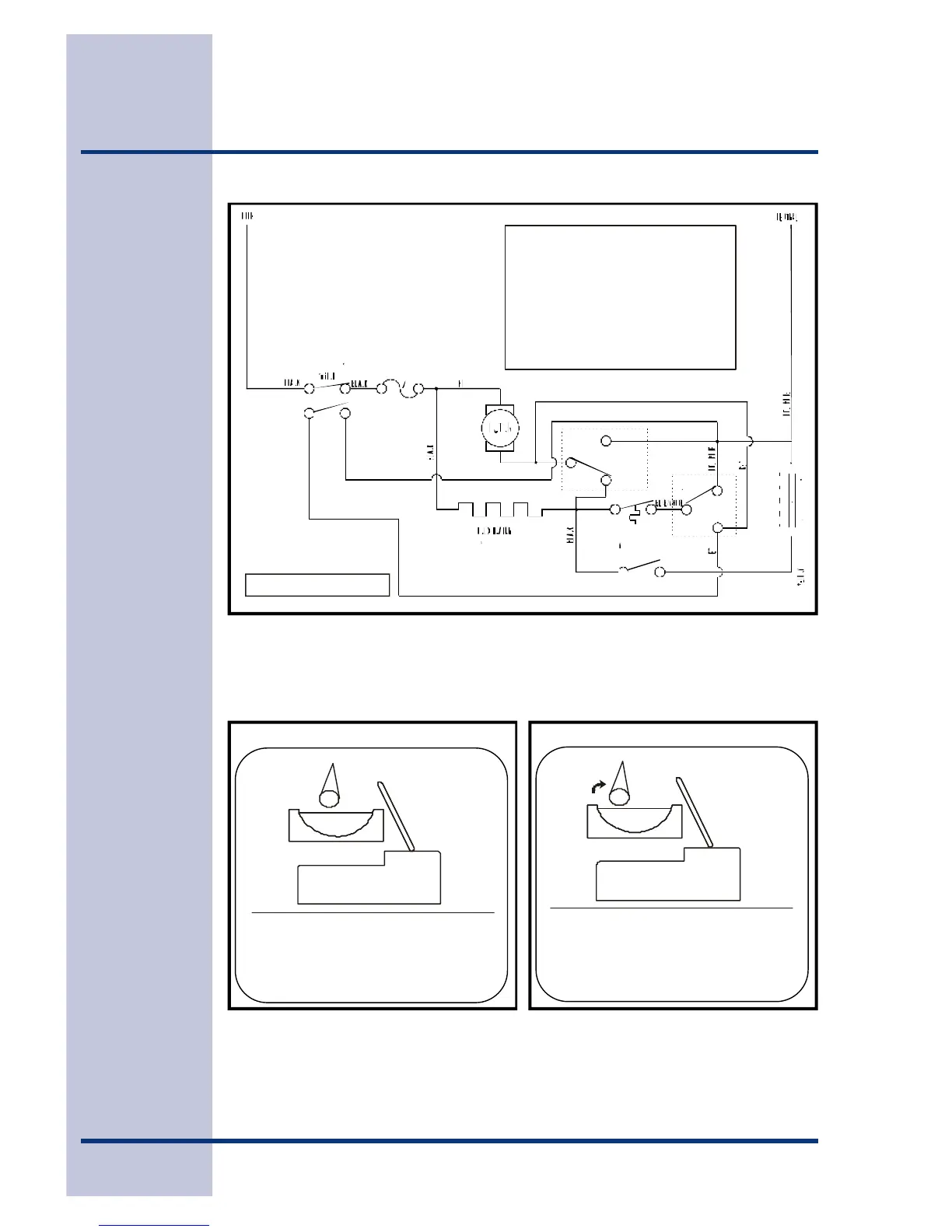

Ice Maker - Electric 14
NC
C
NC
C
NO
NO
· Ice Maker connected to electricity.
· Mold temperature above15° F
· Mold heater off.
· Thermostat open.
· Control Arm in down position.
· ON/OFF switch in the ON position.
· Shut-Off Switch closed C to NO.
· Hold Switch closed C to NC.
· Water Fill Switch open
· Motor not rotating.
.
Operating Cycle Illustrations - Mechanical
Step 1
Water
Ice Storage Bin
Water
Ice Storage Bin
C
o
n
t
r
o
l
A
r
m
Ejector
1. Mold is filled with water.
2. Thermostat is open.
3. All components are de-energized.
Freezer Cycle
Step 2
Water
Ice Storage Bin
Water
Ice Storage Bin
C
o
n
t
r
o
l
A
r
m
Ejector
1. Thermostat closes.
2. Mold heater & Motor is energized.
3. Ejector begins to turn.
Start of Harvest Cycle
