Section B - Refrigerator Cabinet
BASIC CONSTRUCTION
Counter Depth models have clean back cabinets and/or forced air condensers.
The condenser is located under the cabinet bottom. The cabinet wrapper consists
of a one-piece top and sides formed of prepainted steel, with an interlocking, snap-
in, galvanized steel back panel. A separate steel frame is attached to the cabinet
bottom. The compressor compartment houses the compressor, condenser, and
fan motor.
All cabinet seams have special sealing materials applied as vapor barriers, prior to
installation of the inner liner and foam insulation.
COMPRESSOR MOUNTING
All basic Construction Counter Depth models Side by
Sides will have a dynamic condenser and a unitary drain
pan assembly that is mounted to the bottom of the
refrigerator cabinet just behind the toe grille. (See Figure
B1.)
The compressor is mounted on rubber grommets with
metal inserts, then bolted to the base using four Hex
head, 14-28 shoulder screws. (See Figure B2.)

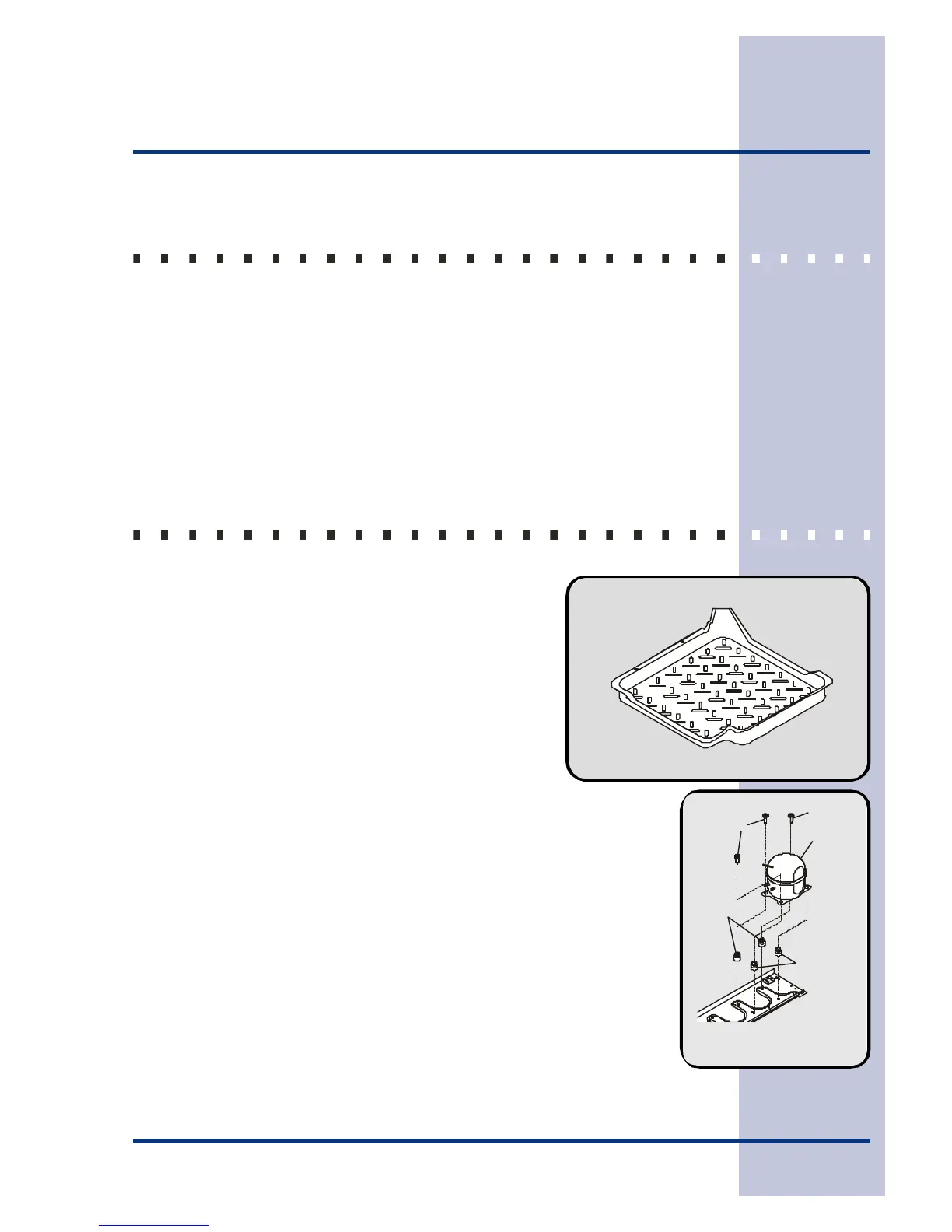

Drain Pan
Figure B2
Figure B1
