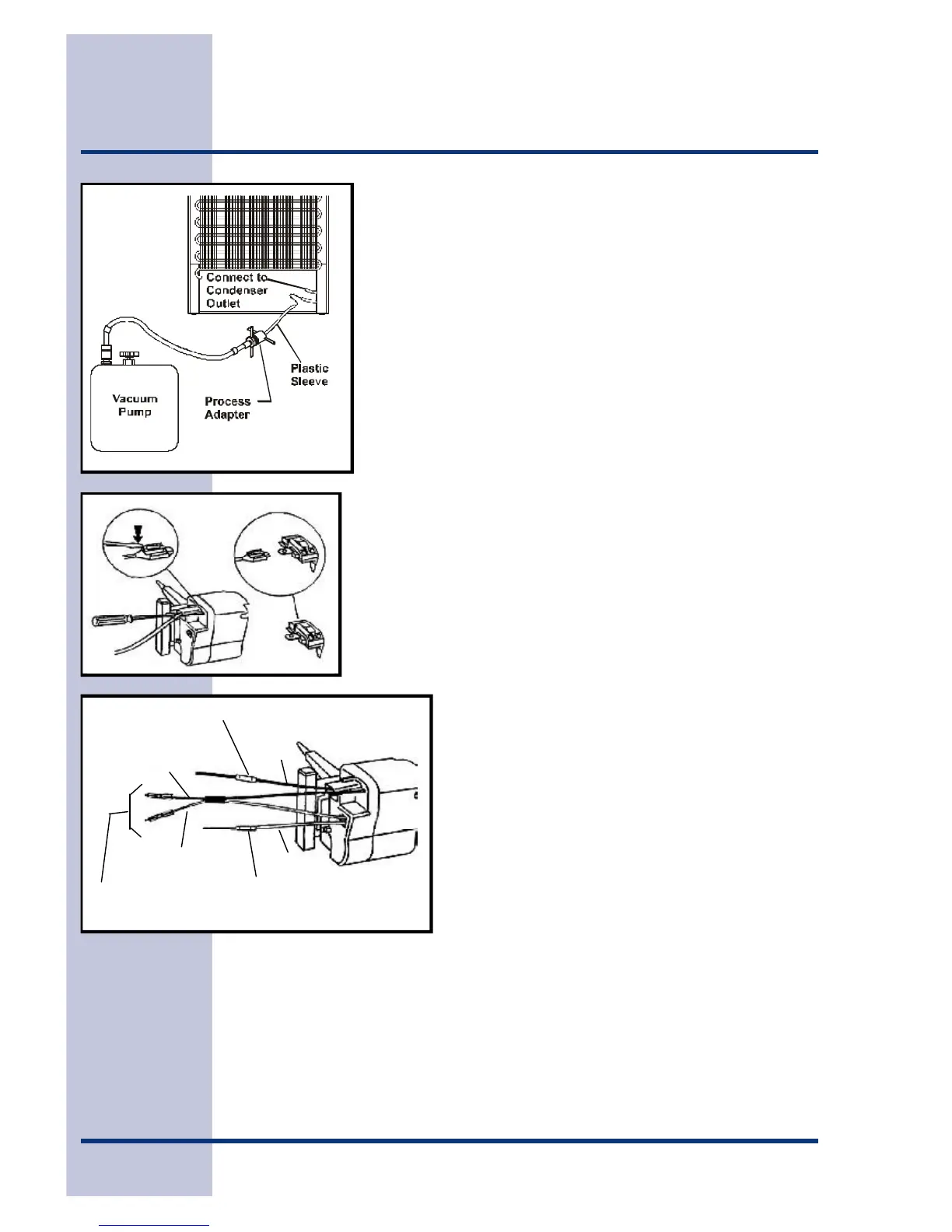

64 Section E- Refrigeration System
5. Disconnect Plastic Sleeve.
6. Pull braid out while pushing equal amount of braided heater
into tube at other end until heater wire inside braid appears.
Installing The Heater Wire - Step 3
1. Remove wires (with terminals) from compressor starter/
overload. On some models you will need to depress
locking tabs located in relay housing (See Figure 2.)
2. Install harness adapter into refrigerator circuit as shown in
Figure 3.
3. Cut off braid at start of heater. Strip insulation back about
5/16 inch. Be careful not to damage heater resistance wire.
Splice heater wire ends to loose leads of adapter harness
with furnished wire connectors.
4. Dress wires away form Condenser Fan Blade and any
sharp edges.
5. Secure wires with electrical tape as necessary.
6. Reinstall Back Panel for proper air flow over
condenser and compressor.
Wire splice connector to heater
Wire splice connector to heater
Red
Refrigerator
Harness
Red
White
White
Figure 2
Figure 3
Figure 1
