Electrolux T5190LE - 14.6 Heat Pump Unit Internal Cleaning

Service Manual
115
14.6 Maintenance of heat pump
14.6.1 Clean inside of the heat pump unit
Remove the heat pump
• Disconnect the power.
• Disconnect the water and drain hoses.
• Open the door and demount the screws on top of the heat pump unit door.
Open the heat pump unit door.
• Disconnect the cable and demount the cover panel with the cable.
• Pull out the heat pump.

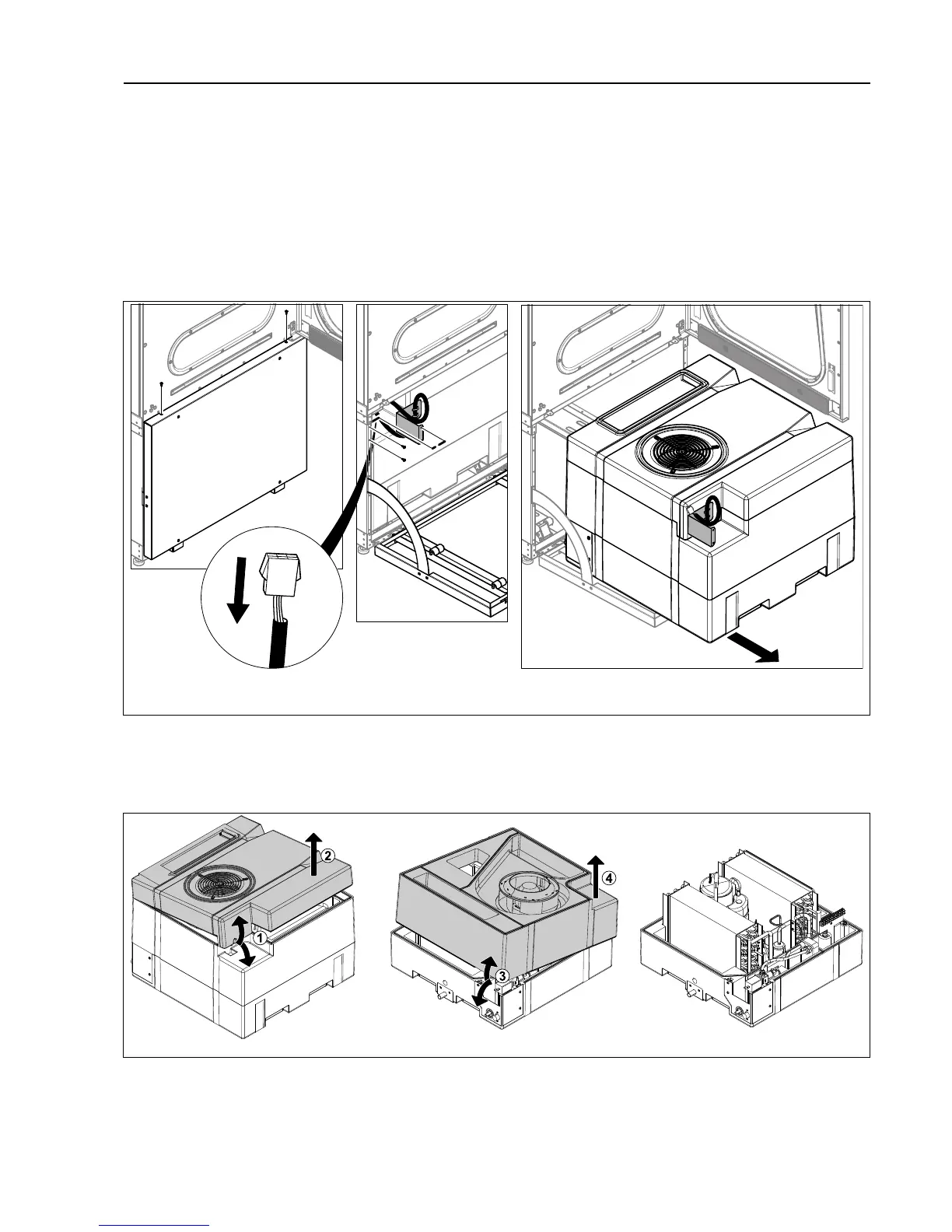

fig.8008
Separate the heat pump unit
Remove the tension straps around the heat pump unit.
Separate the heat pump unit (three units). Separate the units according to the figure.
fig.W00625
