Electrolux T5190LE - Filter Maintenance; 7.1 Special Filter Replacement

14
Service Manual

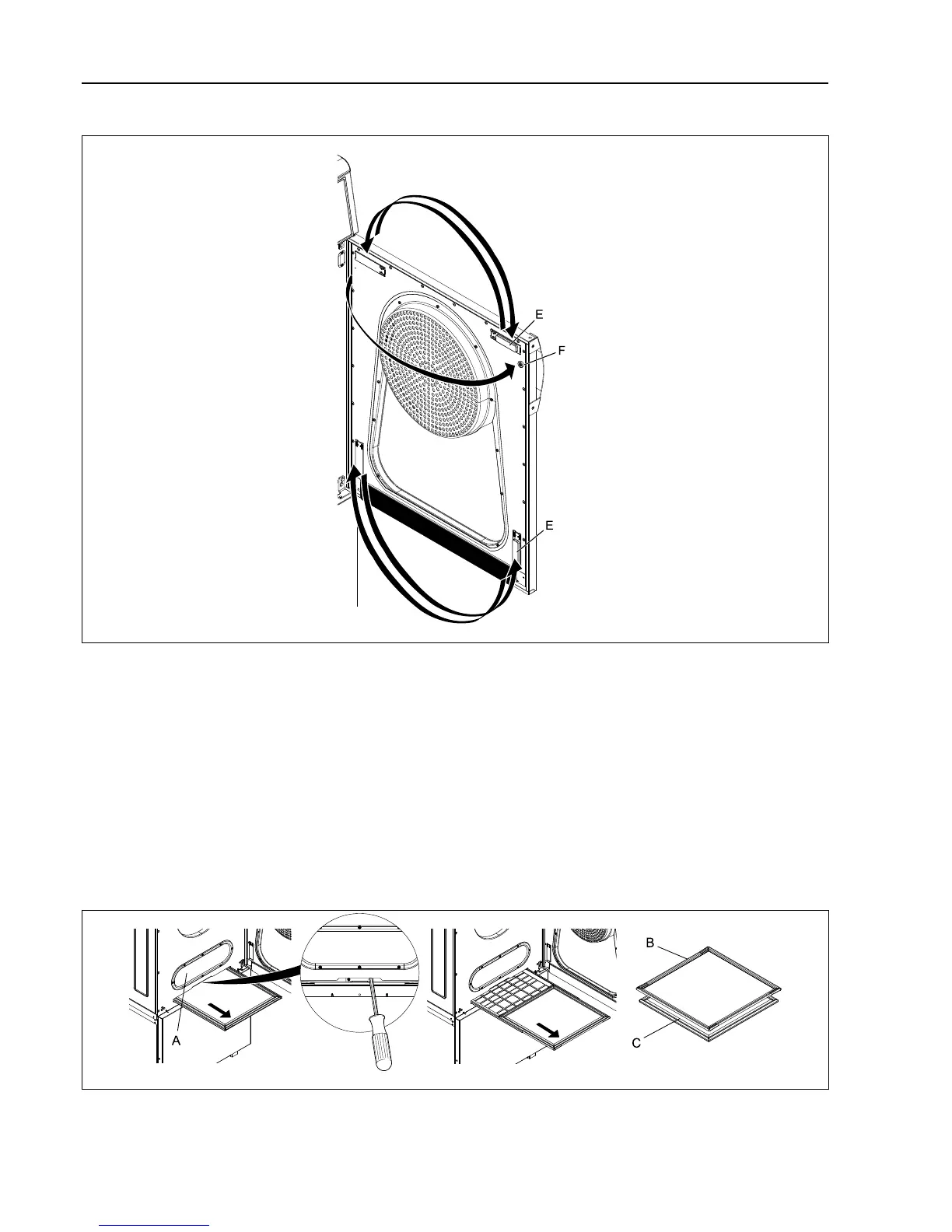

Demount the two magnetic door locks (E) and magnet for switch (F) and mount on the opposite side.
fig.7659A
Connect the power to the machine.
Test run the machine.
7 Filter
7.1 Replacement of the Special filter
Disconnect the power to the machine.
Pull out the filters as far as possible.
Loosen the two nuts on the locking bracket.
It is also possible to reach the nuts from behind the filter (A). Demount the filter (A) and loosen the two nuts on the
locking bracket.
Remove the filters and replace the Special filter (C).
fig.W00731
