Remounting the heat pump unit
Before remounting the heat pump unit the cables need to be fixed with sealant. Fixate the cables with the sealant in
the heat pump unit.
Pull the cable up through the hole in the middle section. Mount the middle section, make sure all cables are fixed.
Pull the cable up through the top section and mount the top section.
9.8 Replacement of heat pump unit door
Disconnect the power to the machine.
Disconnect the water and drain hoses.
Open the door and demount the screws on top of the heat pump unit door.
Open the heat pump unit door.
Disconnect the cable and demount the cover panel with the cable.
Pull out the heat pump.

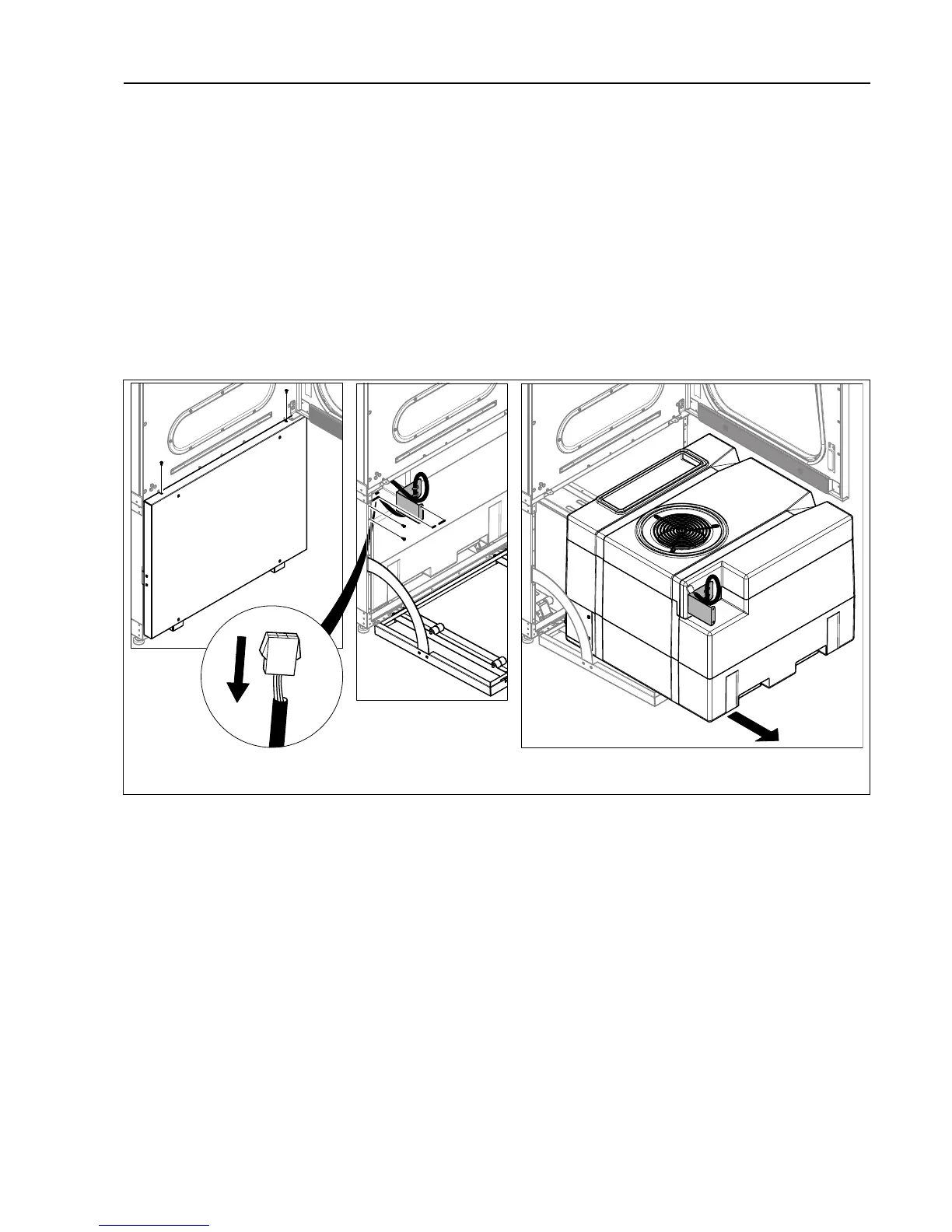

fig.8008
