Service Manual

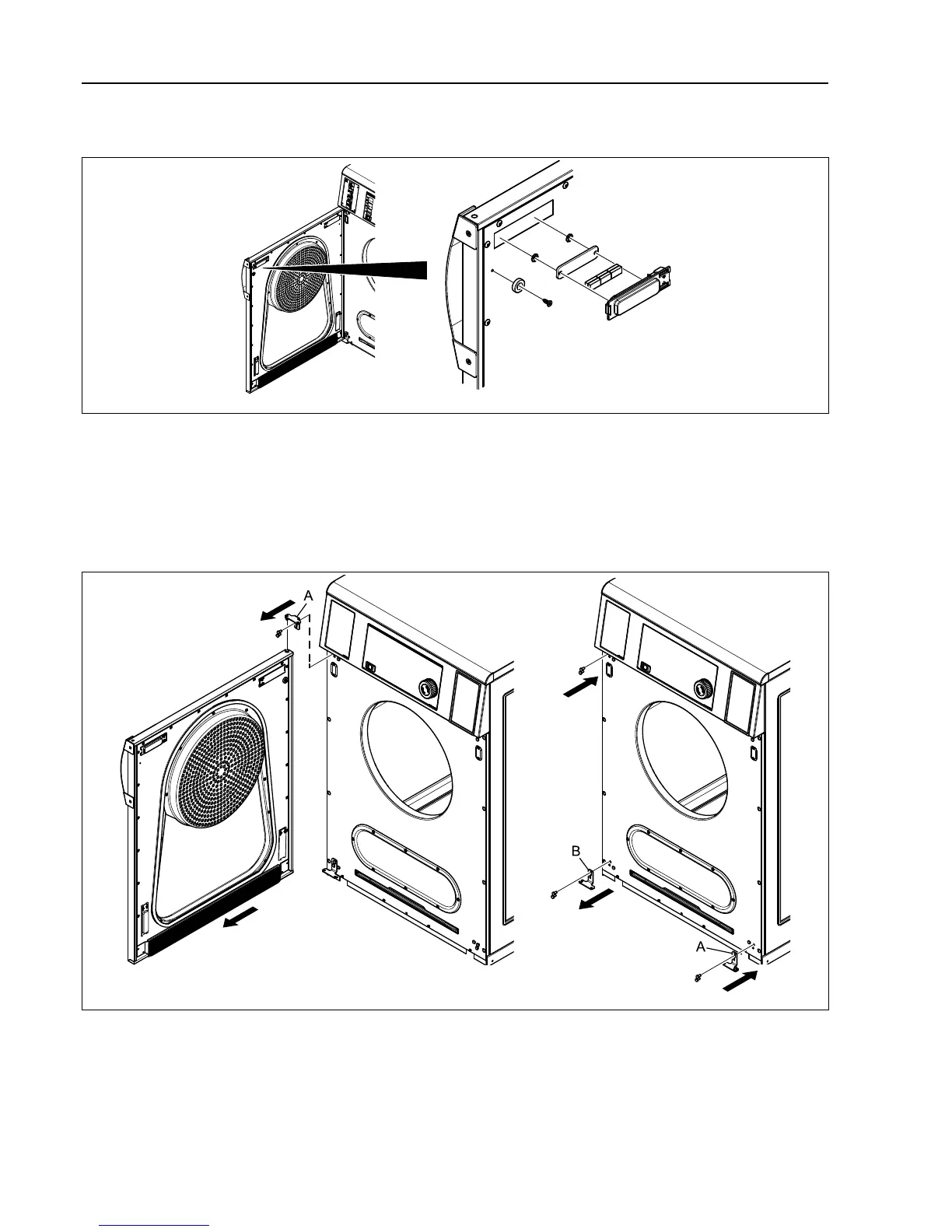

Replacement of door magnets
Remove the magnet to be replaced and mount the new one.
fig.7944A
6.2 Reversing the door
Disconnect the power to the machine.
Demount the hinge (A) and refit the screws into the same holes in order to secure the panel on the back. Mount the
hinge (A) at the bottom of the opposite side.
Demount the door by carefully lifting it of the front.
Demount hinge (B).
fig.8010B
