9.6 Removing the heat pump
Disconnect the power to the machine.
Disconnect the water and drain hoses.
Open the door and demount the screws on top of the heat pump unit door.
Open the heat pump unit door.
Disconnect the cable and demount the cover panel with the cable.
Pull out the heat pump.
Insert the heat pump and remount the cover panel with the cable and connect the cable.
Close the heat pump unit door and fasten the screws on top of the heat pump unit door.
Connect the water and drain hoses.
Connect the power to the machine.
9.7 Separating the heat pump unit
Remove the tension straps around the heat pump unit.

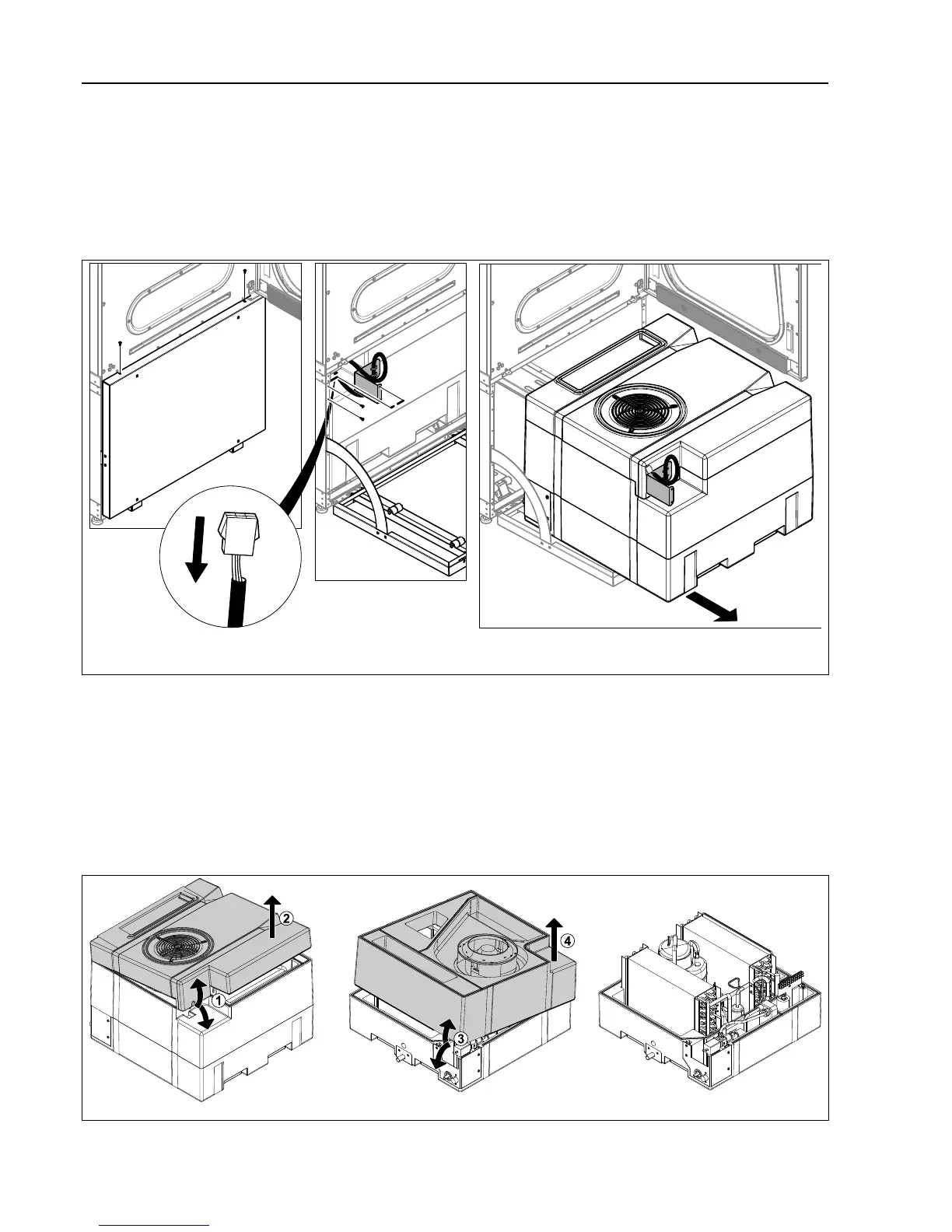

Separate the heat pump units according to the figure starting with the top section and then the middle section.
