When remounting; position the Special filter (C) below the lint filter (B). Make sure the Special filter (C) is in center po-
sition when inserting the filters on the filter bracket.
Make sure the filters are in position and below the locking bracket. Tighten the nuts on the locking bracket, press the
locking bracket down at the same time as tightening the nuts.
If the filter (A) has been demounted; remount the filter (A).
8 Motor
8.1 Replacement of motor
Disconnect the power to the machine.
Demount the rear panel.
Disconnect the motor cable (A).
Demount the spring and the drum belt.
Demount the two screws and remove the motor with console and pulley and replace with the new one.

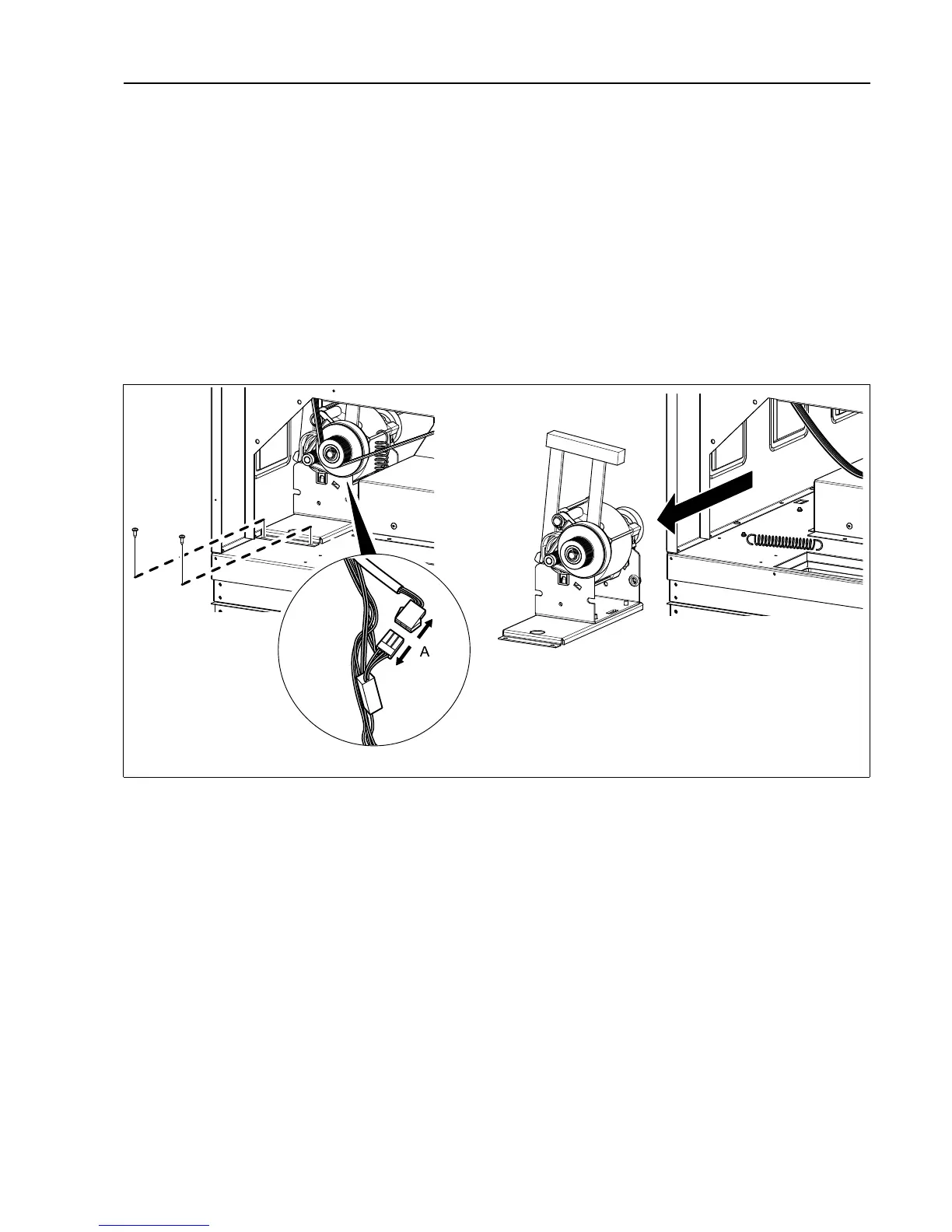

fig.8042
Remount the spring and the drum belt.
Connect the motor cable and remount the rear panel.
