Service Manual
17

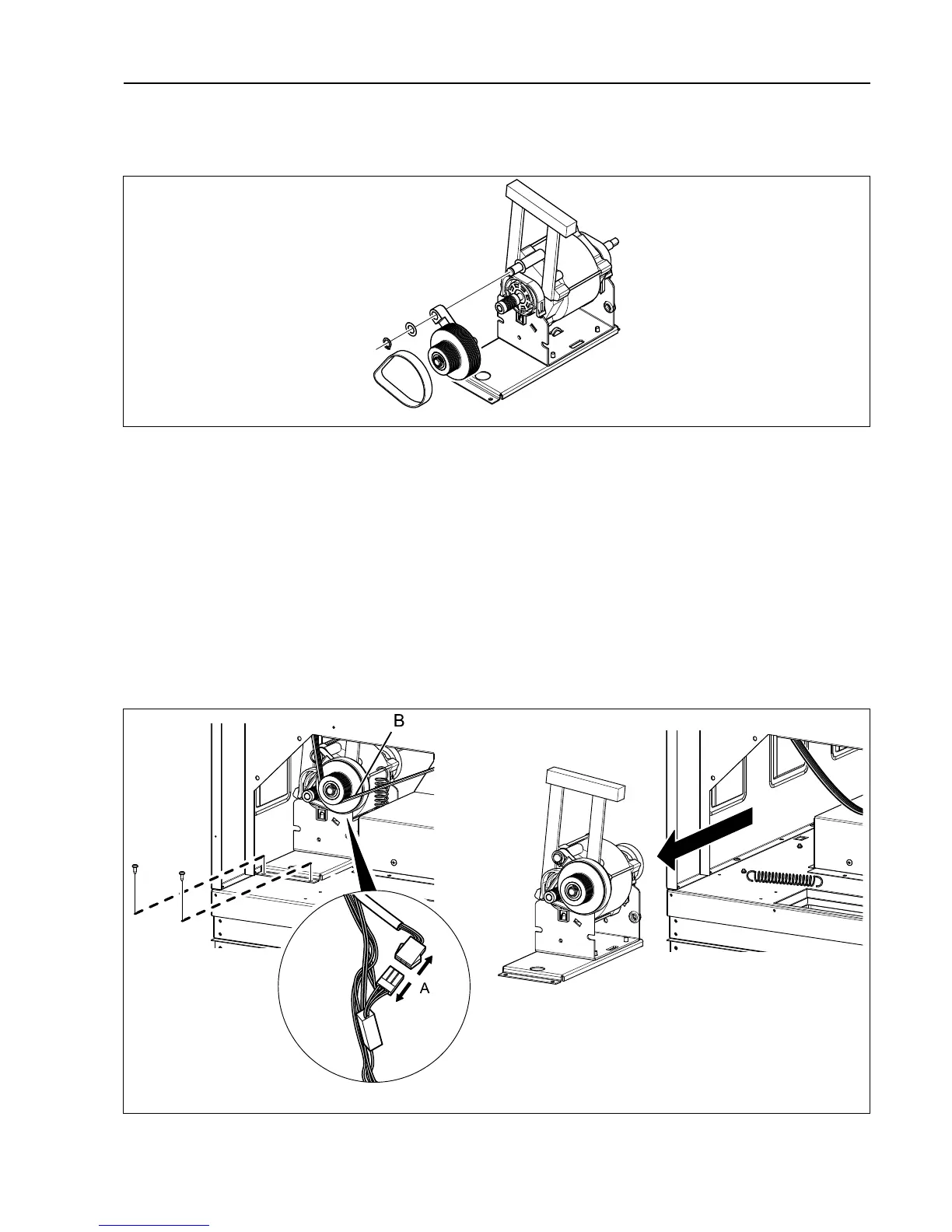

Remove the belt around the motor pulley.
Demount the snap ring, washer and arm with idler.
Remove the motor pulley and mount the new one.
Remount the snap ring, washer and arm with idler.
Remount the belt around the motor pulley.
Remount the motor with console and pulley.
Remount the spring and the drum belt. Make sure the belts are in position.
Connect the motor cable and remount the rear panel.
8.3 Replacement of the belt around the motor pulley
Disconnect the power to the machine.
Demount the rear panel.
Disconnect the motor cable (A).
Demount the spring and the drum belt (B).
Demount the two screws and remove the motor with console and pulley.
