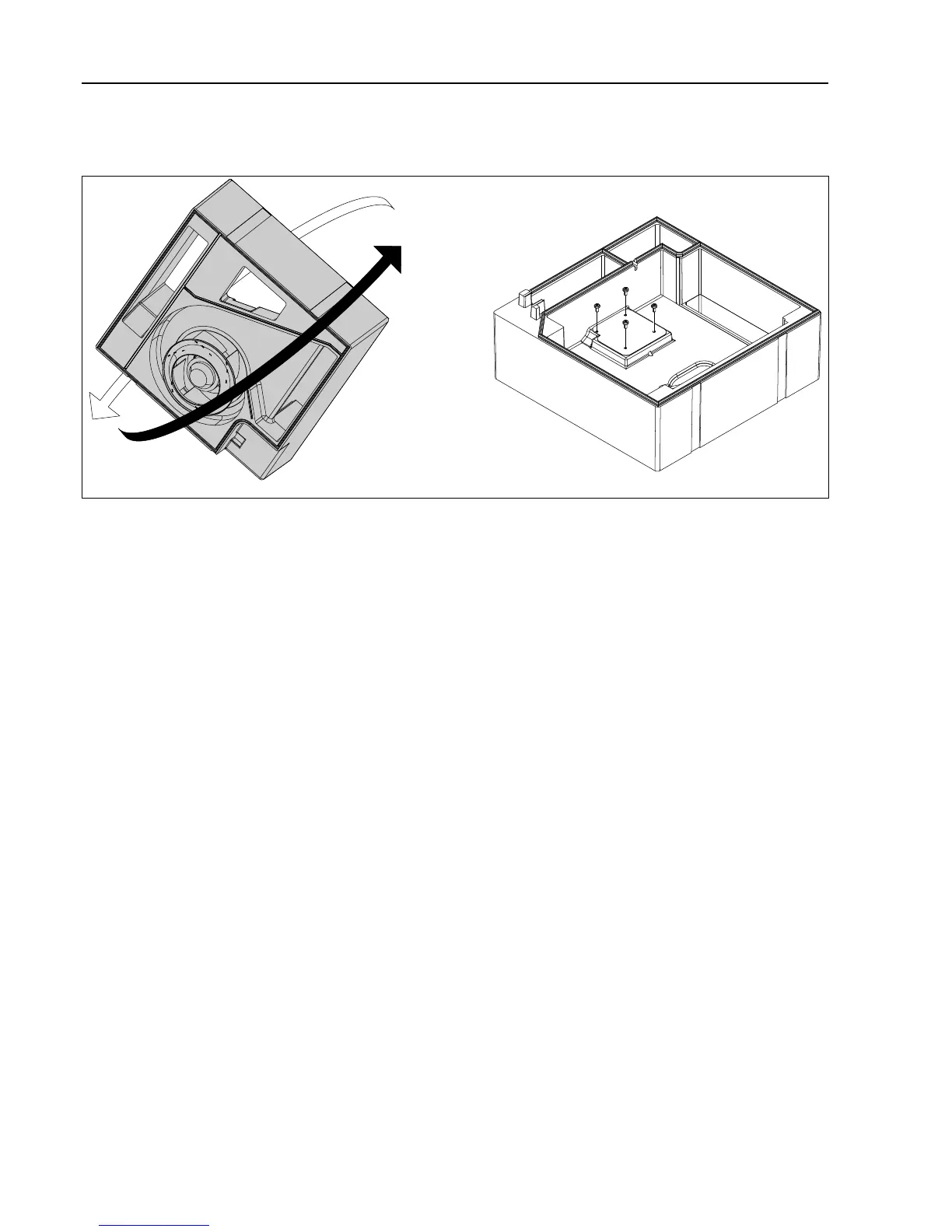

Put the middle section upside down.
Disconnect the fan cable.
Demount the fan. Pull the fan cable through the hole and remove the fan with cable.
Mount the new fan and connect the cable.
Before remounting the heat pump unit the cables need to be fixed with sealant. Fixate the cables with the sealant in
the heat pump unit.
Pull the cable up through the hole in the middle section. Mount the middle section, make sure all cables are fixed.
Pull the cable up through the top section and mount the top section.
Insert the heat pump and remount the cover panel with the cable and connect the cable.
Close the heat pump unit door and fasten the screws on top of the heat pump unit door.
Connect the water and drain hoses.
Connect the power to the machine.
9.10 Final approval
This final approval must be performed if the machine has been separated from the heat pump unit.
Note!
A final approval test must be performed on the complete machine; tumble dryer and heat pump unit before
the machine can be used.
A high voltage test and an earth continuity test must be performed by a qualified electrician.
