9.5 Assembling the units
Note!
The heat pump unit must only be put down on the feet. It may be tilted a bit on the sides but not completely
tipped over. This will damage the heat pump.

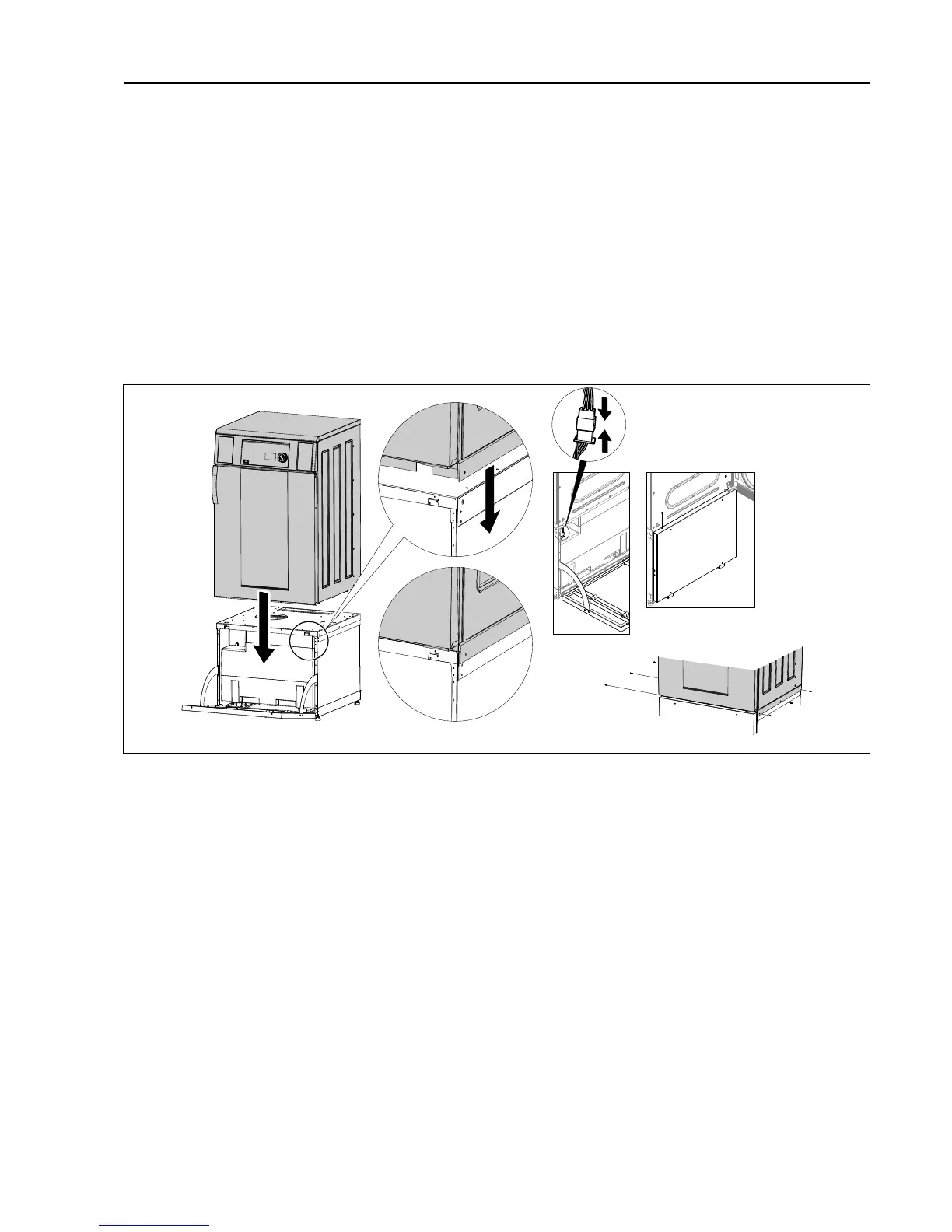

• Place the tumble dryer on top of the heat pump unit.
Note!
The heat pump unit door must be in open position when placing the tumble dryer on top of the heat pump
unit.
• The tumble dryer shall be put down on the heat pump unit so that the lower panel of the tumble dryer gets on the
outside of the upper panel on the heat pump unit.
• Connect the cable, close the heat pump unit door and fasten the screws on top of the heat pump unit door.
• Fasten the screws on each side.
• Connect the water and drain hoses.
• Connect the power to the machine.
