Service
Manual
37
10.3
Replacement
of
the
belt
around
the
drum

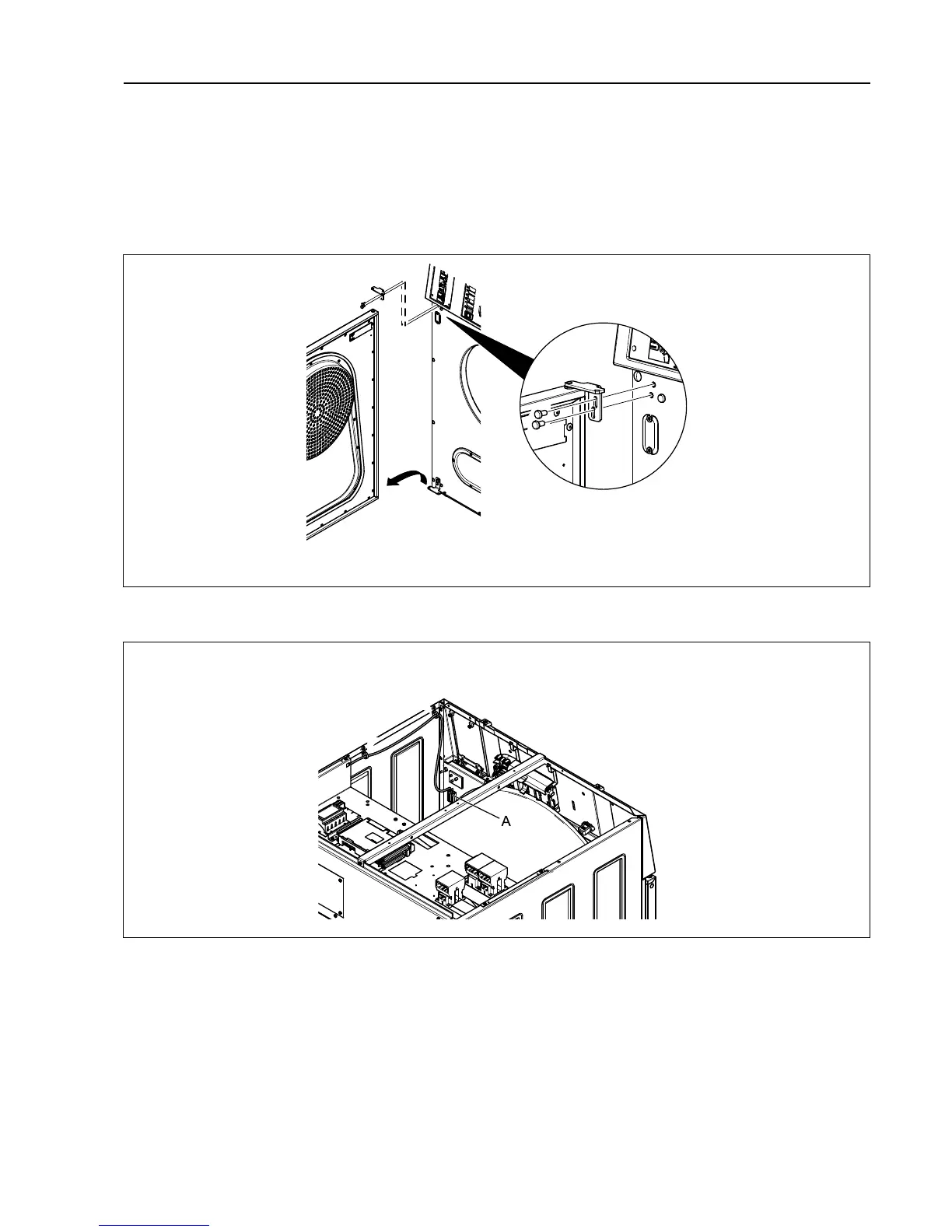

Disconnect
the
power
to
the
machine.
Demount
the
rear
panel
and
the
top
panel.
Demount
the
top
hinge
and
remove
the
door
.
Note!
Only
unscrew
the
two
screws
holding
the
hinge.
Do
not
unscrew
screw
that
secures
the
reinforcement
panel
at
the
back
of
the
front
panel.
fig.7962
Disconnect
the
door
switch
(A).
fig.7657A
36
38
Table of Contents
Default Chapter
1
Tumble Dryer
1
Table of Contents
3
1 Symbols
5
2 Technical Data
5
Drawing
5
Technical Data
7
3 Machine Presentation
8
4 Function Check
8
5 Sensors and Overheating Thermostats
9
Inlet Air
9
Heating Sensor (PT100)
9
Outlet Air
10
Heating Sensor (NTC-Sensor)
10
6 Door
11
Door Switch
11
Reversing the Door
12
7 Filter
14
Replacement of the Special Filter
14
8 Motor
15
Replacement of Motor
15
Replacement of Motor Pulley
16
Replacement of the Belt Around the Motor Pulley
17
9 Heat Pump Unit
18
General
18
Function
19
Drawing
19
Separating the Units
20
Assembling the Units
21
Removing the Heat Pump
22
Separating the Heat Pump Unit
22
Replacement of Heat Pump Unit Door
23
Replacement of Fan
25
Final Approval
26
10 Drum
27
Replacement of Drum
27
Replacement of Bearing
32
Replacement of the Belt Around the Drum
37
Replacement of Rear Sealing
42
11 Control Panel
48
Control System
48
Description
48
Connections
49
Replacement of Control System CPU
50
Control Knob
55
Replacement of Control Knob
55
12 O Modules
57
General
57
Replacement of I/O Module
59
External Connections to I/O Module Type 2
61
Circuit Diagram of Function Options for I/O Module Type 2
62
1Central Payment (2J)
62
3External Coin Meter/Central Payment (2K)
63
4Price Reduction (2K)
64
13 Troubleshooting
64
General
64
Error Code
66
Description of Error Codes and Causes
70
Main Common
70
Main Washer
71
Main Dryer
76
Main Barrier
82
Main W&D
85
Main Dryer
86
Drum Motor Common
87
Drum Motor Ewd
88
Drum Motor Keb
92
Drum Motor Obiwan
101
Fan Motor Common
104
Internal Com
105
Internal Com. I/O Type 10
107
Internal Com. I/O Type 6
109
External Com. Payment
109
External Com. Cmis
110
Internal
111
14 Maintenance
112
Clean the Glide Surface for the RMC Graphite Collector
112
Clean the Area Around the Drum
113
Air Intake, Fan House and Fan Motor
113
Special Filter
114
Clean the Water Valve
114
Maintenance of Heat Pump
115
1Clean Inside of the Heat Pump Unit
115
