Service Manual

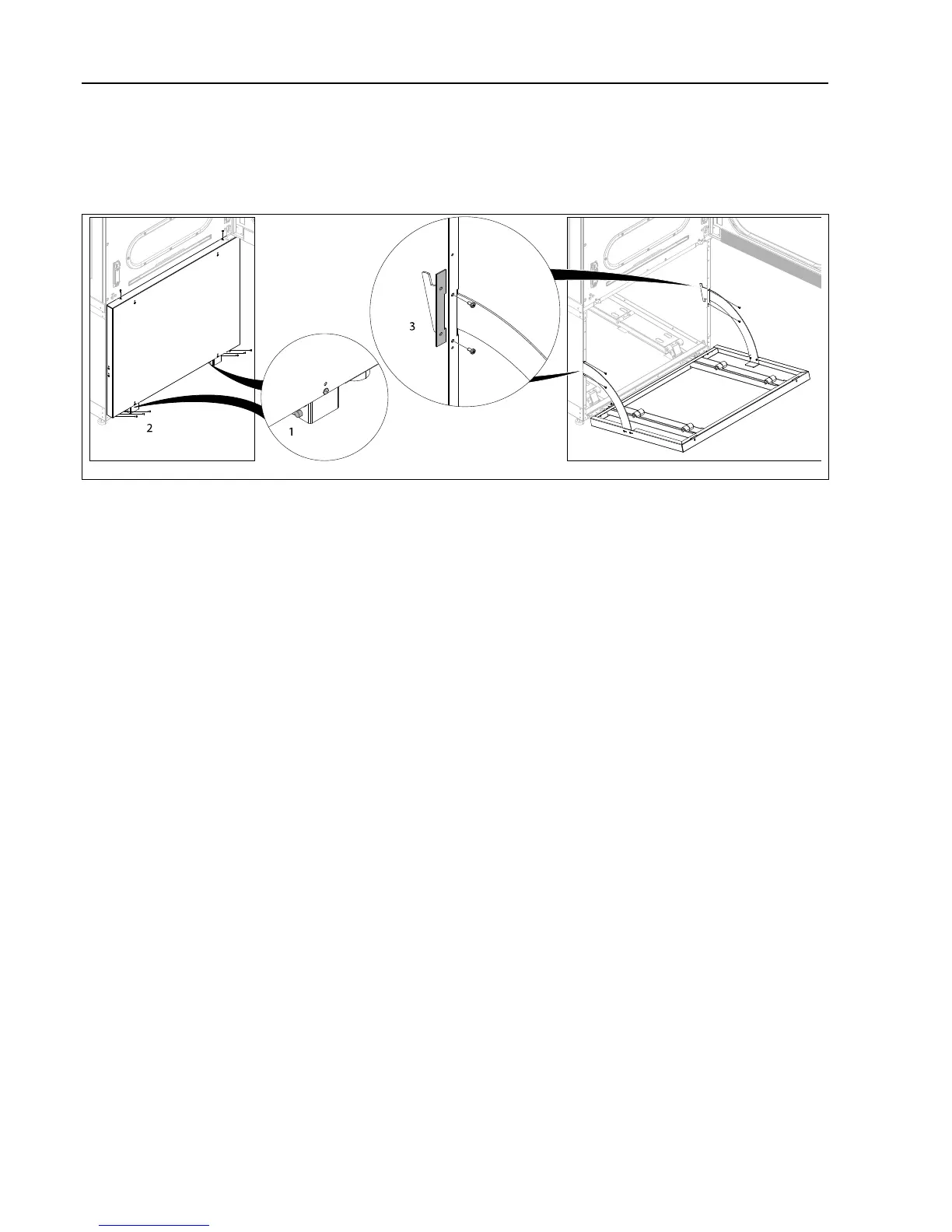

Demount the heat pump unit door:
1. Demount the shaft on each side.
2. Demount the three screws on each side below the heat pump unit door.
3. Open the heat pump unit door and remove the two screws and protection panel on each side. Lift the heat pump
unit door up and off the heat pump unit.
Mount the new heat pump unit door.
Fasten the protection panel and screws on each side.
Close the heat pump unit door and fasten the screws on each side below the heat pump unit door.
Mount the shaft on each side.
Open the heat pump unit door again and insert the heat pump and remount the cover panel with the cable and con-
nect the cable.
Close the heat pump unit door and fasten the screws on top of the heat pump unit door.
Connect the water and drain hoses.
Connect the power to the machine.
