Service Manual

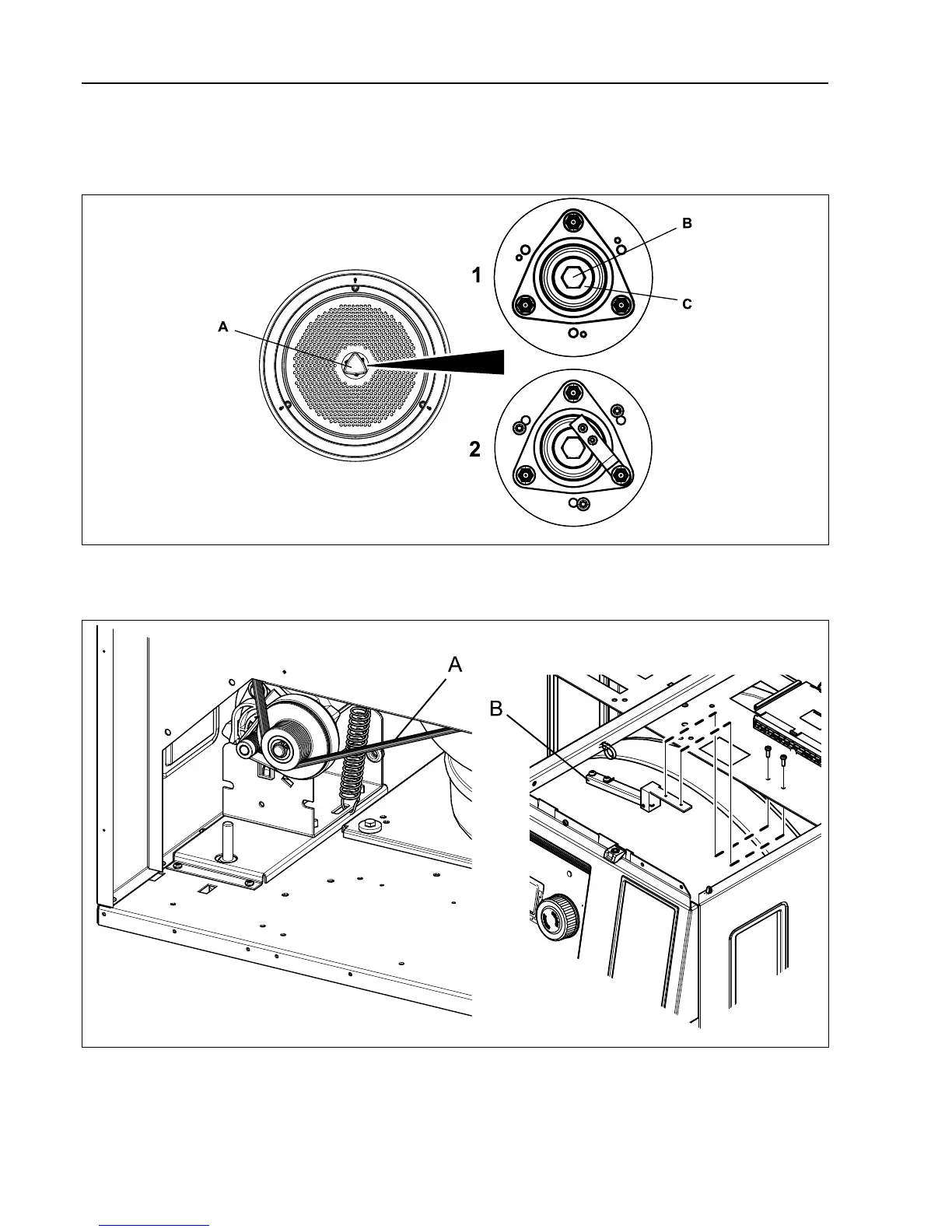

Remove the screws and the bearing house (A).
1. Shows a machine without RMC. Remove the bolt (B) and the washer (C).
2. Shows a machine with RMC. Loosen the screw and pull the RMC flange to the side in order to remove the bolt
(B) and the washer (C).
fig.7231A
Remove the belt (A) from the pulley.
Demount the RMC with arm (B) above the drum.
fig.7965
