46
Service Manual

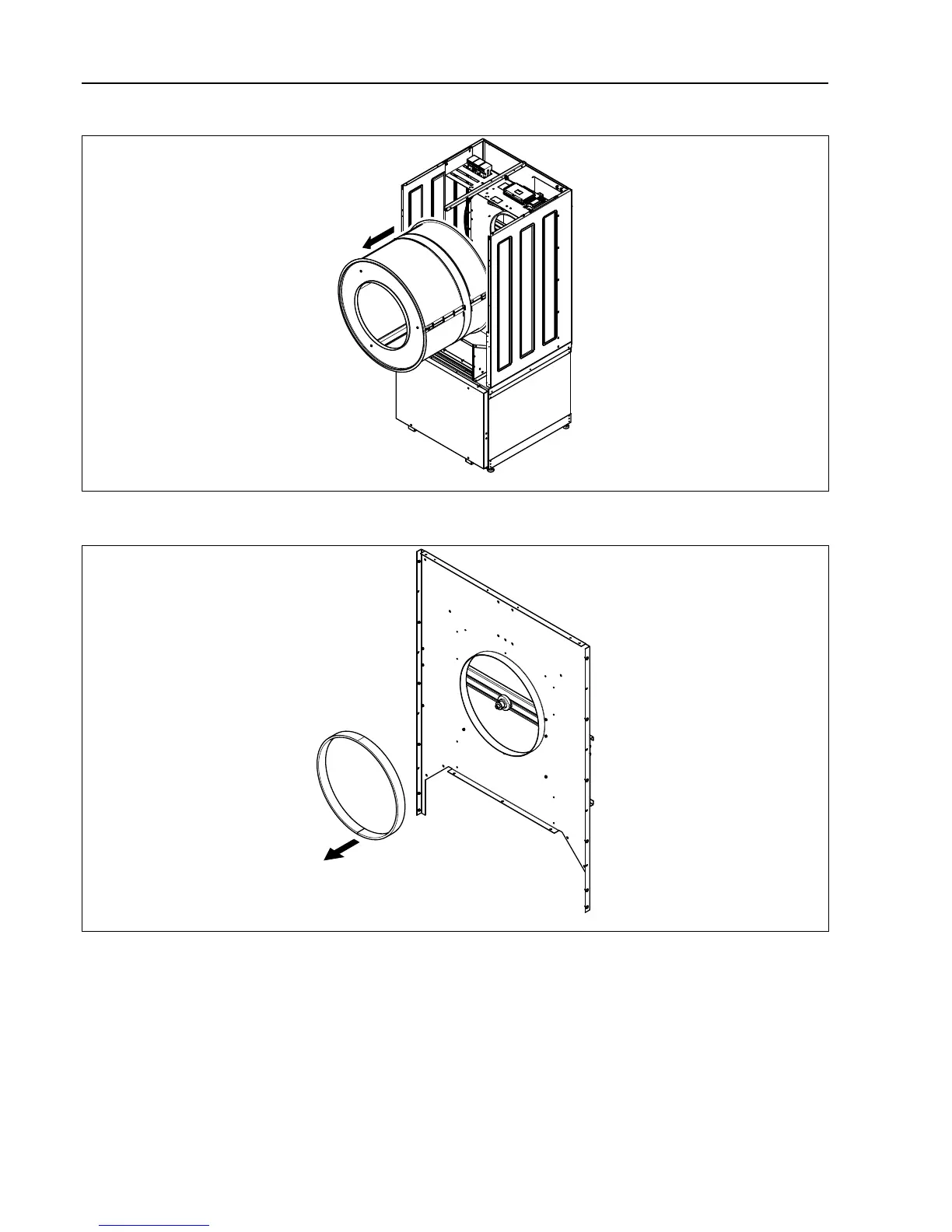

Carefully lift out the drum.
fig.8045
Remove the screws and remove the outer sealing plate.
fig.7969
