Electrolux T5190LE - Page 56

56
Service Manual

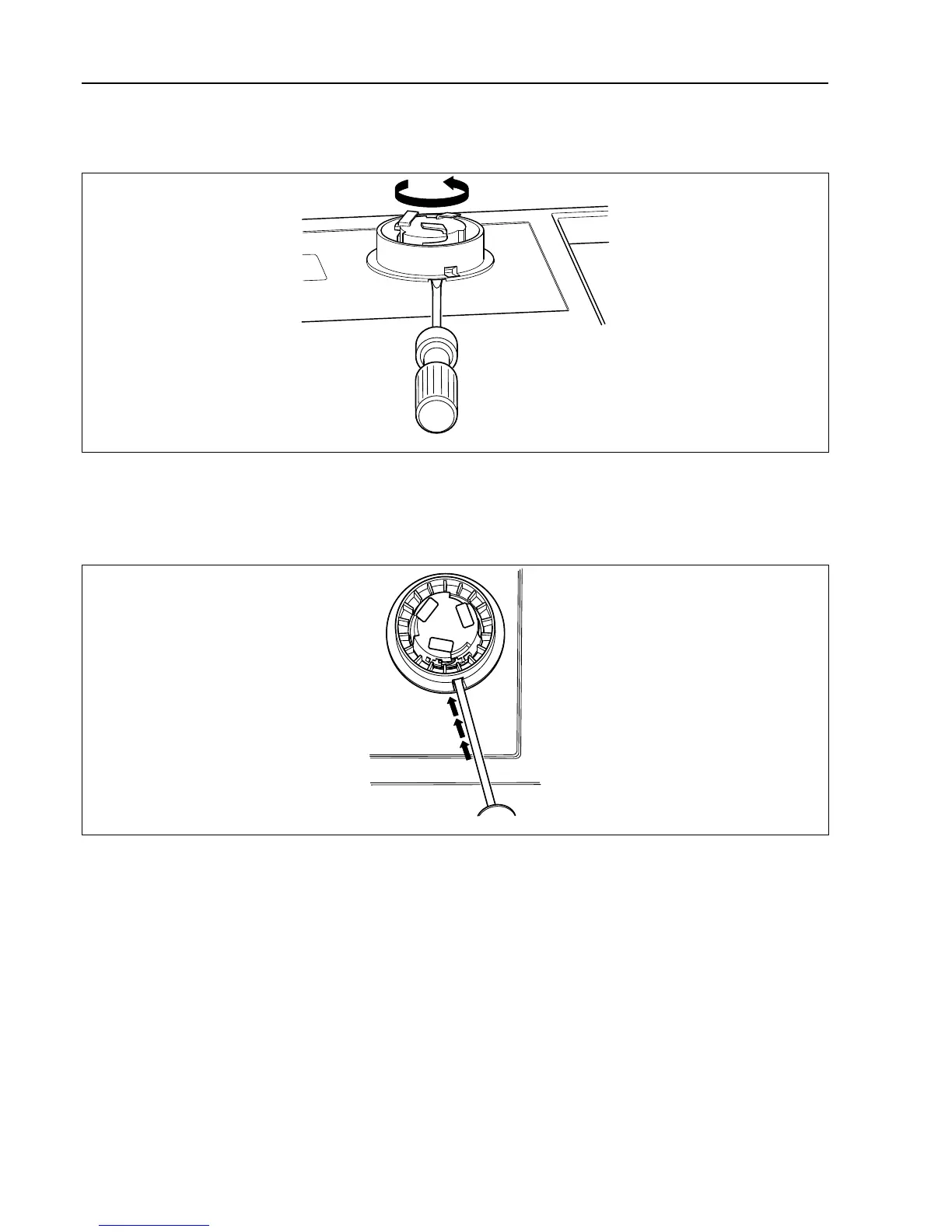

Cover ring
When the control knob is removed, insert the screwdriver in the lower hole and press gently. Turn the cover ring
counter-clockwise until it is possible to remove the cover ring.
fig.7490
Mount the new cover ring and rotate it clockwise until it is in position.
Rotate the inner knob until the locking device is pointing downwards.
Insert the screwdriver and press the locking device.
fig.7494
