58
Service
Manual
Location

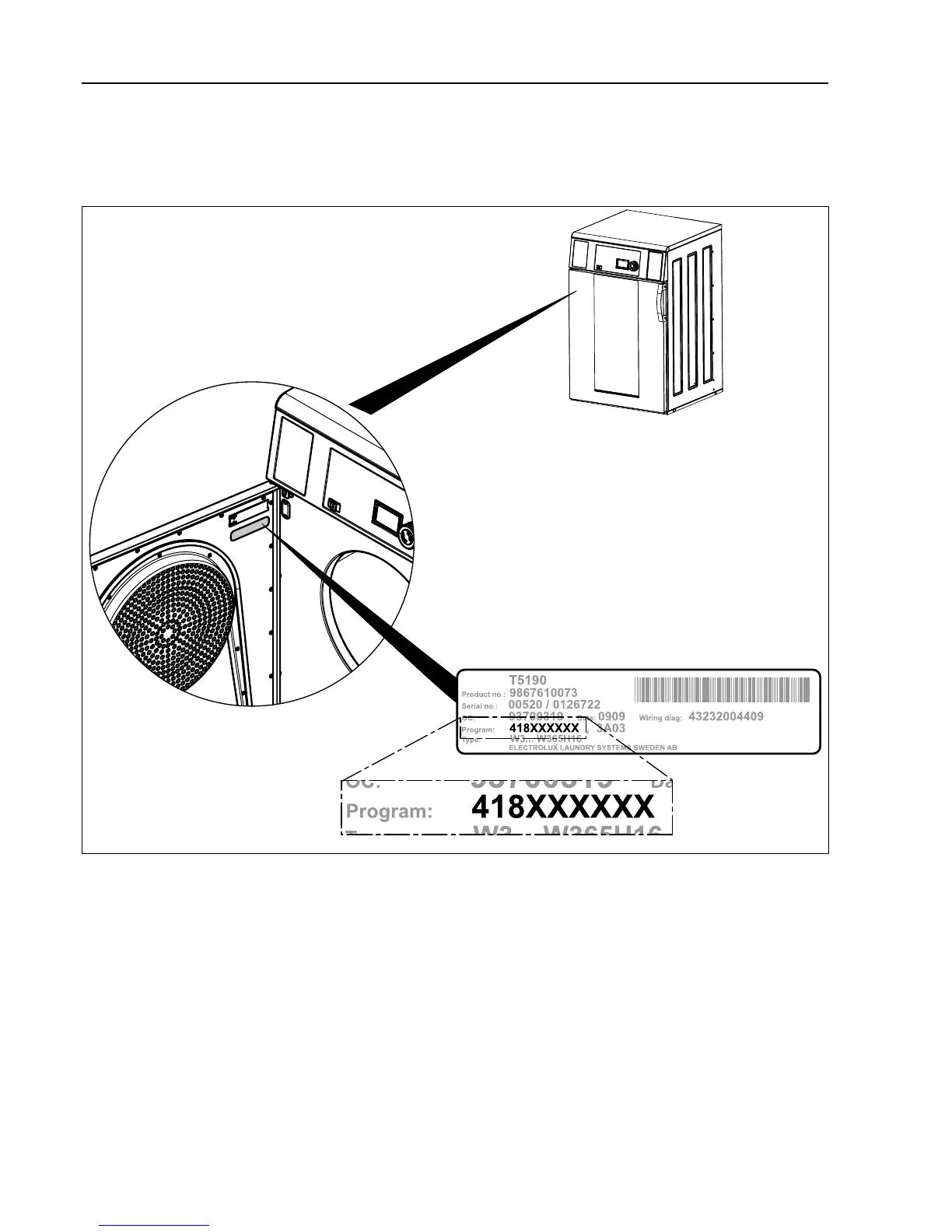

The
parameter
software
installed
in
the
machine’s
program
device
on
delivery
is
specified
at
the
front
and
back
of
the
machine.
Using
this
article
number
,
you
can
find
the
program
designation
and
thereby
identify
I/O
module
function
options
on
the
web.
fig.W00422
57
59
Table of Contents
