60
Service Manual
Insert the new module and make sure it is in position.
Connect the electrical connections in the same way as before.

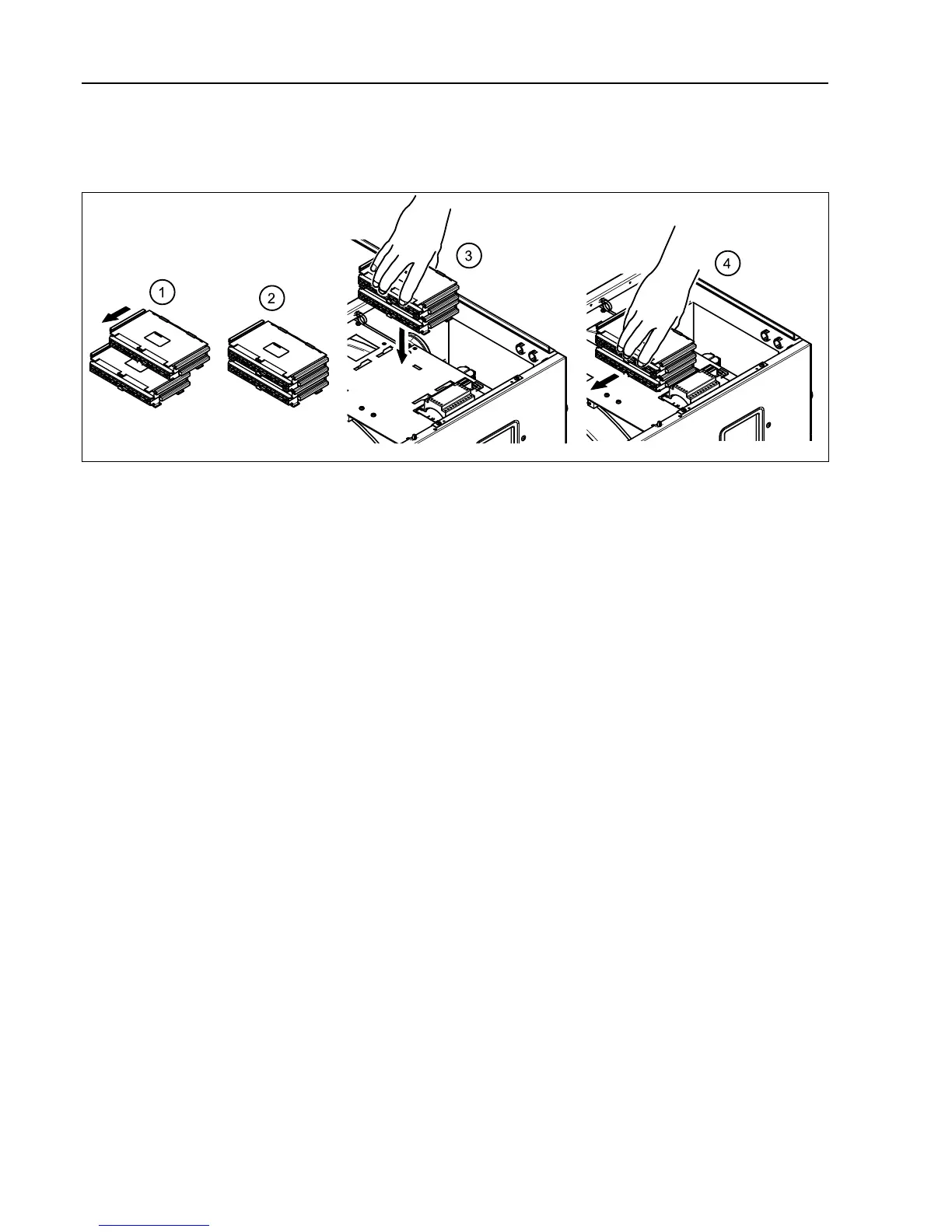

If both I/O module type 81 and I/O module type 2 is to be replaced it is recommended to fit the modules together be-
fore mounting in the machine.
fig.7978
Remount the top panel.
Connect the power to the machine.
