Motor

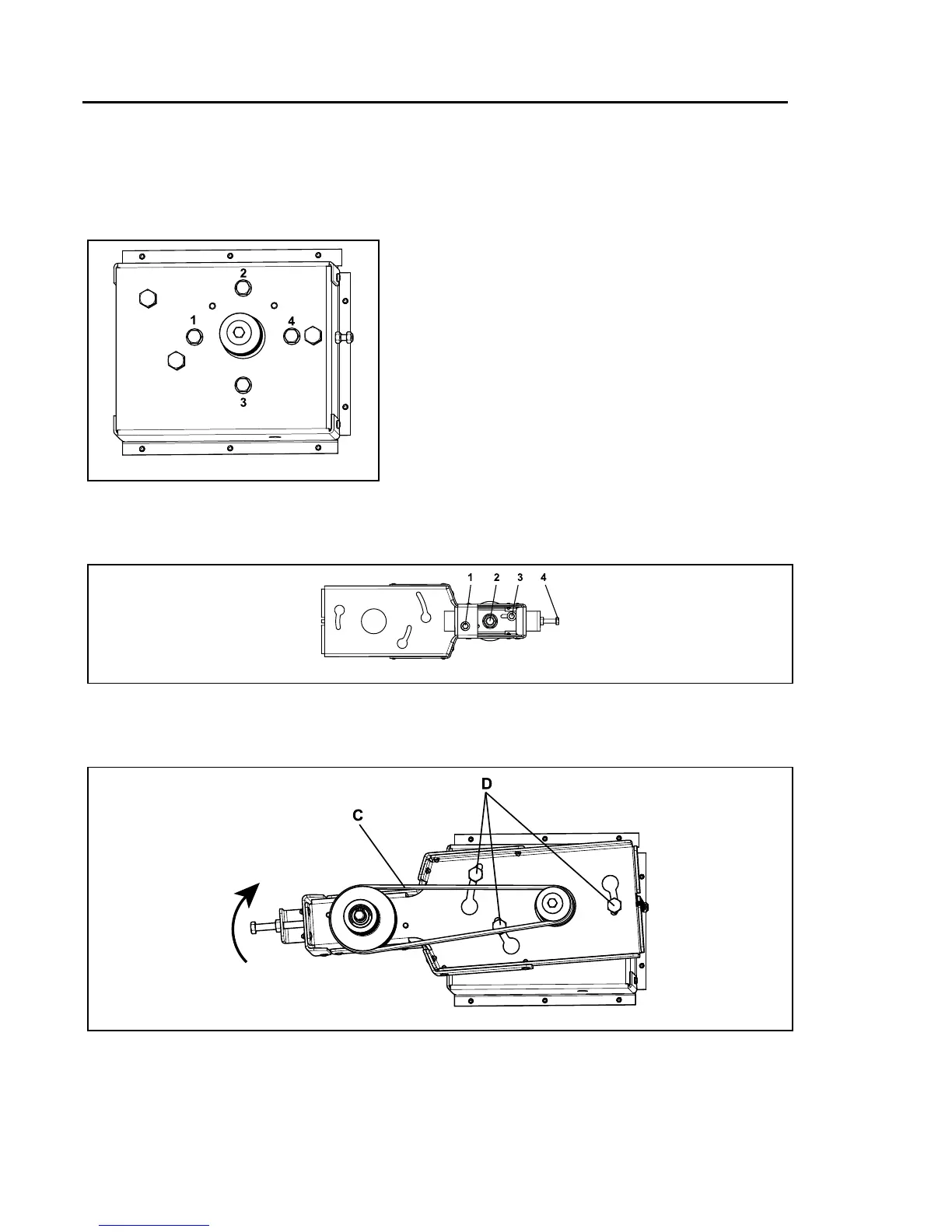

Demountthemotorbyunscrewingthefourscrews.
Mountthenewmotor.Tightenthescrewscrosswise(1,4,2and3)withtighteningtorque16.5
Nm±3.
28
1
2
3
4
g.7221A
Inordertofastenthebeltagain,rstloosenthefourscrewsabit.
29
1 2 3 4
g.490377800
Fastenthetensionarmonthemotorpanelintheholesandturnitclockwiseuntilitisinposition.
30
C
D
g.7224A
