Motor
29

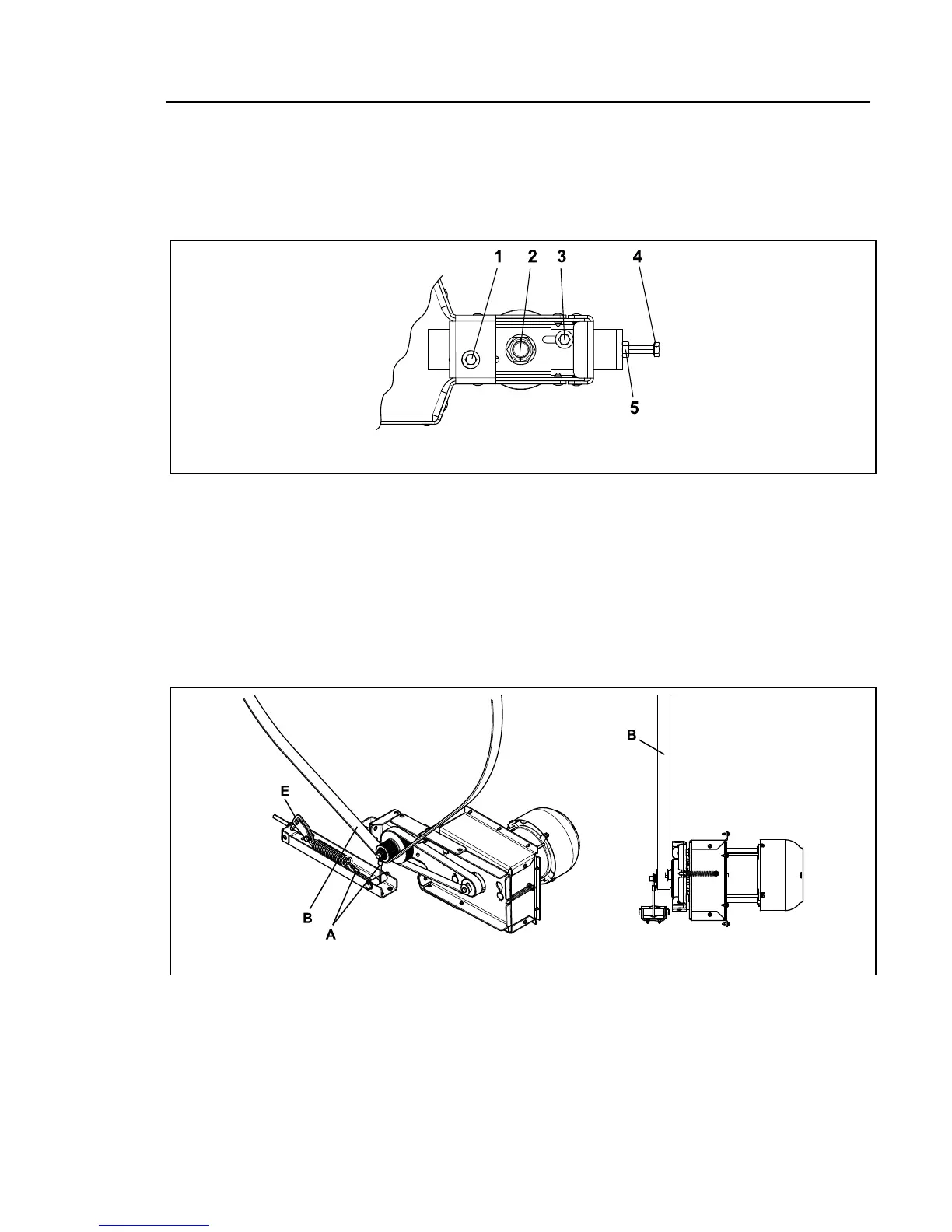

Putthebeltinposition(C)andtightenthescrews(1,2,3,4startingwith4).
Checkthebelttensionwithafrequencymeaterorsimilar.Thefrequencyshallbe80Hz±5.
Adjustifnecessary.Checkthat5istightened.
31
1 2 3 4
5
g.49077800A
Remountthemotormoduleinthemachine.
Fastenthebelt(B)andthewire(A).Makesurethebeltisinposition.
Tightenthebelttensionerwithatorquewrenchbypullingthetensionplate(E)clockwiseuntil
itisinposition.
Checkthebelttensionwithafrequencymeaterorsimilar.Thefrequencyshallbe75Hz±5.
Adjustifnecessary.
32
A
B
E
B
g.7220D
Connectthemotorcable.
Remountthecoverpanelandtherearpanels.
Note!
ThemachinewillNOTworkwithoutthecoverpanel.
