Controlpanel
97

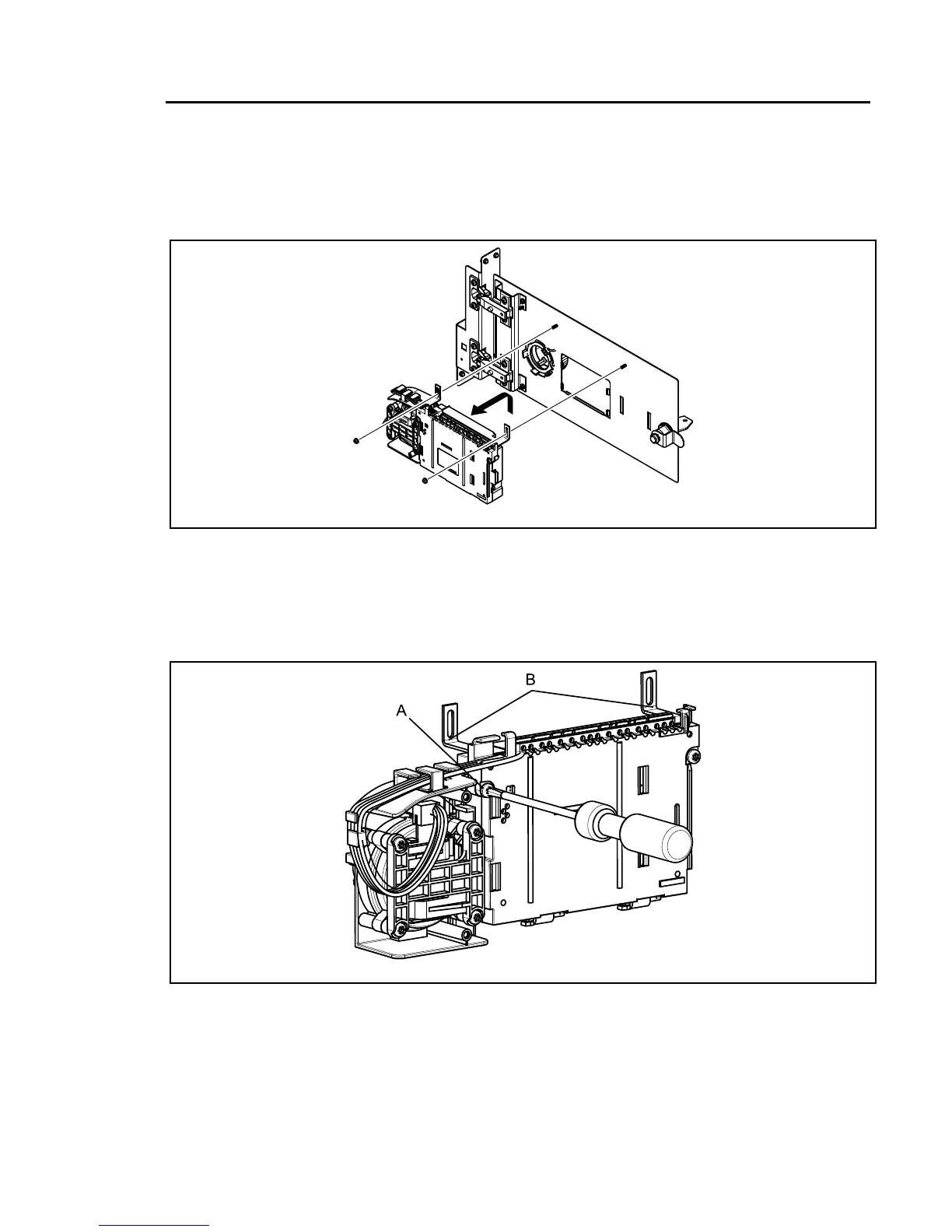

LoosenthenutsholdingthecontrolsystemCPUontothepanel.
DemountthecontrolsystemCPUbyrstpushingthecontrolsystemCPUupwardsuntilitstops
andthenremoveit.
149
g.7512
DemountthecontrolknobunitfromthecontrolsystemCPUbyunscrewingthescrew(A)abit
(4–5mm)untilthecontrolknobunitloosens.
Demountthetwogroundingbrackets(B).
150
B
A
g.7510
