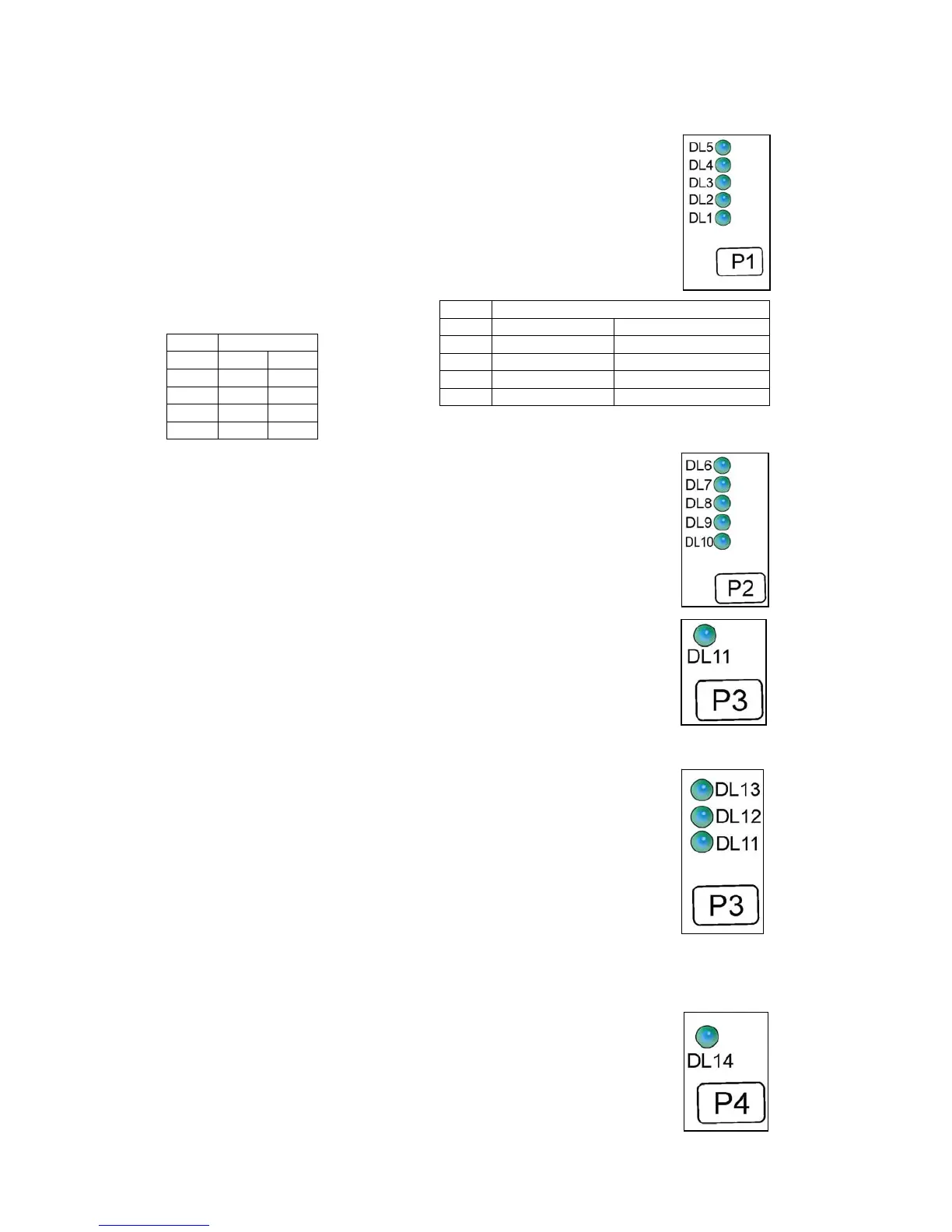

4.2.1.4 Pushbuttons and LEDs
The functions of each button are defined by the configuration of the appliance.
• Button no. 1: this button is configurable and is related to LEDs (DL16÷DL5).
Depending on the configuration of the appliance, it can be connected both to
the temperature regulation and the spin speed regulation. Press it in sequence
to choose your desired regulation.
Depending on the configuration of the appliance, different combinations can
be obtained. The tables below contain some examples of combinations
between temperature and spin
• Button no. 2: this button is configurable and is related to LEDs
(DL6÷DL10).
The description of its functions is the same as the one for pushbutton 1.
• Button no. 3: this button is configurable and is related to LED (DL11), in
washing machines. Depending on the configuration of the appliance, it can
perform the function of:
Normal, daily, light, quick, super quick, intensive, economy, pre-wash, easy-
iron, bleach, stains, super rinse, night cycle, rinse hold, half-load, reduced spin
speed, no spin.
In washer-dryers, it is related to LEDs (DL11÷DL13) and performs the function
of automatic drying at three levels:
- Extra
- Wardrobe
- Iron.
• Button no. 4: this button is configurable and is related to LED (DL14).
In washing machines, it can perform the function of:
Normal, daily, light, quick, super quick, intensive, economy, pre-wash, easy-
iron, bleach, stains, super rinse, night cycle, rinse hold, half-load, reduced spin
speed, no spin.
In washer-dryers, it performs the function of:
Time-drying
LEDs Temperature
DL5 90° 90°
DL4 60° 60°
DL3 40° 50°
DL2 30° 40°
DL1 0° 30°
LEDs Spin
DL5 1200 1400
DL4 900 900
DL3 700 700
DL2 Night cycle Night cycle
DL1 Rinse hold Rinse hold
