SOI/DT 2010-03 dmm 6/78 599 72 84-41
3 TC4
3.1 GENERAL CHARACTERISTICS

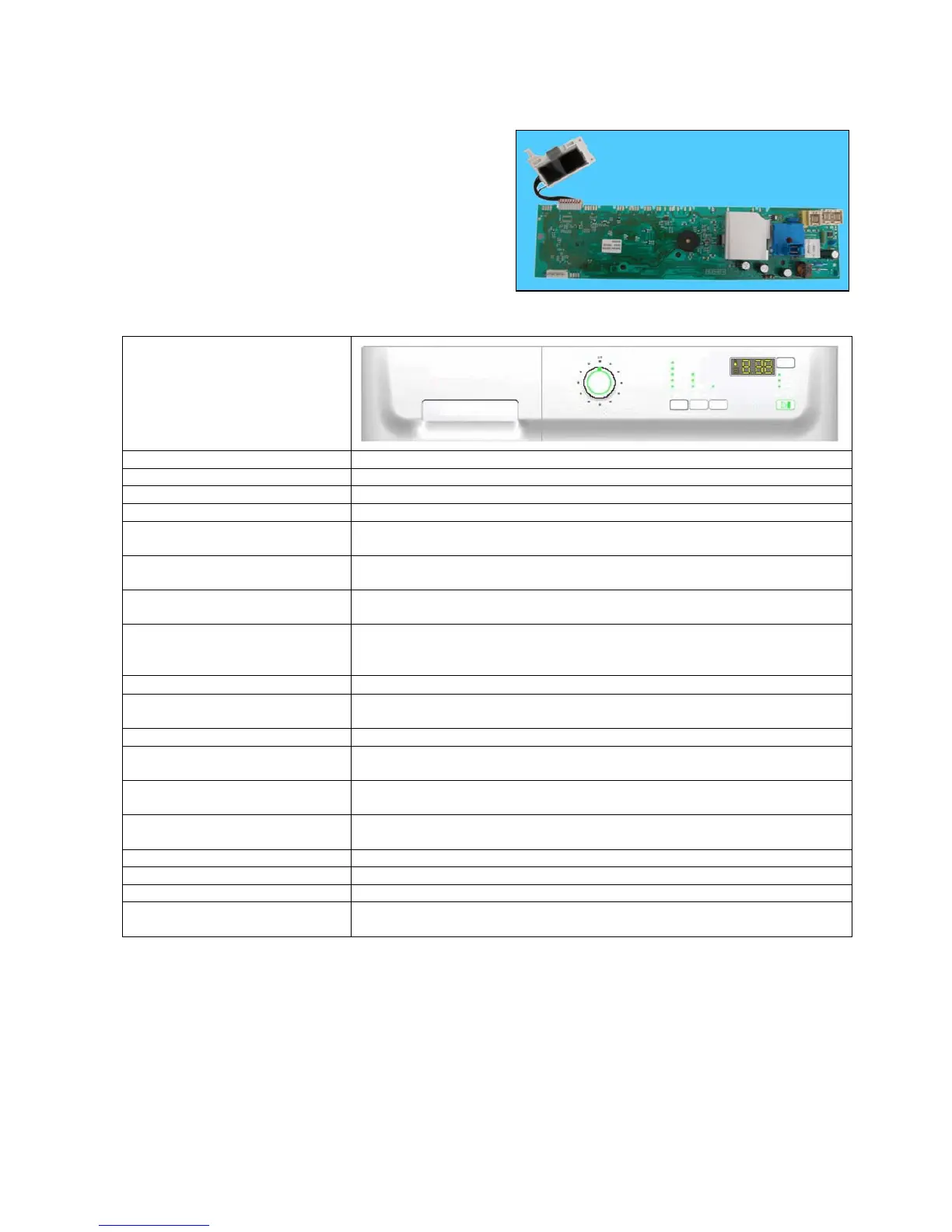

The ENV06 electronic control system consists of a
single PCB, which incorporates the power, control and
display (where the LCD display is connected) functions.
The programme selector is incorporated in the board.
The PCB is mounted on a casing fitted to the control
panel.
3.1.1 General characteristics WM
Version
TC4
No. buttons
maximum 5 (4 options + start/pause)
No. of LEDs
maximum 14 + LCD display
Programme selector
15-21 positions with main switch (incorporated in the PCB)
Serial port
DAAS-EAP communication protocol up to 115,200 baud
Power supply voltage
220/240V
50/60 Hz (configurable)
Washing type
Traditional with "Eco-ball" sphere
Jet-System
Rinsing system
Traditional with "Eco-ball" sphere
Jet-System
Motor
Collector, with tachometric generator
Two-pole asynchronous, with three-phase tachometric generator (with
Inverter)
Spin speed
600 ÷ 1,600 rpm
Anti-unbalancing system
FUCS (for universal motors)
AGS (for asynchronous motors with Inverter)
Water fill
1 solenoid valve with 1 inlet – 2 or 3 outlets
Detergent dispenser
3 compartments: pre-wash/stains, wash, conditioner
4 compartments: pre-wash, wash, conditioner, (bleach)
Control of water level in the
tub
Electronic/analogue pressure switch
Door safety interlock
Traditional (with PTC)
Instantaneous
Heating element heat output
1950W with thermal fuses incorporated
Temperature control
NTC sensor incorporated in the heating element
Buzzer
Traditional incorporated in the PCB
Sensors
Water fill gauge (flowmeter)
Aqua control
