Electrolux TC2 - TC2 Washing Machine Series

SOI/DT 2010-03 dmm 23/78 599 72 84-41
5 TC2
5.1 GENERAL CHARACTERISTICS

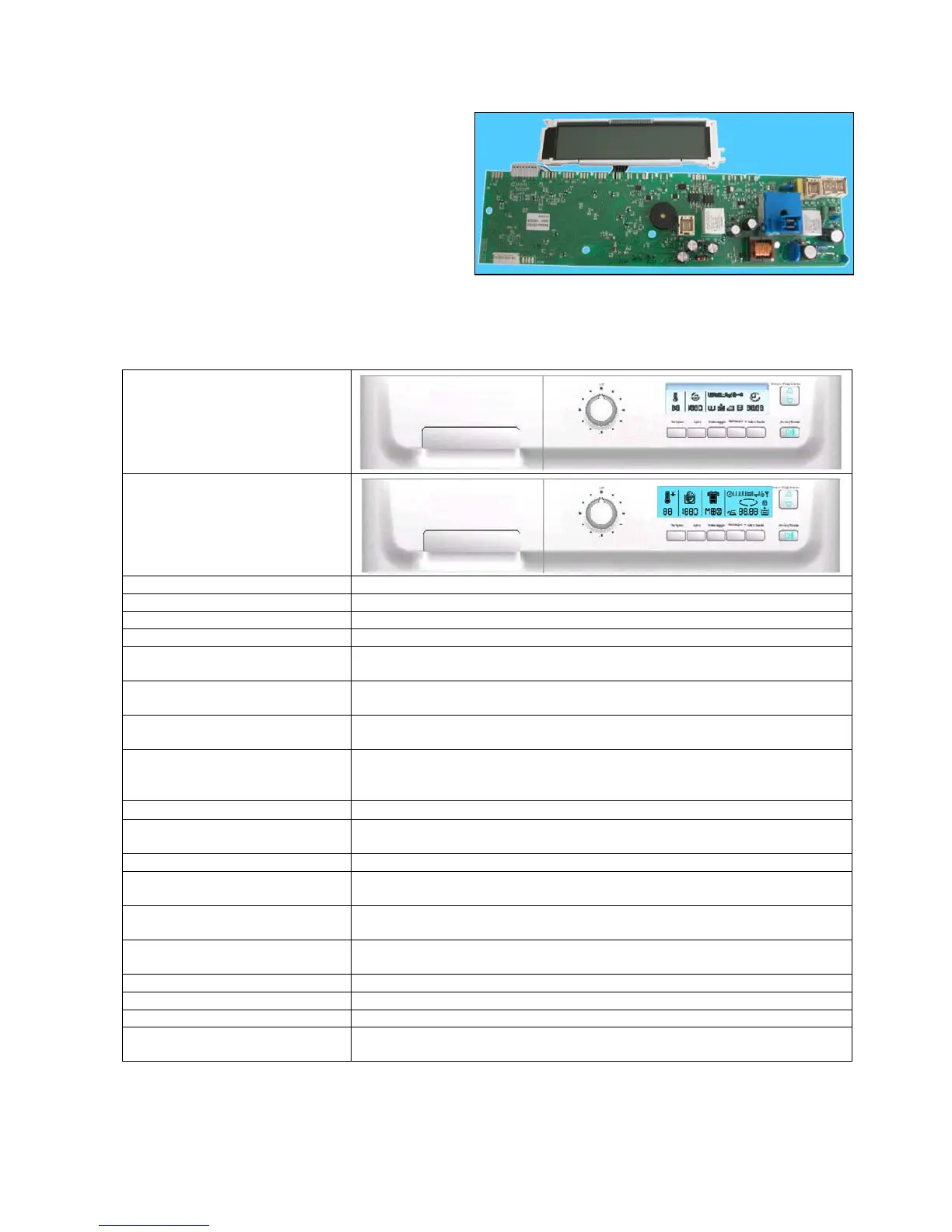

The ENV06 electronic control system consists of a
single PCB, which incorporates the power, control
and display functions where the LCD display is
connected and the programme selector is
incorporated in the board.
The PCB is mounted on a casing fitted to the control
panel.
5.1.1 General characteristics WM
Version
TC2 (TIME MANAGER)
Version
TC2 (PROPORTIONAL)
No. buttons
 maximum 8 (5 options + 1 start/pause + 2 for time driven)
No. of LEDs
 maximum 2 + LCD display
Programme selector
 15-21 positions with main switch (incorporated in the PCB)
Serial port
 DAAS-EAP communication protocol up to 115,200 baud
Power supply voltage
 220/240V
 50/60 Hz (configurable)
Washing type
 Traditional with "Eco-ball" sphere
 Jet-System
Rinsing system
 Traditional with "Eco-ball" sphere
 Jet-System
Motor
 Collector, with tachometric generator (Universal)
 Two-pole asynchronous, with three-phase tachometric generator (with
Inverter)
Spin speed
 600 ÷ 1,600 rpm
Anti-unbalancing system
 FUCS (for universal motors)
 AGS (for asynchronous motors with Inverter)
Water fill
 1 solenoid valve with 1 inlet – 2 or 3 outlets
Detergent dispenser
 3 compartments: pre-wash/stains, wash, conditioner
 4 compartments: pre-wash, wash, conditioner, (bleach)
Control of water level in the
tub
 Electronic/analogue pressure switch
Door safety interlock
 Traditional (with PTC)
 Instantaneous
Heating element heat output
 1950W with thermal fuse incorporated
Temperature control
 NTC sensor incorporated in the heating element
Buzzer
 Traditional incorporated in the PCB
Sensors
 Water fill gauge (flowmeter)
 Aqua control
