8 ALARMS
8.1 Displaying the alarms to the user

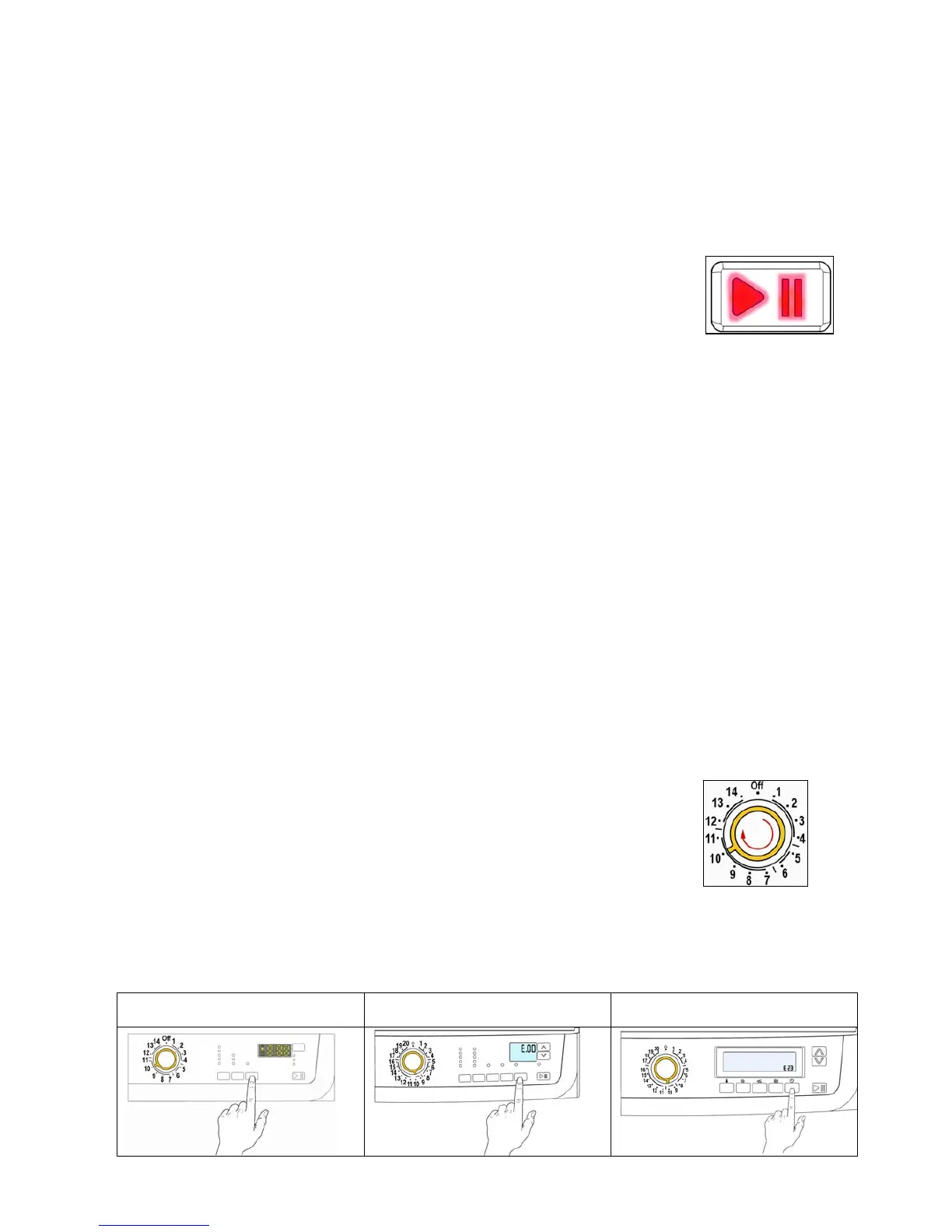

The alarms are displayed by the flashing red LED of the START/PAUSE button and simultaneously through the
LCD Display.
The alarms displayed to the user are listed below:
ª E10 - Water fill difficulty (tap closed)
ª E20 - Drain difficulty (filter dirty)
ª E40 - Door open
they are represented through the flashing of the red LED inside the START/PAUSE
button and can be solved directly by the user;
The alarms listed below:
ª EF0 – Water leakage (Aqua Control System)
For its solution, the intervention of a Service engineer is required.
While for the alarm:
ª EH0 – Voltage or frequency outside the normal values
It is necessary to reset the normal conditions of the voltage and/or of the frequency of the electricity
line.
The alarms are enabled during the execution of the washing programme. With the exception of alarms
associated with the configuration and the power supply voltage/frequency, which are also displayed
during the programme selection phase.
The door can normally be opened (except where specified) when an alarm condition has occurred, on the
condition that:
• The level of the water in the tub is below a certain level.
• The water temperature is lower than 55°C.
• The motor has stopped.
Certain alarm conditions require that a drain phase be performed before the door can be opened for safety
reasons:
• Cooling water fill if the temperature is higher than 65°C.
• Drain until the analogue pressure switch is on empty, during a max. 3-minute time.
8.2 Reading the alarms
The last three alarms stored in the FLASH memory of the PCB can be displayed:
• Enter the diagnostic mode (para. 7.1)
• Irrespective of the type of PCB and configuration, turn the programme selector
knob clockwise to the tenth position
• the last alarm is displayed.
• to display the previous alarms, press the button to the left of the START/PAUSE button in sequence (as
shown in the figure).
• To return to the last alarm, press the START/PAUSE button.
Version TC4
Version TC3
“Time Manager” “Proportional”
Version TC2
“Time Manager” “Proportional”
