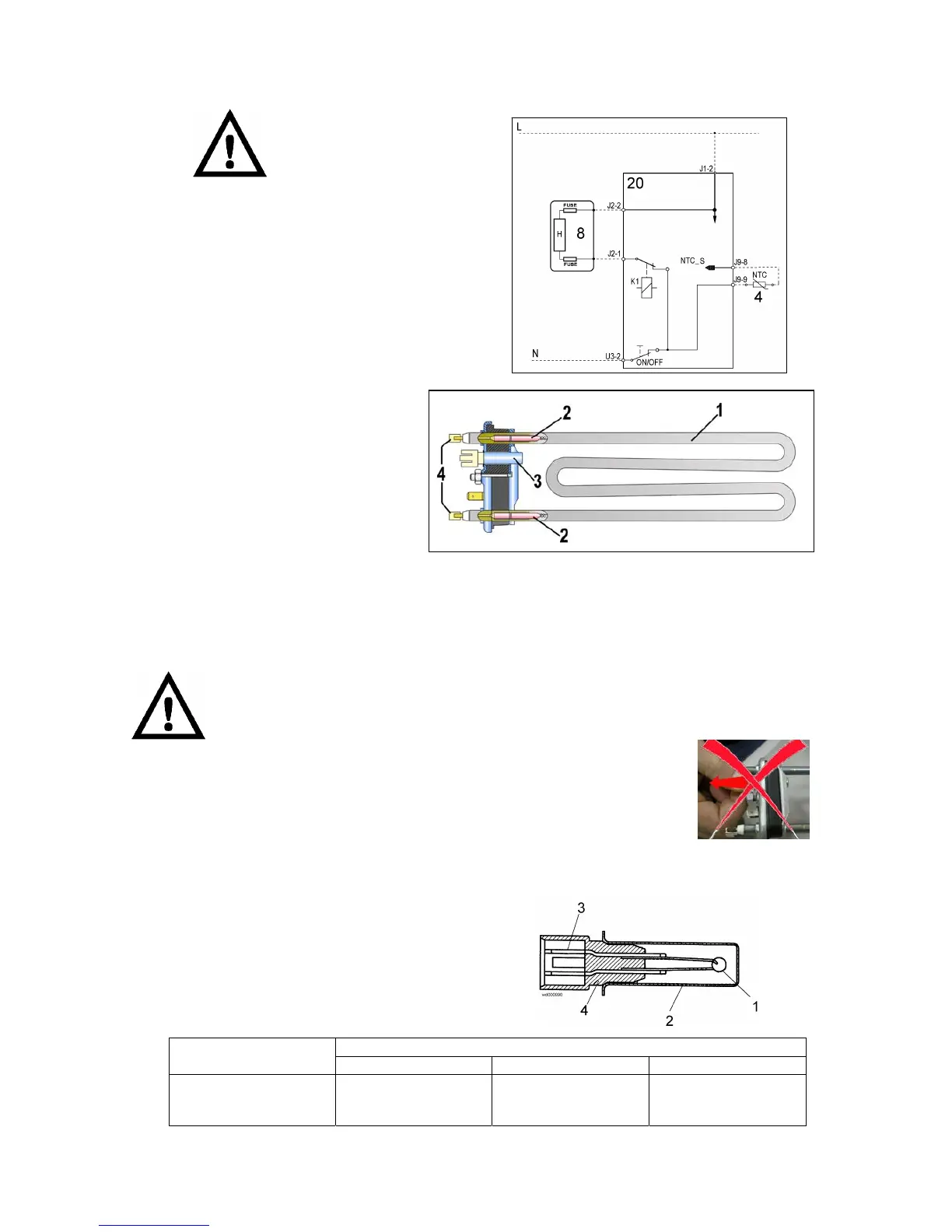

11.7 Heating
4 NTC temperature sensor
8 Heating element (with thermal fuses)
20 PCB
K1 Relay
1. Tubular casing
2. Thermal fuses
3. NTC probe
4. Connectors
The heating element is powered by a relay (K1) of the PCB and it is fitted with two thermal fuses, which
interrupt if the temperature degree exceeds the values to which they are calibrated.
WARNING
When replacing the heating element, do so with one with the same characteristics so as
not to compromise the safety of the appliance.
Do not remove/switch the NTC sensors between heating elements
11.8 Temperature sensor
The temperature is controlled by the PCB by means of an NTC temperature sensor incorporated in the heating
element.
1. NTC heating element
2. Metal capsule
3. Terminals
4. Plastic casing
RESISTANCE (Ω)
CONNECTOR
(ºC)
Rated value Maximum value Minimum value
20
60
80
6050
1250
640
6335
1278
620
5765
1222
660
