SOI/DT 2010-03 dmm 59/78 599 72 84-41

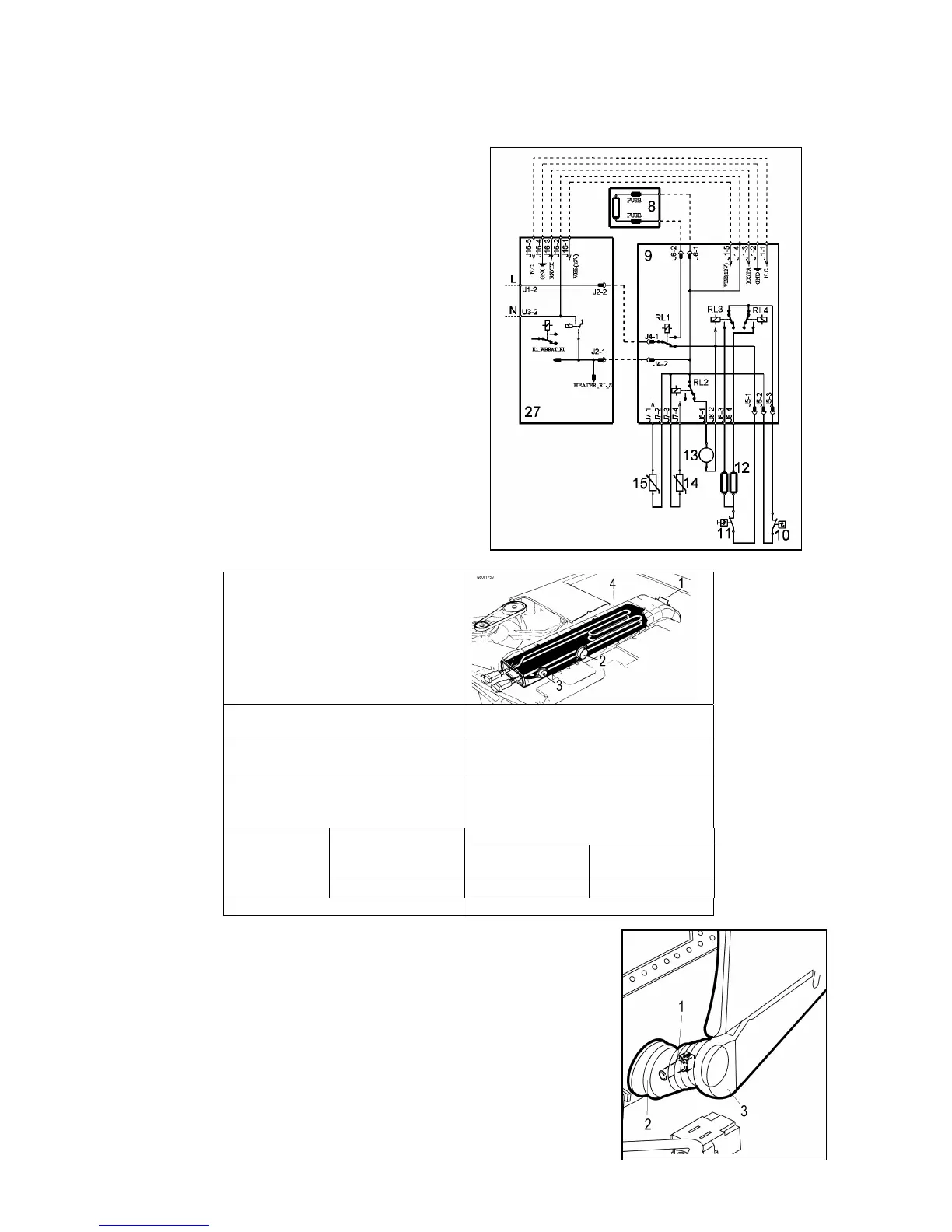

12.1 Temperature control
The drying temperature is controlled by an NTC sensor positioned on the duct; the heating element casing
features two safety thermostats (one of which is a manual-reset type).
8. Washing heating element
9. PCB - WD
10. Safety thermostat (auto-reset)
11. Safety thermostat (manual reset)
12. Drying heating element
13. Fan motor.
14. Drying control NTC sensor
15. Humidity control NTC sensor
27. Main circuit board
1. Drying temperature control
NTC sensor
2. Auto-reset safety thermostat
3. Manual reset safety
thermostat (150°C)
4. Drying heating element
NTC sensor: heating element at
25°C
5000Ω
Manual reset safety thermostat
Normally closed,
opens at 150°±5°C
Auto-reset safety thermostat
Normally closed
Opens at 110°±3°C
Closes at 94°±5°
Power
920+920 W
Power supply
voltage
230V 240
Heating unit
Resistance
56.5Ω+56.5Ω 61.5Ω+61.5Ω
Fan capacity
approx. 80 m
3
per hour
• Calculating the drying time:
In the automatic cycles the NTC sensor mounted on the
drying duct is used to calculate the drying time.
1. NTC temperature sensor
2. Tub-condenser tube
3. Drying condenser
