29. Door and door lock
6
438 9145-61/06
04.10
Service
Manual
Error codes
The door lock control has three LEDs that show
whether the door lock operates normally or
whether an error has been detected. During
normal operation, the LEDs blink when the drum
is not turning and are off when the drum rotates.
In case of an error, the three LEDs will show the
error condition according to the table below. Any
error codes are automatically cleared 5 minutes
after the error has been remedied. In case the
error occurred at the end of the programme, the
door also unlocks after 5 minutes.
LEDs Normal operation
ABC
●●● No error. The drum is not turning
(no water in drum) (– – –)
●●● Level switch B2 indicates water in
drum
when drum is stand-still (– – – – – –)
❍❍❍ No error. The drum is rotating
LEDs Error state
ABC
●●❍ Level guard B2 indicates water in drum
when the door lock is open (input X93
open).
❍●● Motor control indicates that motor is
operating when door lock is open
(input X94 closed).
●❍❍ No signal from rotation sensor B3
(frequency input X95 < 0.4 Hz) in spite
of the motor control indicating motor
operation.
❍●❍ No signal from motor control (input
X94 open) in spite of rotation sensor
B3 indicating motor operation
(frequency input X95 > 0.4 Hz).
●❍● Error in drive circuits for door lock
(output X96) or error in door lock/cable
harness for the door lock.
❍❍● Internal error in the door lock control.
❍ = no lit, ● = lit

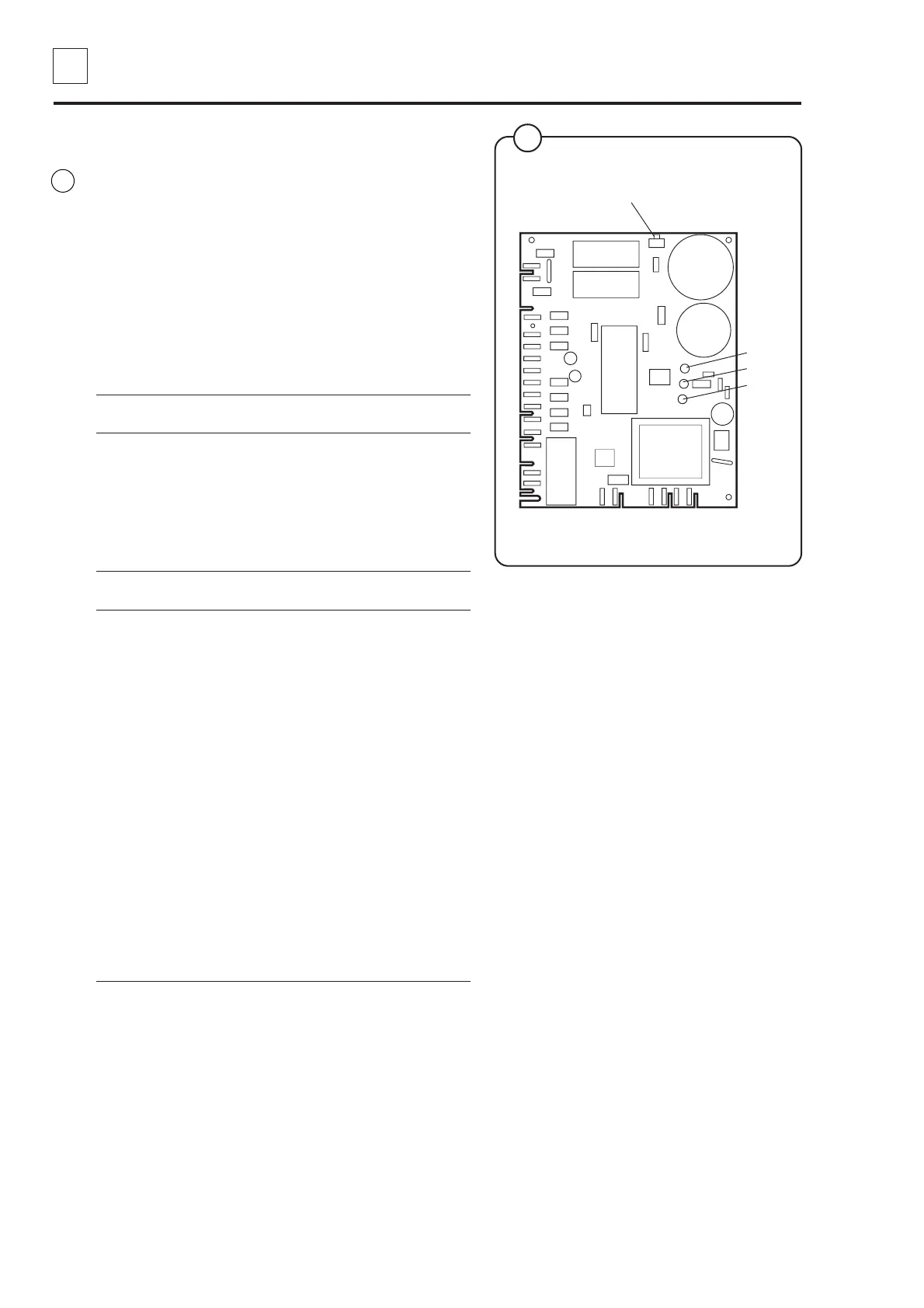

5184
Fig.
5
5
LEDs
A
B
C
Reset button
