3
40
40. Heating
438 9146-41/03
03.20
Service
Manual
Description
Electric heating
The heating system of the machine consists of:
• Three heating elements for heating the water
in the drum.
•A temperature sensor to detect the water
temperature in the drum.
•One or two heating contactors for switch-on/
switch-off of the heating elements.
The heating elements and the temperature
sensor are situated at the bottom of the outer
drum close to the edge. They can be accessed
front the front after the front plate is removed.
The contactor(s) is(are) placed in the rear control
unit.
Depending on the size of the machine, the
following heating elements are available:
Machine Heating element size
model (kW)
W365,
FOM71 CLS 3x0.665, 3x1, 3x1.8, 3x2.5
W375 3x0.665, 3x1, 3x1.8, 3x2.5
W3105 3 x 2.5, 3 x 3.33, 3x1
W3130 3 x 2 x 2.165 , 3x2x0.8
W3180 3 x 2 x 3.0
W3240 3 x 2 x 3.83
W3300 3 x 7.66

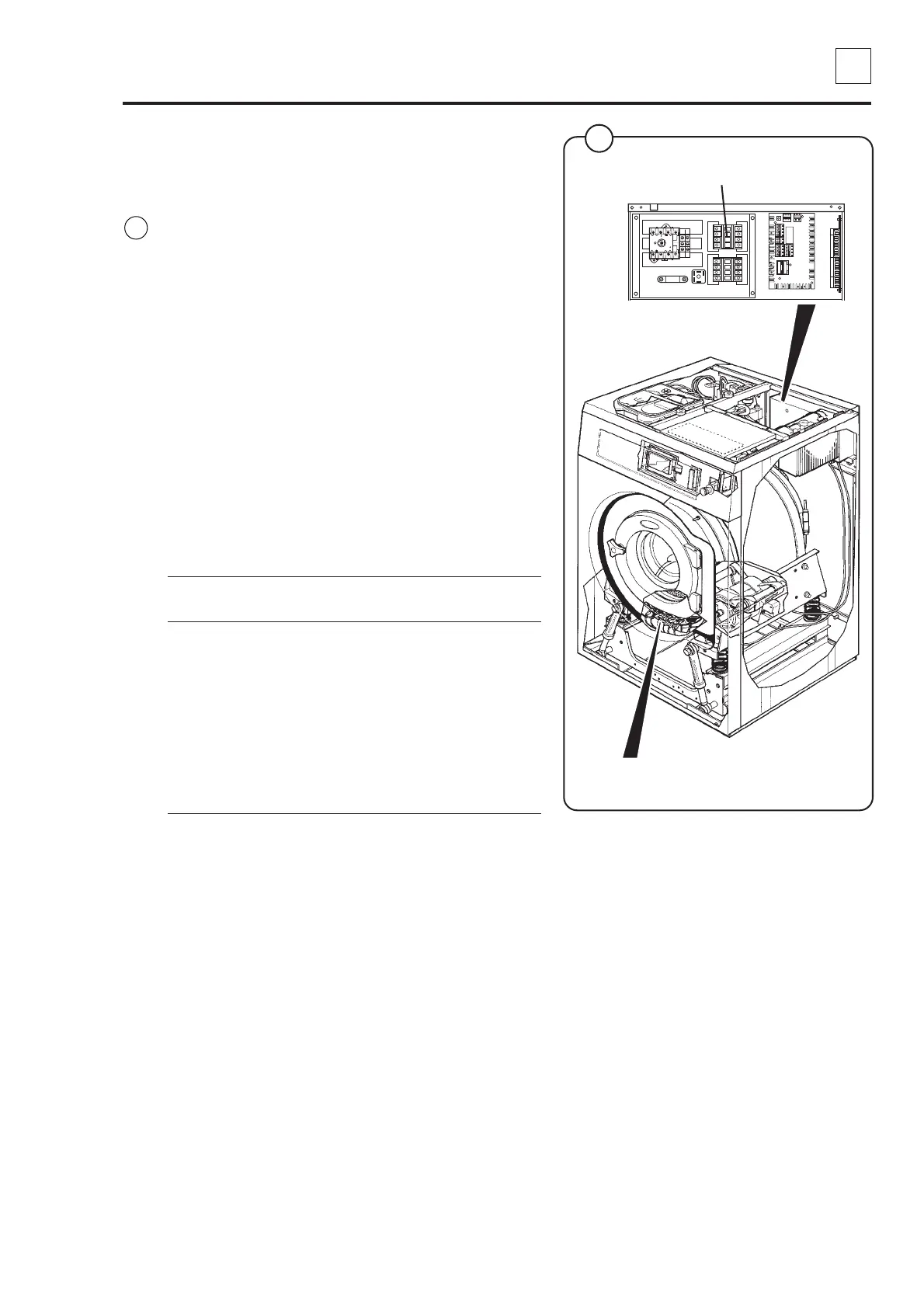

Heating element and
temperature sensor
5207
Heating contactor
5365
1
Fig.
1
