13
30
30. Motor and motor control
438 9145-81/07
06.42
Service
Manual
Description
W365H, W375H
from machine No. 520/22807–
and 520/19487-19548
W3105H from machine No. 595/9041–
W3130H from machine No. 650/14355–
W3180H from machine No. 725/7909–
W3240H from machine No. 795/3770–
W3300H

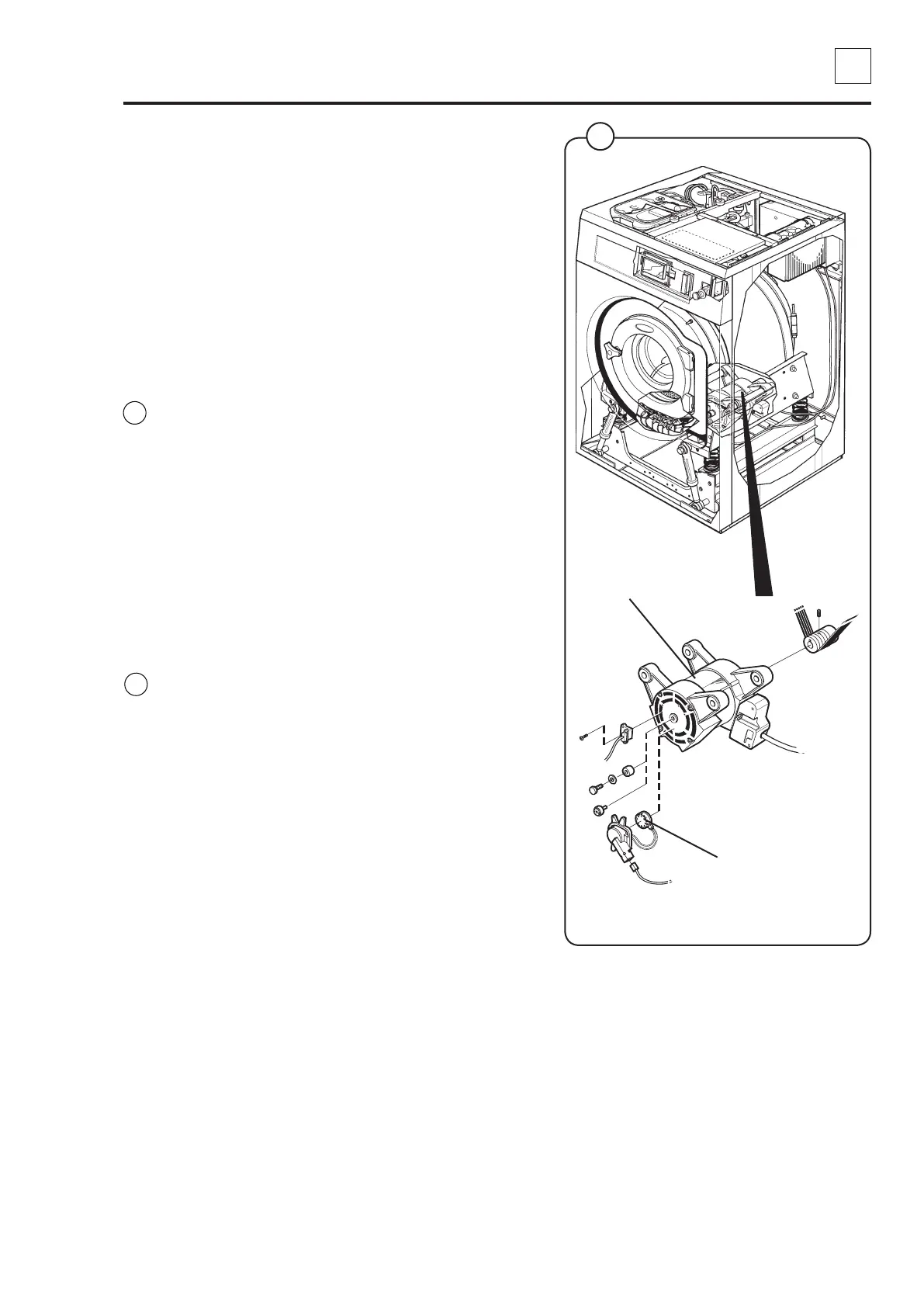

Motor
The motor is fitted in a bridge carrier under the
outer drum. It drives the washing drum using a
drive belt.
The motor is frequency-controlled and is con
-
trolled by microcomputer control. The vari
-
ous speeds for normal operation, distribution
speeds and extraction as well as acceleration/
retardation can be controlled with a high degree
of precision.
The motor winding is protected against overlo
-
ads using a thermal overheating protector that
is automatically reset.
The motor is connected directly to the motor
control via a cable with quick connectors.
5207 5934
Fig.
13
Fig.
13
13
Motor
Rotation sensor B3
(tacho)
